Installation Manual

INSTALLATION WALKTHROUGH:
For more information log onto www.curtmfg.com, & for helpful towing tips log onto www.hitchinfo.com
Parts List
DESCRIPTION
PART NUMBER
QTY
ITEM
CARRIAGE BOLT1/2-13 x 1 1/2
41
.250 x 1.00 x 3.00" SQUARE HOLE SPACERCM-SP6
42
HEX FLANGE NUTHFN 121343
1/2" FISHWIRE1_2 FISHWIRE
24
1
2
3
4

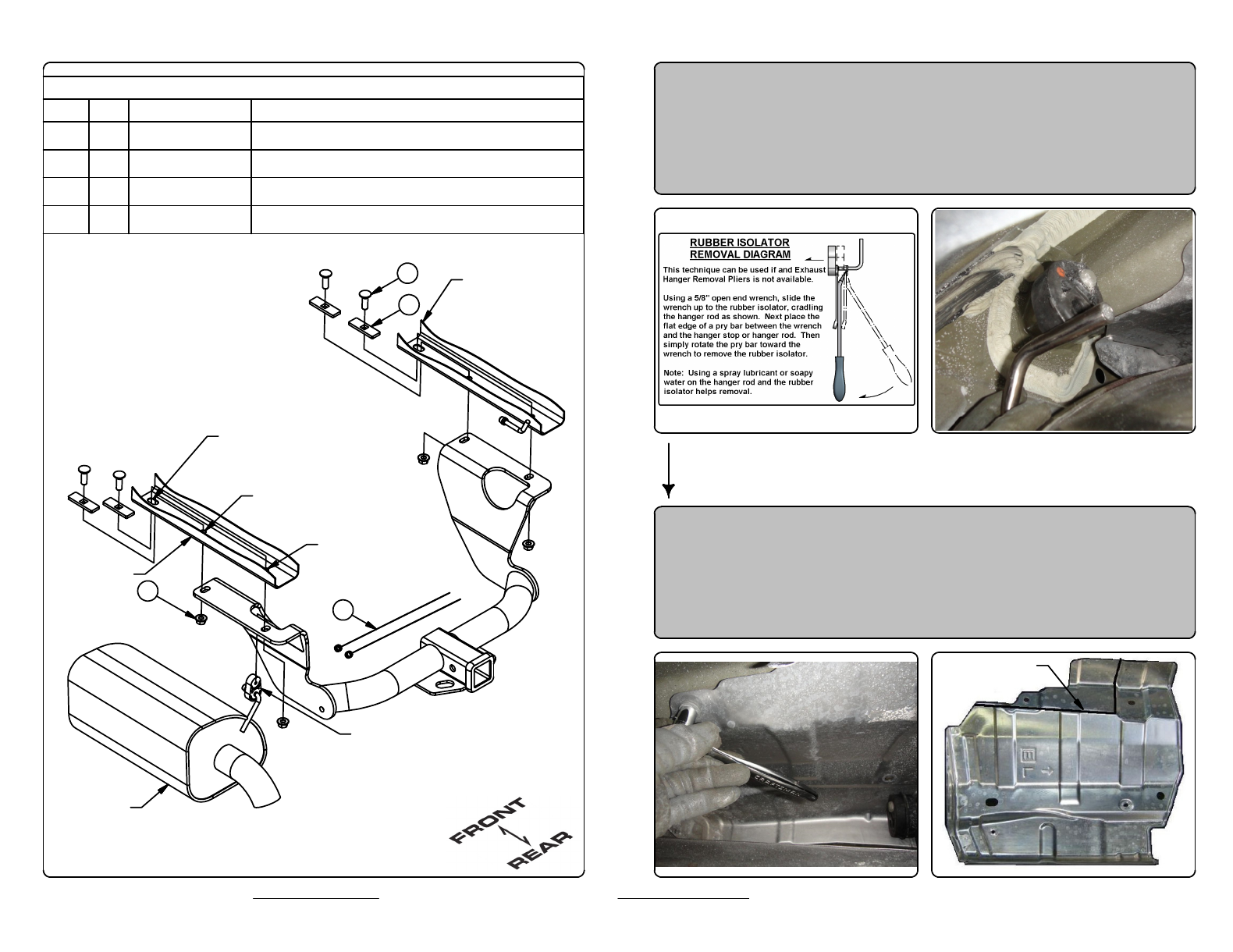

1. Lower the exhaust by removing the (3) rearmost rubber
exhaust isolators from the frame mounted hangers.
Note: Support the exhaust during installation to prevent
damage.
(See Rubber Isolator Removal Diagram.)
2. Remove the muffler heat shield and trim to clear the
mounting plate.
(See Heat Shield Trim Diagram.)
TRIM ALONG
BEND LINE
PASSENGER SIDE
FRAME RAIL
DRILL HOLE
(BOTH SIDES)
ENLARGE
ACCESS HOLE
(BOTH SIDES)
EXISTING HOLE
(BOTH SIDES)
DRIVER SIDE
FRAME RAIL
MUFFLER
EXHAUST ISOLATOR
