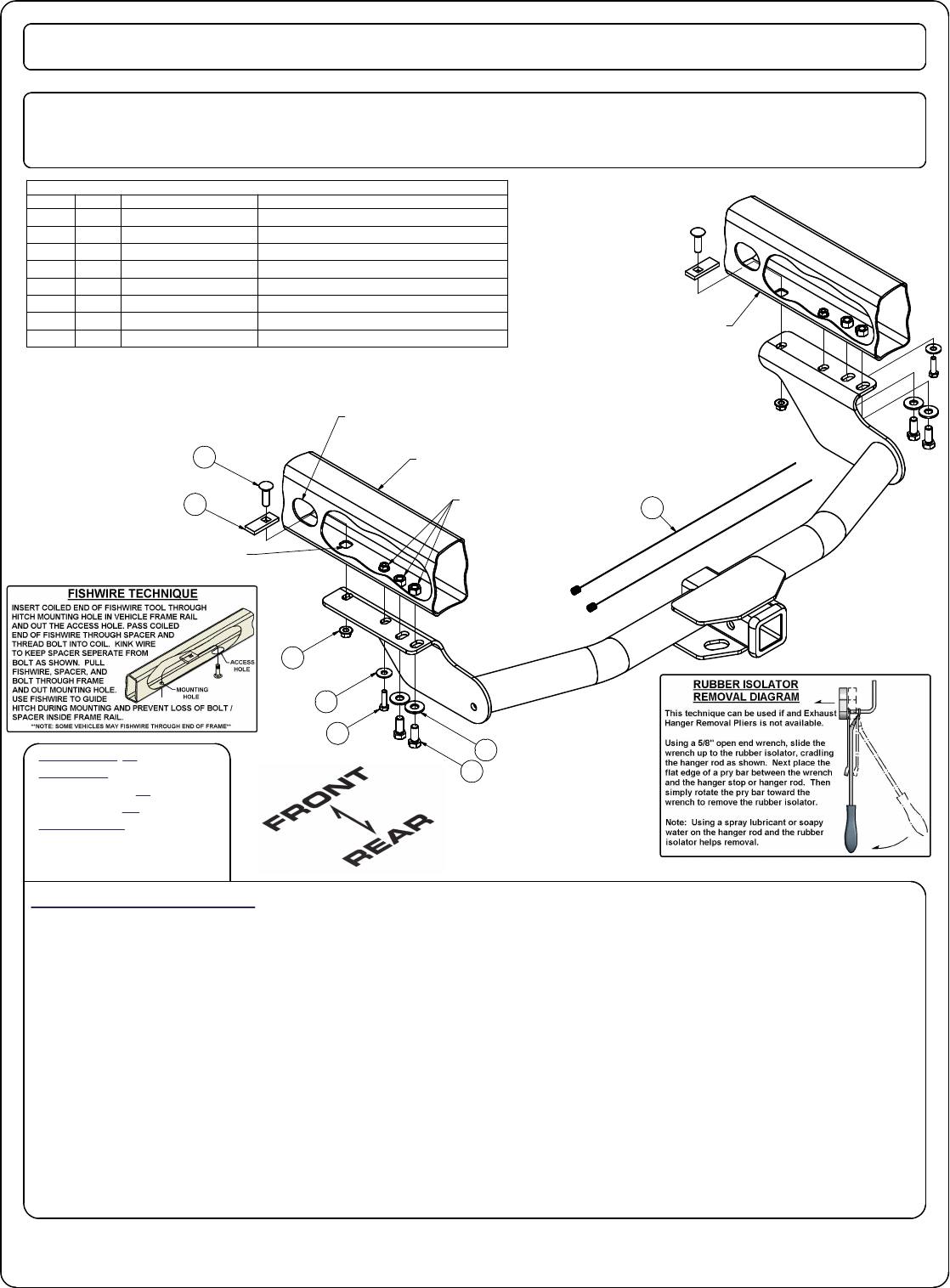

Installation Guide

Parts List
DESCRIPTION
PART NUMBER
QTY
ITEM
BOLT,CAR,7/16-14 UNC,1-1/2,GRD8,YZ10-1028221
HHCS,M12x1.25,30,CL10.9,YZ10-1041942
HHCS,M8x1.25,30,CL10.9,YZ10-1044023
NUT,SER-FLANGE,7/16-14 UNC,GRD8,YZ
20-0010324
WASHER,S-CON,3/8,YZ
30-0014825
WASHER,S-CON,1/2,YZ30-0014946
.250 x .88 x 2.25" SQUARE HOLE SPACERCM-SP227
7/16" FISHWIRE7_16 FISHWIRE28
GROSS LOAD CAPACITY WHEN USED AS A WEIGHT CARRYING HITCH: LBS. TRAILER WEIGHT & LBS. TONGUE WEIGHT.
GROSS LOAD CAPACITY WHEN USED AS A WEIGHT DISTRIBUTION HITCH: LBS. TRAILER WEIGHT & LBS. TONGUE WEIGHT
***DO NOT EXCEED VEHICLE MANUFACTURER'S RECOMMENDED TOWING CAPACITY.***
HAVING INSTALLATION QUESTIONS? CALL TECHNICAL SUPPORT AT
1-877-287-8634
INSTALLATION STEPS
PERIODICALLY CHECK THIS RECEIVER HITCH TO ENSURE THAT ALL FASTENERS
ARE TIGHT AND THAT ALL STRUCTURAL COMPONENTS ARE SOUND.
Curt Manufacturing Inc., warrants this product to be free of defects in material and/or workmanship at the time of retail purchase by the original purchaser. If the product is found to be defective,
Curt Manufacturing Inc., may repair or replace the product, at their option, when the product is returned, prepaid, with proof of purchase. Alteration to, misuse of, or improper installation of
this product voids the warranty. Curt Manufacturing Inc.'s liability is limited to repair or replacement of products found to be defective, and specifically excludes liability for incidental or
consequential loss or damage.
5000 500
6000 600
TOYOTA FJ CRUISER
08/06/2020
13367
70
32
35
HITCH WEIGHT: LBS.
INSTALL TIME
PROFESSIONAL: MINUTES
NOVICE (DIY): MINUTES
INSTALL NOTES:
78215 / 757367
1) Remove tow hook(s) if present, and return to owner.
2) Lower exhaust, (temporarily lowering the (3) rearmost exhaust hangers will provide enough clearance
for bolt installation.)
3) Raise hitch into position, with passenger side plate above exhaust pipe. Loosely install the 12MM hex
bolts into the existing weldnuts in frame rails.
4) Fishwire the 7/16" carriage bolts and square hole spacers into position using the existing access holes as
shown. Install remaining M8 fasteners.
5) Torque all M8 fasteners to 23 lb-ft, all 7/16" fasteners to 59 lb-ft, and all M12 fasteners to 86 lb-ft.
6) Re-install exhaust hangers to original position.
- NO DRILLING REQUIRED
- FISHWIRE REQUIRED
1
7
4
6
2
8
3
5
DRIVER SIDE
FRAME RAIL
PASSENGER SIDE
FRAME RAIL
EXISTING WELDNUTS
(BOTH SIDES)
ACCESS SLOT
(BOTH SIDES)
FISHWIRE BOLT THROUGH
EXISTING SQUARE HOLE
(BOTH SIDES)
