Installation Guide

INSTALLATION WALKTHROUGH:

For more information log onto www.curtmfg.com

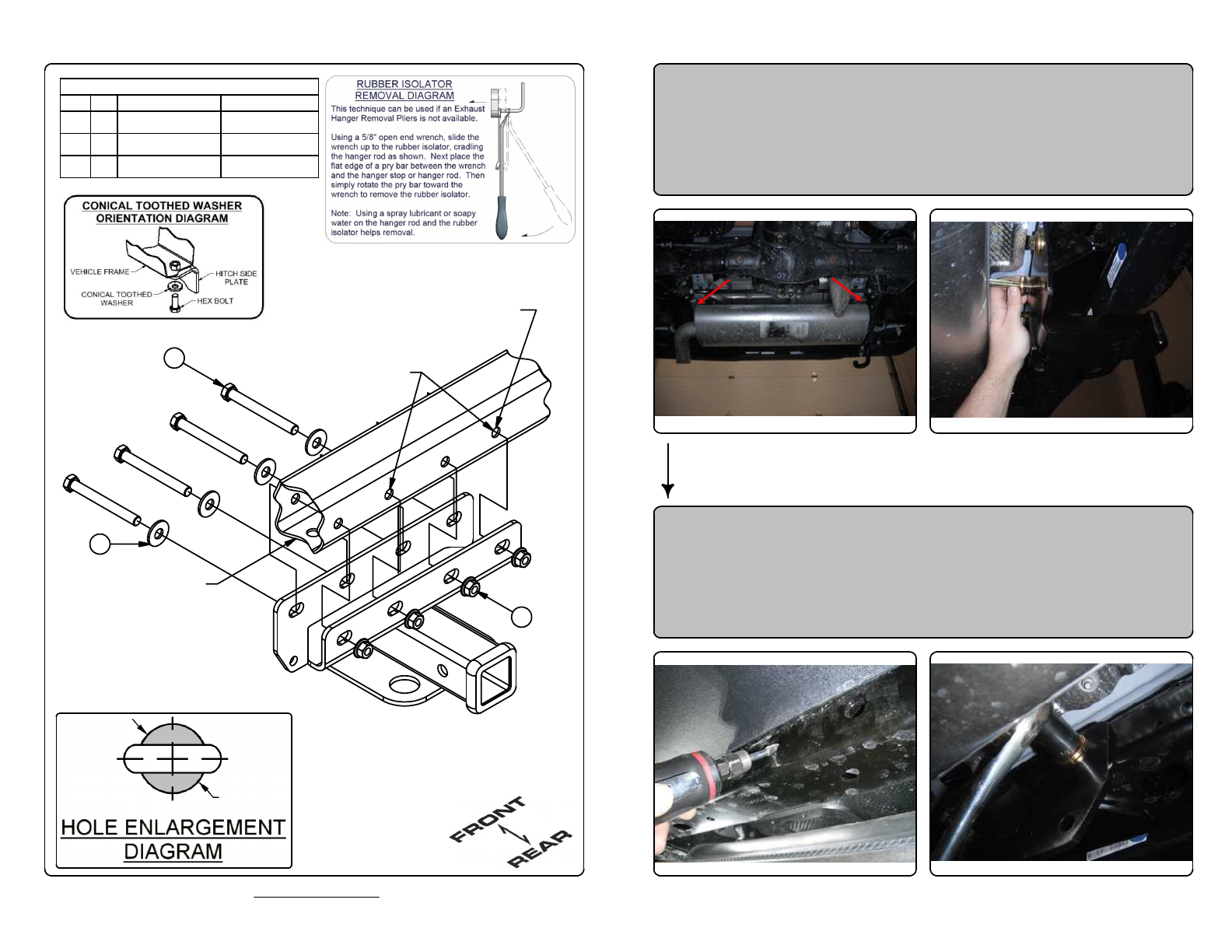

Parts List

DESCRIPTIONPART NUMBERQTYITEM

HEX BOLT1_2 - 13 x 4 1_2 HEX41

FW, 12, ZPFW1242

HEX FLANGE NUTHFN 121343

BUMPER BEAM

EXISTING HOLES IN

BUMPER BEAM

ENLARGE HOLES

(AS NEEDED)

.531"Ø

1) Detach the muffler from the rubber muffler hanger and lower the exhaust

for ease of installation.

2) Position the hitch over the bumper beam and align the holes of the hitch

with holes in the cross member.

NOTE: Some models may have existing bolts attaching a plate with weldnuts on it. The hitch will need to be

slid inbetween the bracket and the mounting tube witht he factory hardware reinstalled, securing the hitch.

3) Insert fasteners as shown making sure the flange nuts are installed on

the exterior side of the hitch. Some models may require hole

enlargement.

4) Torque all 1/2" fasteners to 110 lb-ft.
