Installation Guide

Parts List
DESCRIPTIONPART NUMBERQTYITEM
HHCS,1/2-13 UNC,4-1/2,GRD8,YZ10-10413
4
1
WASHER,FLAT,1/2,YZ30-0013342
NUT, SER-FLANGE,1/2-13 UNC,GRD8,YZ20-0006243
GROSS LOAD CAPACITY WHEN USED AS A WEIGHT CARRYING HITCH: LBS. TRAILER WEIGHT & LBS. TONGUE WEIGHT.
GROSS LOAD CAPACITY WHEN USED AS A WEIGHT DISTRIBUTION HITCH: LBS. TRAILER WEIGHT & LBS. TONGUE WEIGHT
WARNING: *** DO NOT EXCEED VEHICLE MANUFACTURER'S RECOMMENDED TOWING CAPACITY. ***
FOR MORE INFORMATION LOG ONTO WWW.CURTMFG.COM
HAVING INSTALLATION QUESTIONS? CALL TECHNICAL SUPPORT AT 1-877-287-8634
INSTALLATION STEPS
PERIODICALLY CHECK THIS RECEIVER HITCH TO ENSURE THAT ALL FASTENERS
ARE TIGHT AND THAT ALL STRUCTURAL COMPONENTS ARE SOUND.
CURT Manufacturing LLC., warrants this product to be free of defects in material and/or workmanship at the time of retail purchase by the original purchaser.
If the product is found to be defective, CURT Manufacturing LLC., may repair or replace the product, at their option, when the product is returned, prepaid,
with proof of purchase. Alteration to, misuse of, or improper installation of this product voids the warranty. CURT Manufacturing LLC.'s liability is limited to
repair or replacement of products found to be defective, and specifically excludes liability for incidental or consequential loss or damage.
This product complies with safety specifications and requirements for connecting devices and towing systems of the state of New York, V.E.S.C.Regulation V-5 and SAE J684.
3500 350
4000 400
JEEP WRANGLER
6/11/2018
13392
35
15
20
HITCH WEIGHT: LBS.
INSTALL TIME
PROFESSIONAL: MINUTES
NOVICE (DIY): MINUTES
INSTALL NOTES:
Scan
for more
information
1) Detach the muffler from the rubber muffler hanger and lower the exhaust for ease of installation.
2) Position the hitch over the bumper beam and align the holes of the hitch with holes in the cross member.
Note: Some models may have existing bolts attaching a plate with weldnuts on it. The hitch will need to be slid
in between the bracket and the mounting tube with the factory hardware reinstalled, securing the hitch.

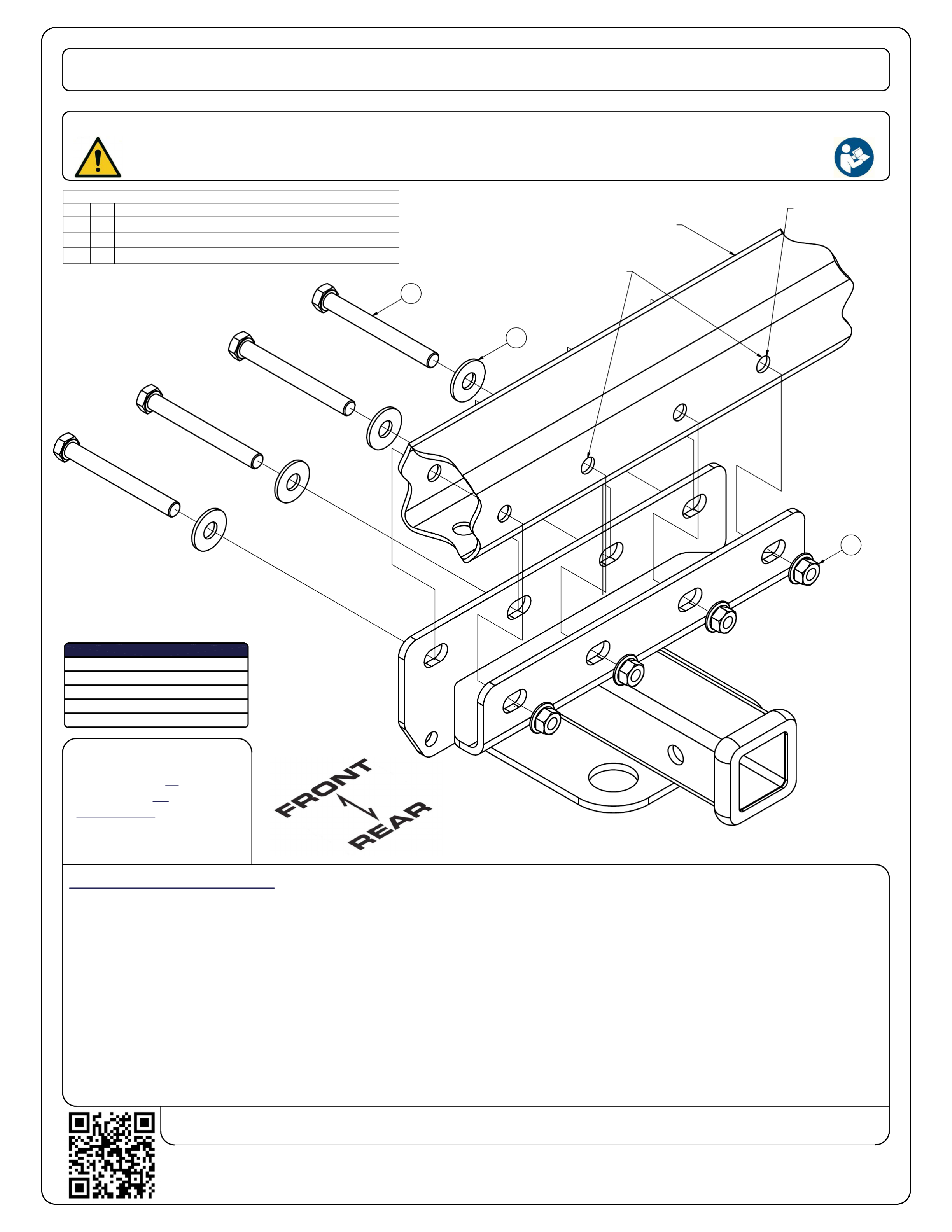

3) Insert fasteners as shown making sure the flange nuts are installed on the exterior side of the hitch. Some
models may require hole enlargement.
4) Torque all 1/2" fasteners to 110 lb-ft.
1
2
3
BUMPER BEAM
EXISTING HOLES
IN BUMPER BEAM
-NO DRILLING REQUIRED
-LOWER EXHAUST
-MAY REQUIRE HOLE ENLARGMENT
ENLARGE HOLES
(AS NEEDED)
TOOLS REQUIRED
RATCHET
3/4" SOCKET
TORQUE WRENCH
DIE GRINDER
SAFETY GLASSES
