Installation Guide

GROSS LOAD CAPACITY WHEN USED AS A WEIGHT CARRYING HITCH: LBS. TRAILER WEIGHT & LBS. TONGUE WEIGHT.
GROSS LOAD CAPACITY WHEN USED AS A WEIGHT DISTRIBUTION HITCH: LBS. TRAILER WEIGHT & LBS. TONGUE WEIGHT
***DO NOT EXCEED VEHICLE MANUFACTURER'S RECOMMENDED TOWING CAPACITY.***
HITCH WEIGHT: LBS.
INSTALL TIME:
MINUTES
INSTALL NOTES:
INSTALLATION STEPS
PERIODICALLY CHECK THIS RECEIVER HITCH TO ENSURE THAT ALL FASTENERS
ARE TIGHT AND THAT ALL STRUCTURAL COMPONENTS ARE SOUND.
Curt Manufacturing Inc., warrants this product to be free of defects in material and/or workmanship at the time of retail purchase by the original purchaser. If the product is found to be defective,
Curt Manufacturing Inc., may repair or replace the product, at their option, when the product is returned, prepaid, with proof of purchase. Alteration to, misuse of, or improper installation of
this product voids the warranty. Curt Manufacturing Inc.'s liability is limited to repair or replacement of products found to be defective, and specifically excludes liability for incidental or
consequential loss or damage.
10,000
1,000
36
30
12,000
1,200
14360 FORD F-150
Parts List
DESCRIPTIONPART NUMBERQTYITEM
NUT, SER-FLANGE,1/2-13 UNC,GRD8,YZ20-0006241
BOLT,CAR,1/2-13 UNC,1-1/4,GRD8,YZ10-10278
4
2
HHCS,5/8-11 UNC,1-1/2,GRD8
10-1003823
WASHER,FLAT,5/8,YZ
30-0013124
NUT,SER-FLANGE,5/8-11 UNC,GRD8,YZ
20-0010525
NO DRILLING REQUIRED
NOTE: If necessary, loosen (4) bumper bolts for improved hitch alignment.

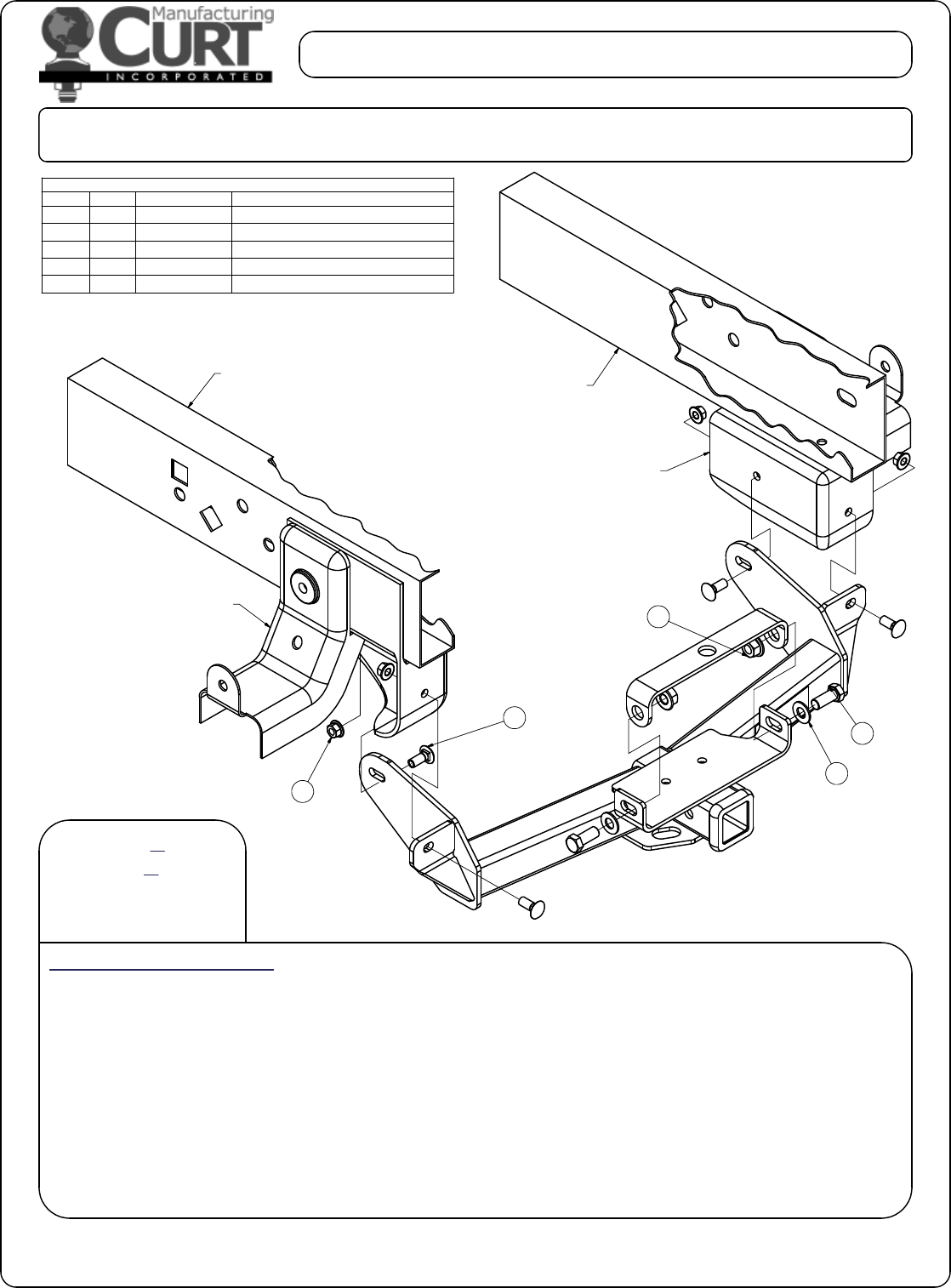

1) Raise hitch into position between frame rails.
2) Install 5/8" fasteners into bumper with loops as shown.
3) Install remaining 1/2" fasteners as shown into each bumper bracket.
4) Torque all 5/8" fasteners to 210 lb-ft and all 1/2" fasteners to 110 lb-ft.
(BUILT AFTER 8/5/2005)
1
2
5
3
4
DRIVER SIDE SPRING STRUT BRACKET
DRIVER SIDE FRAME RAIL
PASSENGER SIDE FRAME RAIL
FORMED BUMPER BRACKET (BOTH SIDES)
8/5/2020
