Installation Guide

GROSS LOAD CAPACITY WHEN USED AS A WEIGHT CARRYING HITCH:
LBS. TRAILER WEIGHT & LBS. TONGUE WEIGHT.
GROSS LOAD CAPACITY WHEN USED AS STRAIGHT LINE PULL:
LBS. MAX. LINE PULL.
DO NOT EXCEED VEHICLE MANUFACTURER'S RECOMMENDED TOWING CAPACITY.***
HITCH WEIGHT: LBS.
INSTALL TIME: MINUTES
INSTALL NOTES:
INSTALLATION STEPS
PERIODICALLY CHECK THIS RECEIVER HITCH TO ENSURE THAT ALL FASTENERS
ARE TIGHT AND THAT ALL STRUCTURAL COMPONENTS ARE SOUND.
Curt Manufacturing Inc., warrants this product to be free of defects in material and/or workmanship at the time of retail purchase by the original purchaser. If the product is found to be defective,
Curt Manufacturing Inc., may repair or replace the product, at their option, when the product is returned, prepaid, with proof of purchase. Alteration to, misuse of, or improper installation of
this product voids the warranty. Curt Manufacturing Inc.'s liability is limited to repair or replacement of products found to be defective, and specifically excludes liability for incidental or
consequential loss or damage.
3500
350
24
30
9000
31408 JEEP WRANGLER YJ / TJ
Parts List
DESCRIPTION
PART NUMBER
QTY
ITEM
HHCS,1/2-13 UNC,2,GRD8,YZ
10-1028621
HHCS,1/2-13 UNC,1-1/2,GRD8,YZ10-1033422
HHCS,M10x1.5,50,CL10.9,YZ10-1049023
WASHER,FLAT,1/2,YZ30-0013344
WASHER,S-CON,1/2,YZ30-001494
5
WASHER, S-CON,7/16,YZ30-0016326
.250 x 1.50 x 2.00" SQUARE HOLE SPACERCM-SP3327
1) Remove plastic shield between bumper and grill by removing the (4) mounting bolts.
2) Remove (2) Torx bolts (4 if vehicle is equipped with tow hooks) from the bumper, discard bolts and return
tow hooks to customer.
3) Remove the front two bolts holding the sway bar to the frame and discard.

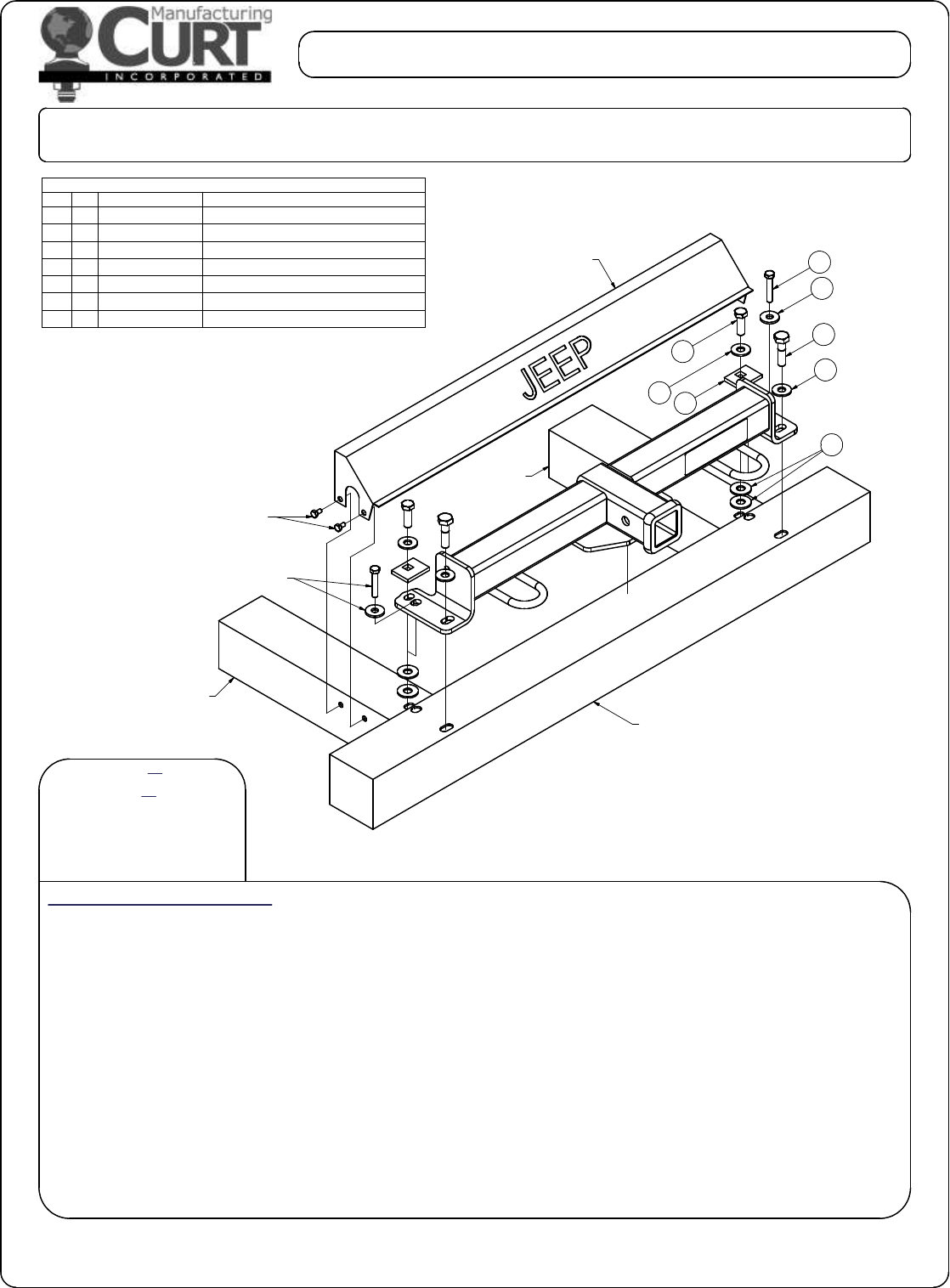

4) Position hitch on the front bumper and secure with hardware provided as shown.
5) Torque all 1/2" fasteners to 110 lb-ft and all 10mm fasteners to 45 lb-ft.
6) Reinstall plastic shield removed in step 1.
Note: Shield may require trimming, consult customer before cutting.
NO DRILLING REQUIRED
REMOVE TOW HOOKS
2
5
7
3
6
1
5
4
FRONT BUMPER
EXISTING BOLTS
FRAME RAIL
PLASTIC SHIELD
FRAME RAIL
USED ONLY ON
TJ MODELS
M10 BOLTS USED ONLY ON TJ MODELS
07/07/2020
