Installation Guide

If copying/pasting, eye-drop this text to

ensure a uniform look for all installation

paragraphs.

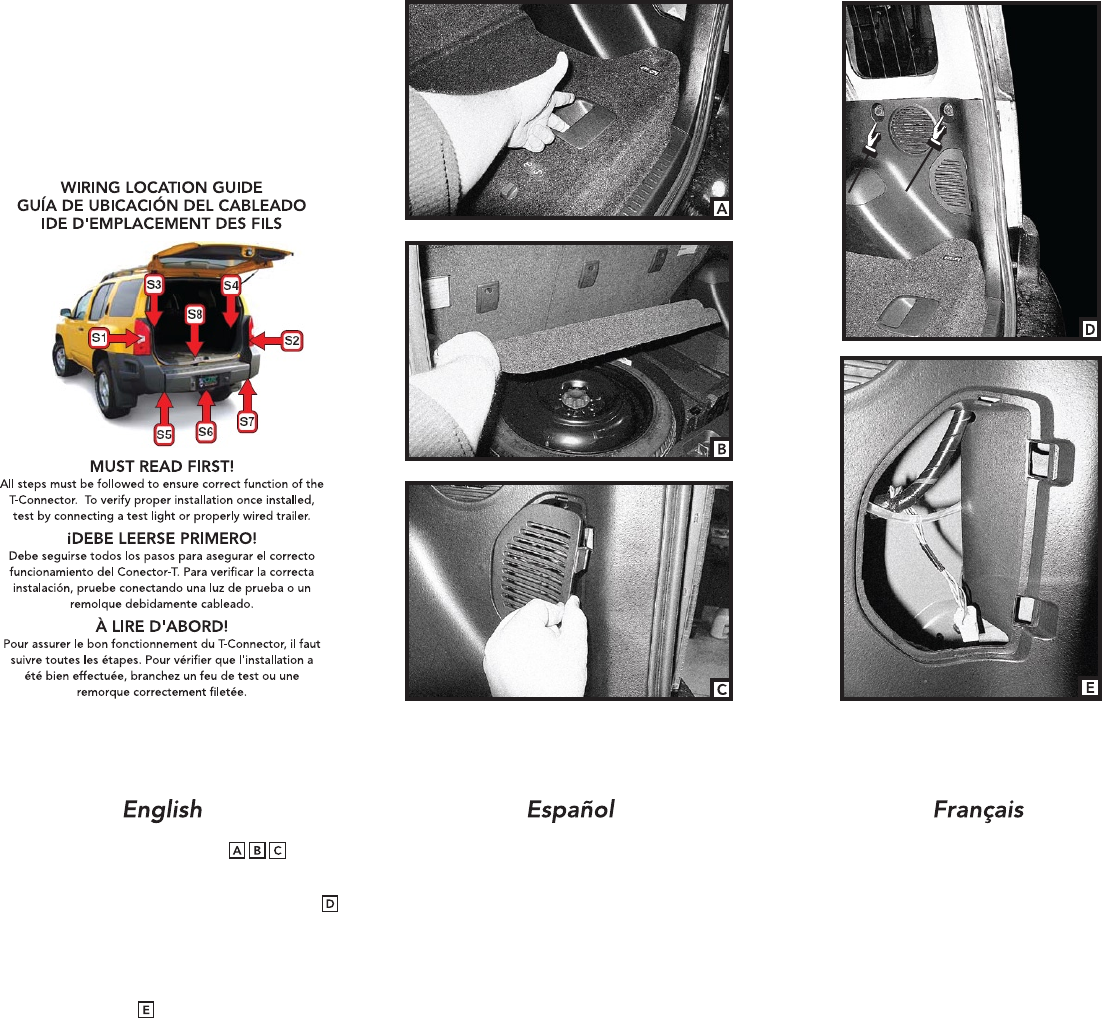

1. Open rear hatch. Temporarily remove the rear threshold

plate, storage covers and oor covering.

2. Partially remove the rear interior trim panels on both the

driver and passenger side of the vehicle. Several trim panel

fasteners will need to be removed to remove the panels.

3. On the driver and passenger sides of the vehicle, locate

the vehicle's taillight wiring harness. The taillight wiring

harnesses will have a connection point, matching the ends

of the T-Connector. Separate this connector, being careful

not to break the locking tabs. All connector surfaces should

be clean and free of dirt.

4. Starting on the passenger side, insert the T-Connector end

with the green wire between the vehicle wiring connectors

and lock into place. Be careful not to damage the locking

tabs and be sure that connectors are fully inserted with

locking tabs in place.

5. Route the T-Connector end with the yellow wire to the

driver’s side behind the panels and along the threshold.

Repeat Step 4 using T-Connector containing the yellow wire.

6. Locate a suitable grounding point near the connector. Drill

a 3/32" hole and secure white wire with eyelet using screw

provided or on the passenger side, locate an existing ground

stud. Loosen bolt, place screw eyelet on stud and re-tighten

bolt.

7. On passenger side, mount the T-Connector black

converter box in a out of the way place with the double-

sided tape provided and secure all loose wires with cable

ties. Secure the remainder of the T-connector harness with

the cable ties provided, to prevent damage or rattling and

being careful to avoid any areas that would cut or pinch the

wire.

8. Reinstall the plastic trim panels, threshold, storage covers,

oor covering and other items removed during installation,

being careful not to pinch or cut the wires.

Warning!

Verify that miscellaneous items that may be hidden

behind or under any surface before drilling to avoid

damage and/ or personal injury.

10/23/08

56030

SCION XB

PAGE 1
56030 SCION XB 10/23/08 1. Open rear hatch. Temporarily remove the rear threshold plate, storage covers and floor covering. a 2. Partially remove the rear interior trim panels on both the driver and passenger side of the vehicle. Several trim panel fasteners will need to be removed to remove the panels. 3. On the driver and passenger sides of the vehicle, locate the vehicle's taillight wiring harness. The taillight wiring harnesses will have a connection point, matching the ends of the T-Connector.
