603 Hardware Specifications, REV 2 13
Preliminary—Subject to Change without Notice

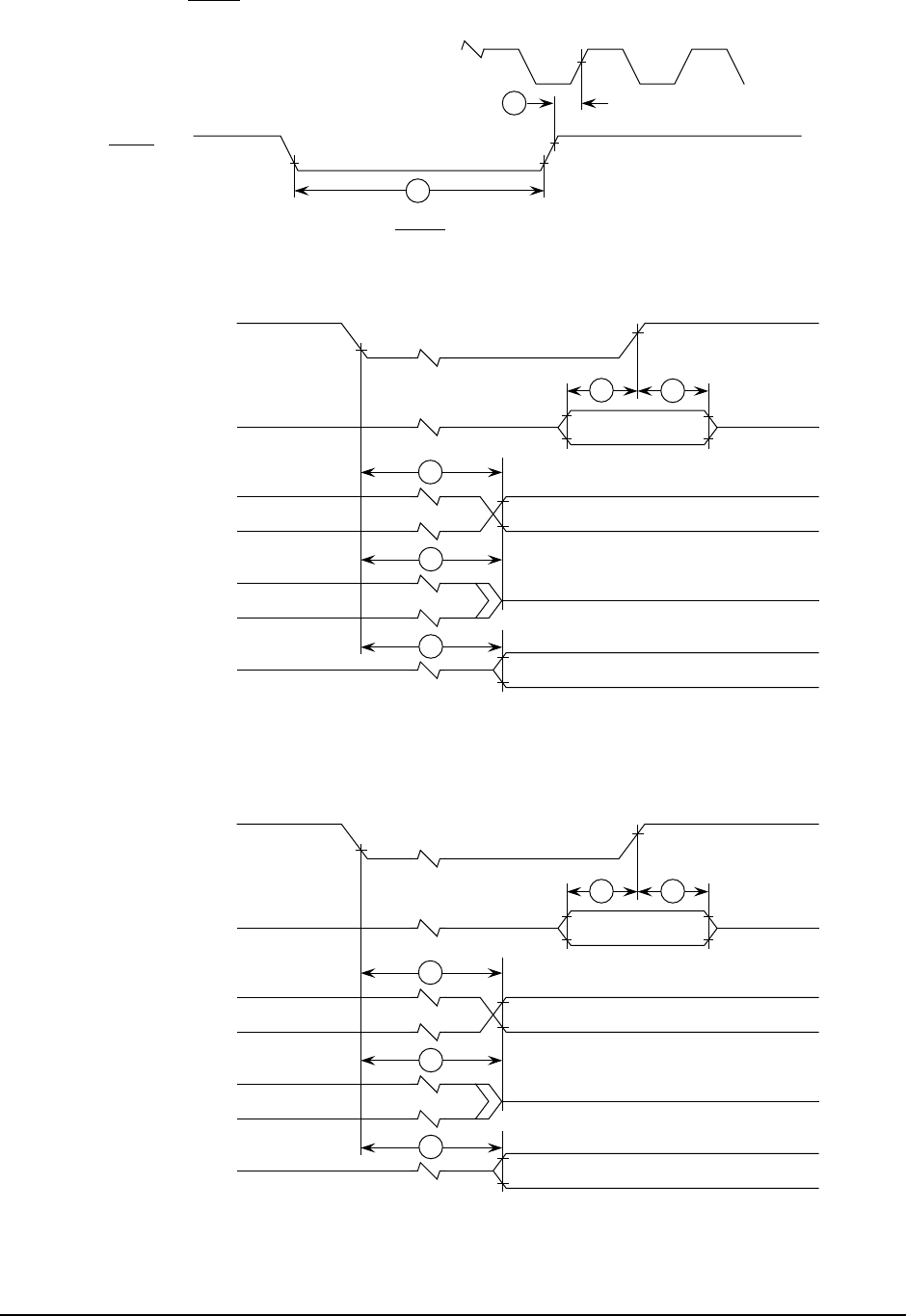

Figure 6 provides the TRST timing diagram.
Figure 6. TRST Timing Diagram
Figure 7 provides the boundary-scan timing diagram.
Figure 7. Boundary-Scan Timing Diagram
Figure 8 provides the test access port timing diagram.
Figure 8. Test Access Port Timing Diagram
4
5
TRST
TCK
6
7
Input Data Valid
8
9
8
Output Data Valid
Output Data Valid
TCK
Data Inputs
Data Outputs
Data Outputs
Data Outputs
10
11
Input Data Valid
12
13
12
Output Data Valid
Output Data Valid
TCK
TDI, TMS
TDO
TDO
TDO
