CDL-165ETHG ETHERNET/USB to HDMI/ VGA Display Converter Operation Manual CDL-165ETHG
Disclaimers The information in this manual has been carefully checked and is believed to be accurate. Cypress Technology assumes no responsibility for any infringements of patents or other rights of third parties which may result from its use. Cypress Technology assumes no responsibility for any inaccuracies that may be contained in this document. Cypress also makes no commitment to update or to keep current the information contained in this document.
Safety Precautions Please read all instructions before attempting to unpack or install or operate this equipment, and before connecting the power supply. Please keep the following in mind as you unpack and install this equipment: Always follow basic safety precautions to reduce the risk of fire, electrical shock and injury to persons. To prevent fire or shock hazard, do not expose the unit to rain, moisture or install this product near water.
Table of Contents 1. Introduction 1 2. Applications 1 3. Package Contents 1 4. System Requirements 1 5. Features 2 6. Specifications 3 7. Operation Controls and Functions 4 7.1 Front Panel 4 7.2 Back Panel 5 8. 9. Software Installation 6 8.1 Install DispalyLink Software 6 8.2 Install USB Server Software 6 8.3 Using USB Server 7 8.4 IP Property Setting 8 Using DisplayLink Manager 11 9.1 Using DisplayLink Manager 11 9.2 Using More DisplayLink manager 15 10.
1. Introduction The device that can send audio/video signals from a Notebook/PC over a localarea network through regular Ethernet cables to a TV which can be used as the primary display. When a keyboard and mouse are plugged in, the device will lets you to edit word processing documents and play your music/movies on a TV.
5.
6. Specifications Video Resolution Video Input Network Protocol Video Output Ports Extender Ports Audio Output Operating System Support Power Supply ESD Protection Dimensions (mm) Weight(g) Chassis Material Silkscreen Color Power Consumption Operating Temperature Storage Temperature Relative Humidity Up to 1600 x 1200 /1920 x 1080 (wide) 1 x Ethernet RJ-45; 1 x USB 2.0 TCP/IP 1 x HDMI, 1 x D-Sub 15pin VGA 2 x USB Hubs (A type) 1Vp-p 47KΩ 3.5Ø Phone jack Windows, XP SP2, Vista 32bits and Window 7 5V DC/2.
7. Operation Controls and Functions The following sections describe the hardware components of the unit, include a step by step installation guide and other suggested settings. 7.1 Front Panel 1 2 3 4 5 ① DC 5V: This slot is where you plug the 5V DC power supply into the unit and connect the adaptor included in the package to an AC wall outlet. ② INPUT LAN/USB Switch: This switch allows users to choose input source signal from ethernet or PC/laptop.

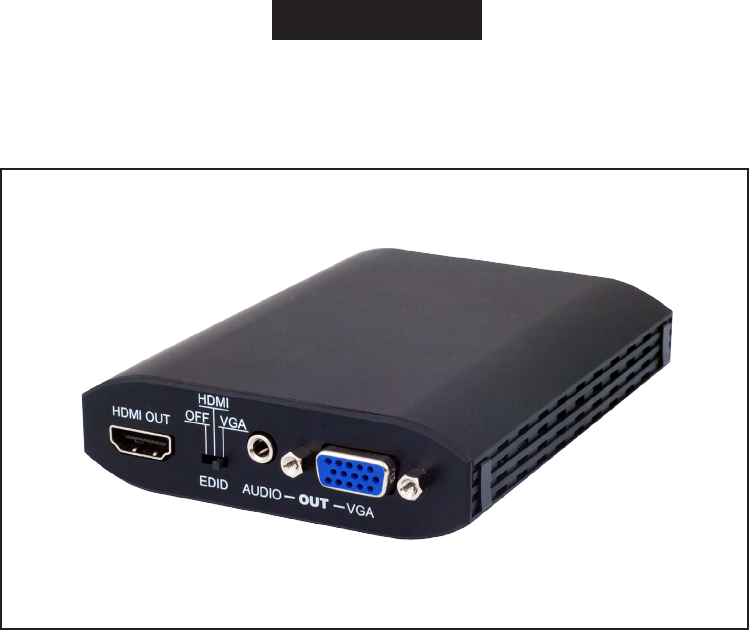

7.2 Back Panel 1 2 3 4 HDMI OUT: This slot is to plug the output HDMI display with HDMI cable for video and audio output. ② EDID control switch: The default setting for this switch is on HDMI, leave the switch here as long as the connected display is compatible. When switch to off it'll allows users to use the built in EDID, the device must re-powered in order to execute this function. However, from off to HDMI/VGA will not require such action.
8. Software Installation The following sections list the procedures to follow when installing the USB to HDMI and USB device drivers. Insert the provided CD into your CD-ROM drive, then begin the USB Install Disc and follow the below steps to install the driver. 8.1 Install DispalyLink Software Insert the CD driver included in the package and double click on the DisplayLink icon to execute the setup. 8.
When both DisplayLink and USBServer has been installed completely the USB Server’s icon should appear on the desktop and the button right side of the desktop. 8.3 Using USB Server Double click on the Launch USB Server icon from the desktop or from the button right side and the USB Server window will appear on the desktop. Connect both PC/Laptop and the device with RJ-45 cable and click on Search and switch the INPUT switch on the device to LAN.
8.4 IP Property Setting When selecting LAN INPUT a special IP setting is required. Please follow the setting below to make the correct setting. Click Control Panel from the Window’s start.
Click on the Network and Internet Connection and select Network Connections.
Double click on the Local Area Connection Double click on the Internet Protocol (TCP/IP) Click on “Use the follow IP address” and set the IP address and Subnet mask. The IP address setting should remain at 169.254.10.X (X can be 0~255) and Subnet mask can remain as 255.255.0.
9. Using DisplayLink Manager 9.1 Using DisplayLink Manager After the driver is installed, a utility (DisplayLink Manager) will automatically appear in the system tray. The utility allows you to quickly change the settings and resolution for DisplayLink Manager. Right click on the icon will bring out the context menu. Screen Resolution: Select the screen resolution (available only in extended mode).
Color Quality: Select the screen color quality (available only in extended mode). Screen Rotation: Rotate the screen on the additional monitor by 90, 180 or 270 degrees. Extend to: Reposition the extended screen to the top, bottom, left or right of the primary display.
Extend: Set the DisplayLink Manager to Extended mode. Set as Main Monitor: Set the monitor to be the main monitor. Notebook Monitor off: Set the PC/notebook's monitor off.
Mirror: Set the DisplayLink Manager to Mirror mode. You can see the same desktop image on the additional monitor. Off: Disable the DisplayLink Manager on the system. Advanced: Opening the Display Properties will allow you to adjust the resolution, color quality, position and refresh rate.
9.2 Using More DisplayLink manager You don’t have to install a new driver as long as you have completed the above installation process in advance. It will automatically define the ID of the new Display Link Manager and will list everything in the Display properties or the display manager menu. NOTE: When connecting more DisplayLink Manager to a computer, a system with higher CPU performance is recommended. 10. Uninstall the Device Driver Follow the steps below to uninstall the Multi View driver.
Step 3: Click Yes to confirm the removal. Step 4: Click Yes to restart your computer. Then select DisplayLink Graphics and click Remove. Finally, select USB Server and click Remove.
11.
12. Troubleshooting Situation Check Point The device driver has been installed, but the DisplayLink Manager is not working 1. Make sure you restart your computer after the driver installation. 2. Check all the connectors are plugged in correctly. 3. Make sure the USB port that you are using is USB 2.0. 4. Check the additional monitor is connected correctly and the power is on. 5. Make sure the operating system, the DisplayLink Manager is compatible with Windows XP, Vista (32bit) and Windows 7. 6.
A Acronyms Acronym Complete Term EDID Extended Display Identification Data HDMI High-Definition Multimedia Interface VGA Video Graphics Array 19
