Dimensions Guide

Important: Dacor reserves the right to change specications without notice. Dimensions provided are for reference only. Before installation,
consult the installation instructions accompanying each product prior to selecting cabinetry, making cutouts or starting installation.
www.Dacor.com
Warming Drawer
EWD24SCHModel:
Revised 11/22/10

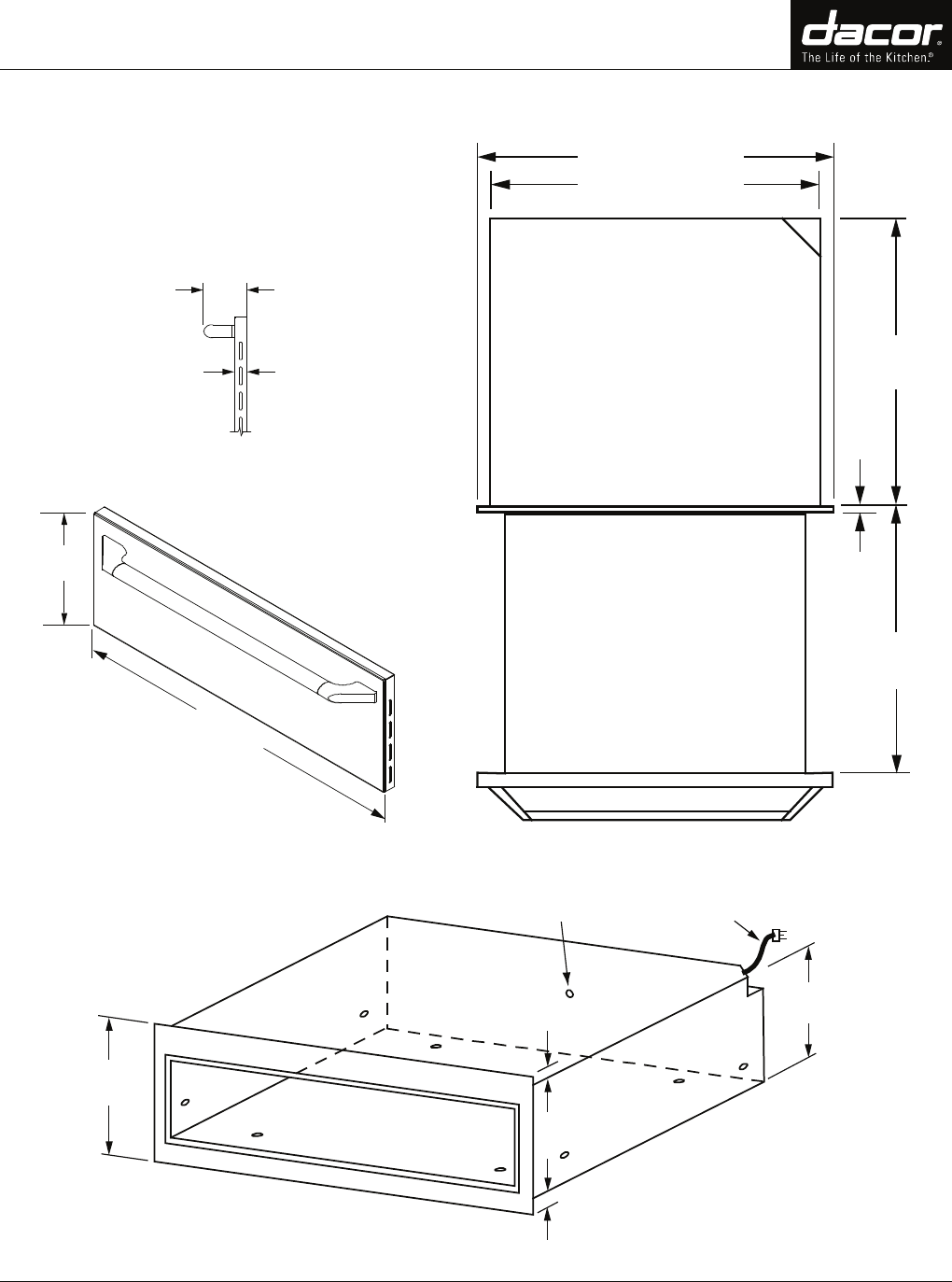

Drawer open
Chassis
5/64"
(2 mm)
23 13/16”
(605 mm)
23 3/8”
(594 mm)
B
C
23 5/8” (600 mm)
22 1/4” (565 mm)
3 7/16"
(87 mm)
EWD
1"
(25 mm)
10"
(254 mm)
9"
(229 mm)
1/2" (13 mm)
1/2" (13 mm)
Chassis without
drawer inserted
Mounting
hole 9 places
40” (1016 mm)
3 prong 120 Vac
power cord
10 1/8"
(257mm)
Handle/Front panel
(side view)
24”
(610 mm)
