Setting 78
4.2.6 Configuring UPnP
Configure UPnP protocols to establish the reflection relation between intranet and external
network. A user can access IP address of external network to visit devices in the intranet.
Preparation
Ensure UPnP network service has been installed to your PC.
Log in the router, and configure WAN IP address to set up internet connection.
Enable UPnP in the router.
Connect your device to the LAN port of the router.
Set IP address of your router as that of your device, or select DHCP to obtain IP address
automatically.
Procedure
Select Setting > Network > UPnP. Step 1
The UPnP interface is displayed. See Figure 4-30.

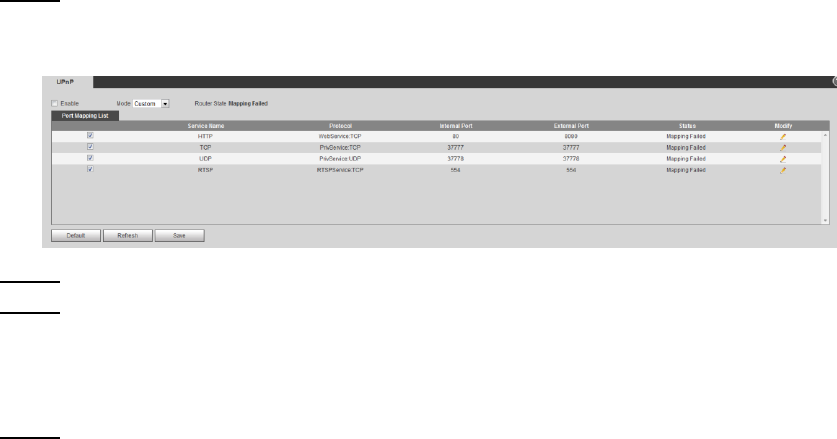

UPnP Figure 4-30
Select the Enable check box. Step 2
Select mode, and service name in the port mapping list. Step 3
UPnP can be classified as custom mode and default mode.
Under custom mode, you can change external ports.
Under default mode, you do not need to change ports and reflection relations.
Click Save to finish configuration. Step 4
Type "http:// (external network IP address): (external port number)" to access devices in
Intranet whose ports correspond to your router.
4.2.7 Configuring SNMP
SNMP (Simple Network Management Protocol) is a basic network management framework.
You need to install certain software to the Device to obtain the Device’s information.
Preparation
Install SNMP monitoring and managing tools such as MIB Builder and MG-SOFT MIB
Browser.
You can contact technical support for the MIB file that matches the current version.
Procedure
