SD112010BT/08-12.01

Danze, Inc., 2500 Internationale Parkway, Woodridge, IL 60517, USA danze.com

Contractor: Contact #:

Job Name: Location:

Submittal Information:

D112010BT D112010BT

SPECIFICATIONS

Warranty

Danze products are covered by a manufacturer’s

limited "lifetime" warranty for manufacturing defects.

Description

• Ceramic disc valve

• With high temperature limit adjustment

• ½" PEX Hot & Cold Inlets

• Round Spine

• Back-to-back installation feature

• Mounting bracket & plaster guard included

• Valve will perform at ASSE 1016 standards

when flow rate is restricted to 2.0gpm

• Rough Brass

Finishes Available

Model

D112010BT

Standards

• CSA B125.1

• ASSE 1016

ASSE

1016

Special Packaging

• Trim kits for this valve are packaged

separately. Fits all Danze single handle

tub/shower & shower only trims

• Model numbers for trim kit items include the

suffix "T"

Flow Rate

• UPC/cUPC

• ASME A112.18.1M/ A112.18.1

MEETS ASME

A112.18.1M/ A112.18.1

GPM

PSI

20 40 60 80

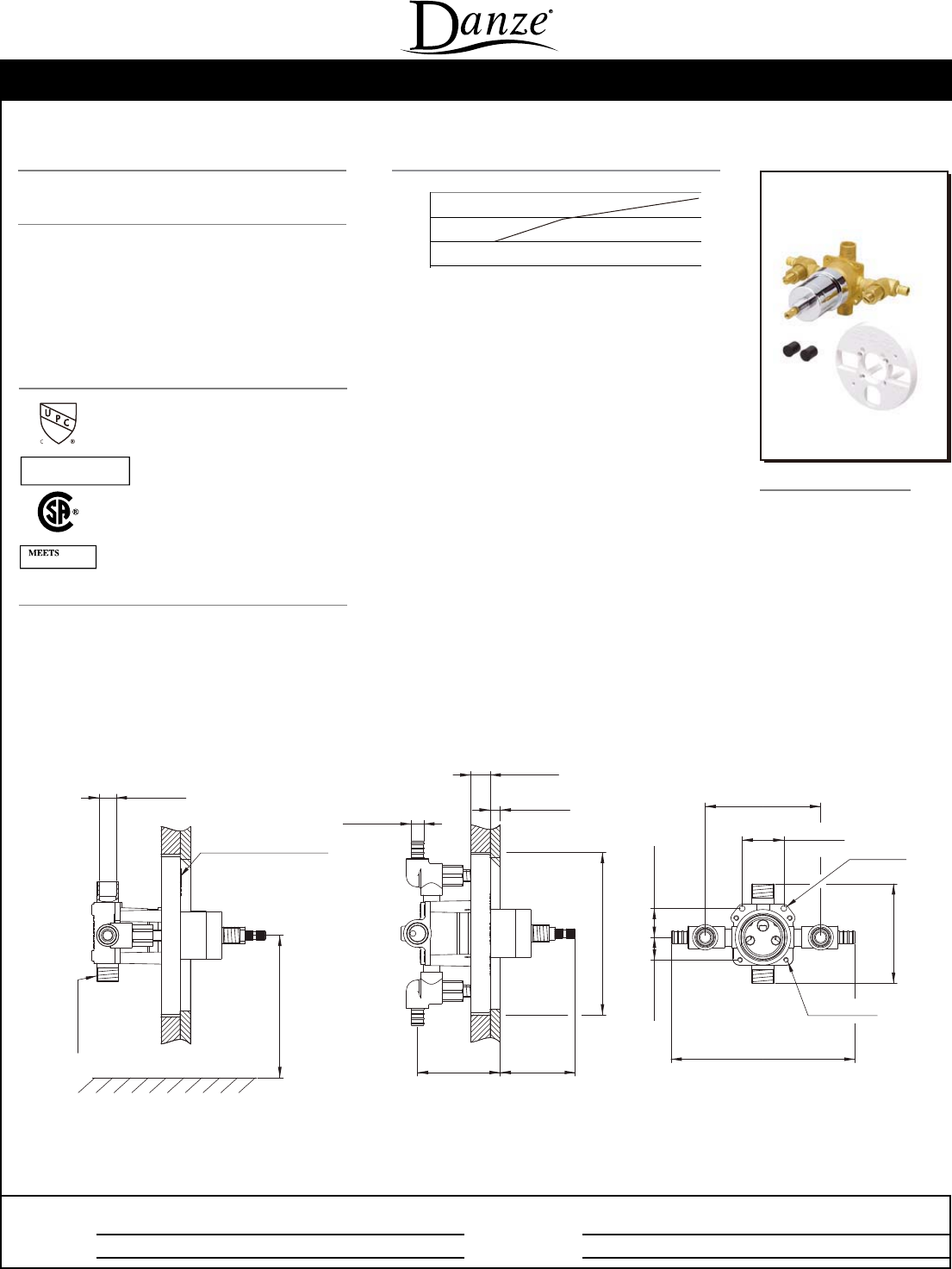

SINGLE CONTROL PRESSURE BALANCE MIXING VALVE WITH SCREWDRIVER STOPS

1/2"-14NPT

(Ø 5mm)

PLASTER GUARD

W3/16"-24

Ø 3/16"

3/8"Max

(10mm)

11/16"

(18mm)

Ø 6"

(

Ø 152mm)

26"

(660mm)

Ø 5/8"

(

Ø 16mm)

3 1/16"

(77mm)

2 3/4"

(70mm)

Ø 1/2"

(

Ø 12mm)

6 3/4"

(172mm)

3 11/16"

(93mm)

1 9/16"

(39mm)

4 1/4"

(108mm)

13/16"

(21mm)

1 1/16"

(27mm)
