IQ3 Data Logger Dash Installation Manual
51
TrackVision Export Runlog Page
This page allows the user to quickly export data from the DataLink software for use in the
TrackVision video software. This is accomplished through the use of our TrackVision Export
Runlog page. This page can be accessed by selecting the Track Vision Export button found on
the Runlog Menu page, under the Favorite Log Page Shortcuts heading.
The TrackVision Export Runlog page enables the user to quickly export a list of standard
TrackVision related data channels. In addition, the user can also create a customized list of data
channels to be exported for use in the TrackVision software.
Exporting pre-defined TrackVision data channels:
4. Open a Runfile that was downloaded utilizing the updated G2X_Config file found in
Version 2.7b or higher of the DataLink software.
5. Select the Run Log Menu Runlog tab at the bottom of the DataLink software.

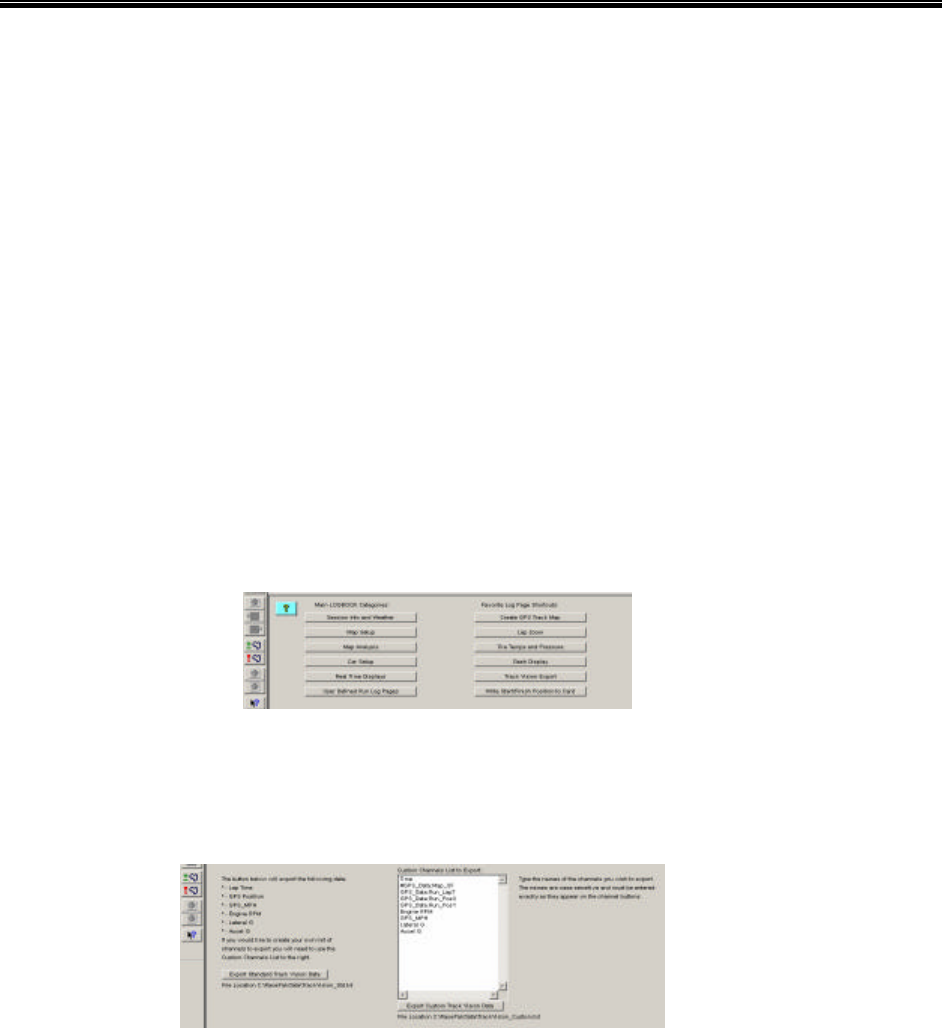

6. Select the Track Vision Export button found under the Favorite Log Page Shortcuts
heading as shown below.
The user is presented with two options:
3. Export Standard TrackVision Data
4. Export Custom TrackVision Data
Exporting Standard TrackVision Data:
4. Select the Export Standard Track Vision Data button.
5. Data is automatically exported to the following file folder location:
C:\RacePakData\TrackVision_Std.csv
6. Data is now saved and ready for use in the TrackVision software.
