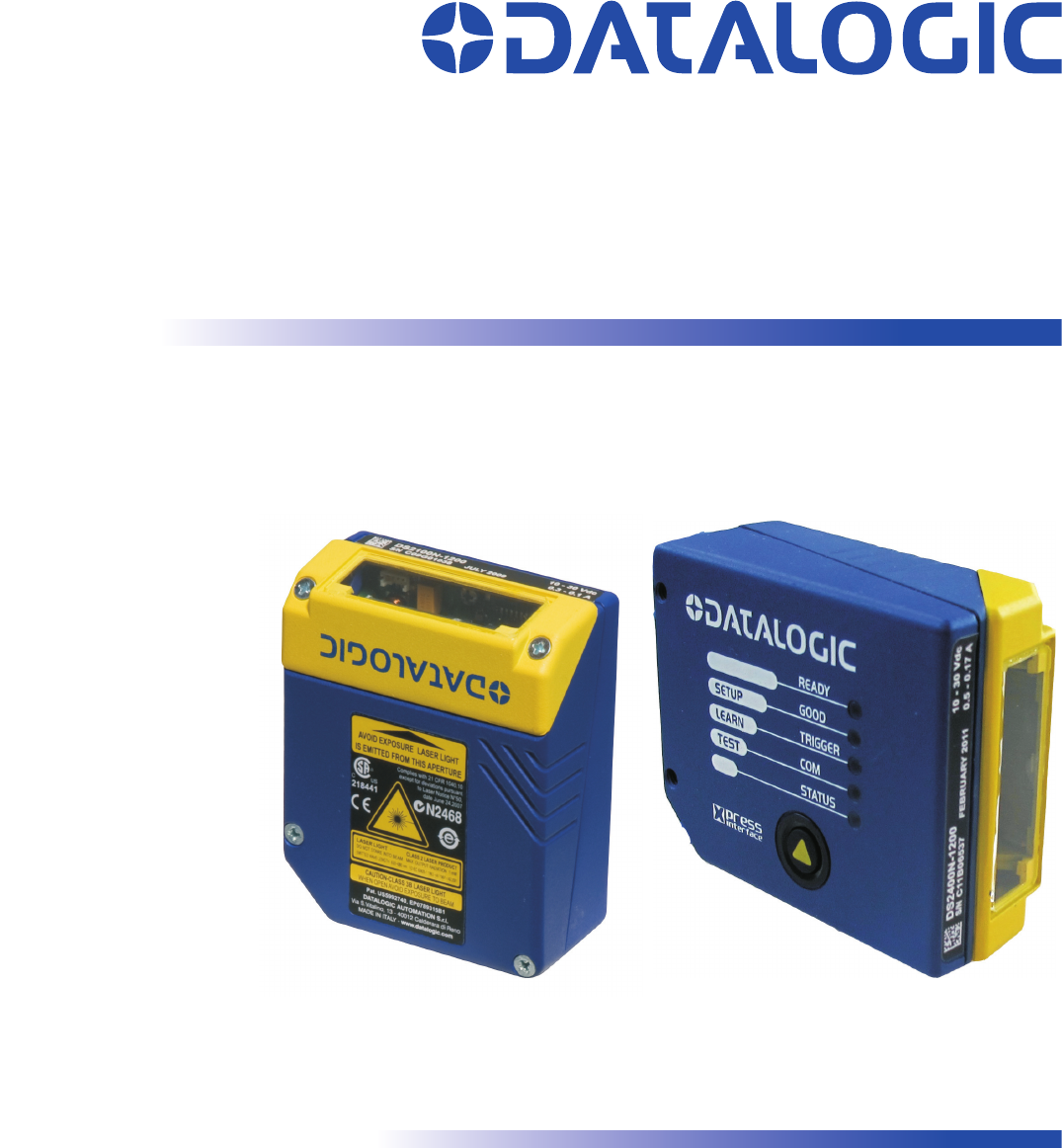

DS2400N Reference Manual
Datalogic Automation Srl Via Lavino, 265 40050 - Monte S. Pietro Bologna - Italy DS2400N Reference Manual Ed.: 01/2013 © 2007 – 2013 Datalogic Automation S.r.l. ALL RIGHTS RESERVED. Protected to the fullest extent under U.S. and international laws. Copying, or altering of this document is prohibited without express written consent from Datalogic Automation S.r.l. Datalogic and the Datalogic logo are registered trademarks of Datalogic S.p.A. in many countries, including the U.S.A. and the E.U.
CONTENTS REFERENCES .............................................................................................................v Conventions.................................................................................................................. v Reference Documentation ............................................................................................ v Services and Support ................................................................................................... v Patents....
.3.1 4.3.2 4.3.3 4.4 4.5 4.5.1 4.6 4.7 ID-NET™ Cables ........................................................................................................43 ID-NET™ Response Time .......................................................................................... 44 ID-NET™ Network Termination .................................................................................. 48 Auxiliary RS232 Interface ...........................................................................................
REFERENCES CONVENTIONS This manual uses the following conventions: “User” or “Operator” refers to anyone using a DS2400N. “Device” refers to the DS2400N. “You” refers to the System Administrator or Technical Support person using this manual to install, mount, operate, maintain or troubleshoot a DS2400N.
SAFETY AND COMPLIANCE NOTICES CAUTION Subzero model scanners must not be opened in an uncontrolled environment. LASER SAFETY The following information is provided to comply with the rules imposed by international authorities and refers to the correct use of the DS2400N scanner. Standard Regulations This scanner utilizes a low-power laser diode.
Disconnect the power supply when opening the device during maintenance or installation to avoid exposure to hazardous laser light. The laser diode used in this device is classified as a class 3B laser product according to EN 60825-1 regulations and as a Class IIIb laser product according to CDRH regulations. Any violation of the optic parts in particular can cause radiation up to the maximum level of the laser diode (35 mW at 630 to 680 nm).
CE COMPLIANCE Warning: This is a Class A product. In a domestic environment this product may cause radio interference in which case the user may be required to take adequate measures. HANDLING The DS2400N is designed to be used in an industrial environment and is built to withstand vibration and shock when correctly installed, however it is also a precision product and therefore before and during installation it must be handled correctly to avoid damage.
do not fine tune the positioning by striking the scanner or bracket. do not weld the scanner into position which can cause electrostatic, heat or output window damage. do not spray paint near the scanner which can cause output window damage.
GENERAL VIEW DS2400N 11 4 5 6 3 7 2 10 1 9 Figure A x 8 1 Warning and Device Class Labels 7 Laser Beam Output Window 2 "POWER ON" LED 8 "COM" LED 3 Mounting Holes 9 "STATUS" LED 4 "READY" LED 10 X-PRESS™ Push Button 5 "GOOD" LED 11 Accessory Mounting Holes 6 "TRIGGER" LED
DS2400N Subzero 4 6 5 3 7 8 2 11 10 1 9 Figure A 1 Warning and Device Class Labels 7 Laser Beam Output Window 2 "POWER ON" LED 8 "COM" LED 3 Mounting Holes 9 Subzero Model Logo 4 "READY" LED 10 "STATUS" LED 5 "GOOD" LED 11 X-PRESS™ Push Button 6 "TRIGGER" LED xi
xii
RAPID CONFIGURATION 1 1 RAPID CONFIGURATION This chapter illustrates a Stand Alone application. For other types of installations, such as ID-NET™, Fieldbus, Pass-Through, Multiplexer Layout, etc., refer to chapters 4, 5 and 6. For complete scanner configuration using the Genius™ configuration program, refer to the Context-Sensitive Help On-Line. NOTE STEP 1 – CONNECT THE SYSTEM To connect the system in a Stand Alone configuration, you need the hardware indicated in Figure 1.
DS2400N REFERENCE MANUAL 1 CBX100/500 Pinout for DS2400N The table below gives the pinout of the CBX100/500 terminal block connectors.
RAPID CONFIGURATION 1 25-pin Connector Pinout for DS2400N The table below gives the pinout of the 25-pin male D-sub connector for connection to the power supply and input/output signals.
DS2400N REFERENCE MANUAL 1 STEP 2 – MOUNTING AND POSITIONING THE SYSTEM 1. To mount the DS2400N, use the mounting bracket to obtain the most suitable position for the reader as shown in the figures below. Skew Tilt Pitch Skew Figure 3 - Positioning with Mounting Bracket 2. When mounting the DS2400N take into consideration these three ideal label position angles: Skew 10° to 30°, Tilt 0° and Pitch 0°.
RAPID CONFIGURATION 1 STEP 3 – X-PRESS™ CONFIGURATION X-PRESS™ is the intuitive Human Machine Interface designed to improve ease of installation and maintenance.
DS2400N REFERENCE MANUAL 1 Auto Learn If you are configuring your scanner using X-PRESS™, you must start with the Auto Learn procedure. 1. Enter the Auto Learn function by holding the X-PRESS™ push button pressed until the LEARN LED is on. 2. Release the button to enter the Auto Learn function. Once entered, the reader starts a procedure to automatically detect and recognize barcodes (by type and length), which are presented to it (*).
RAPID CONFIGURATION 1 Auto Setup (Optional) At the end of the Auto Learn procedure, you have the possibility to follow the Auto Setup procedure to set up the reading parameters. 1. Enter the Auto Setup function by holding the X-PRESS™ push button pressed until the SETUP LED is on. 2. Release the button to enter the Auto Setup function. 3.
DS2400N REFERENCE MANUAL 1 STEP 4 – INSTALLING GENIUS™ CONFIGURATION PROGRAM Genius™ is a Datalogic scanner configuration tool providing several important advantages: Wizard approach for new users; Multi-language version; Defined configuration directly stored in the reader; Communication protocol independent from the physical interface allowing to consider the reader as a remote object to be configured and monitored.
RAPID CONFIGURATION 1 1. Select the Create a new configuration button. You will be guided through the configuration being asked to define the following parameters: a.
DS2400N REFERENCE MANUAL 1 10 b. Operating mode selection and definition c.
RAPID CONFIGURATION d. Hardware interface selection e. Output data format configuration 1 The On Line operating Mode requires the reader to be connected to an External Trigger/Presence Sensor using I1A and I1B inputs. The Automatic operating mode does not require connection to an external Presence Sensor. When working in this mode the reader is continuously scanning, while the reading phase is activated each time a barcode enters the reader reading zone.
1 DS2400N REFERENCE MANUAL 2. After defining the parameter values the following window appears allowing to complete the reader configuration as follows: Saving the configuration to disk; Switching to Advanced mode; Sending the configuration to the scanner. 3. After sending the configuration to the scanner you have completed the configuration process. 12 4. By clicking Finish, the System Information window will be displayed with specific information concerning the scanner.
RAPID CONFIGURATION 1 STEP 5 – TEST MODE Use a code suitable to your application to test the system. Alternatively, you can use the Datalogic Test Chart (Code 39, Code Interleaved 2/5). 1. Enter the Test mode function by holding the X-PRESS™ push button pressed until the TEST LED is on. 2. Release the button to enter the Test mode function. Once entered, the Bar-Graph on the five LEDs is activated and if the scanner starts reading barcodes the Bar-Graph shows the Good Read Rate.
DS2400N REFERENCE MANUAL 1 ADVANCED SCANNER CONFIGURATION The ADVANCED selection available when starting the Genius™ program is addressed to expert users being able to complete a detailed scanner configuration. By choosing this option it is possible either to start a new scanner configuration or to open and modify an old one.
INTRODUCTION 2 2 INTRODUCTION 2.1 PRODUCT DESCRIPTION The DS2400N laser scanner satisfies the most advanced needs of a wide range of users. It has been developed focusing on the realistic requirements of its target market. The outstanding result is an extremely compact, cost-effective and easy to use industrial scanner. Standard Application Program A standard application program is factory-loaded onto the DS2400N.
DS2400N REFERENCE MANUAL 2 2.1.1 Indicators The five LEDs on the side of the scanner (Figure A) indicate the following: READY (green) This LED indicates the device is ready to operate. For Subzero models this LED blinks during the warm-up phase. GOOD (green) This LED confirms successful reading. TRIGGER (yellow) This LED indicates the status of the reading phase. * COM (yellow) This LED indicates active communication on main serial port. ** STATUS (red) This LED indicates a NO READ result.
INTRODUCTION 2 ID-NET™ M/S Multidata: Multiple stations – single scanner CBX100 CBX100 CBX100 ID-NET™ interface allows connection of scanners reading objects placed on independent conveyors. All scanners are typically located far away from each other and they use a dedicated presence sensor. At the end of each reading phase, each scanner transmits its own data message to the host.
DS2400N REFERENCE MANUAL 2 2.2.1 How To Setup/Configure the Scanner Network A complete ID-NET™ scanner network can be rapidly setup, as follows: Mounting & Connection 1. Mechanically mount/install all the readers (refer to par. 3.2 and 3.2.5). 2. Wire ID-NET™ (refer to par. 4.3 or 5.3). 3. Connect the planned Master scanner to a PC by means of the Genius™ configuration software. 4. Power up the entire system. Configuration 1. Launch Genius™. 2.
INTRODUCTION 2 2.3 X-PRESS™ HUMAN MACHINE INTERFACE X-PRESS™ is the intuitive Human Machine Interface designed with the precise goal of improving ease of installation and maintenance.
DS2400N REFERENCE MANUAL 2 2.3.2 X-PRESS™ Functions Quick access to the following functions is provided by an easy procedure using the push button: 1 – Press the button (the STATUS LED will give a visual feedback). 2 – Hold the button until the specific function LED is on (TEST, LEARN or SETUP). 3 – Release the button to enter the specific function.
INTRODUCTION 2 AutoLearn Function Once entered, the reader starts a procedure to automatically detect and recognize barcodes (by type and length), which are presented to it 1. The laser turns on and the LEARN LED blinks to indicate the ongoing process. The procedure is as follows: - place the desired barcode on the scanline. - wait until the LEARN LED stays steady on (indicating the reader has detected the barcode).
DS2400N REFERENCE MANUAL 2 Reset Scanner to Factory Default If it ever becomes necessary to reset the scanner to the factory default values, you can perform this procedure by holding the X-PRESS™ push button pressed while powering up the scanner. At the end of the procedure (about 5-6 seconds), the Configuration and Environmental parameters are reset, all LEDs blink simultaneously 3 times and the message "Default Set" is shown on the display. 2.
INTRODUCTION 2 2.
DS2400N REFERENCE MANUAL 2 2.
INSTALLATION 3 3 INSTALLATION 3.
DS2400N REFERENCE MANUAL 3 3.2 MECHANICAL INSTALLATION DS2400N can be installed to operate in different positions. The four screw holes (M4 x 5) on the body of the reader are for mechanical fixture (Figure A, 3). The diagrams below give the overall dimensions of the scanner and mounting bracket and may be used for installation. Refer to par. 3.2.1 and 3.2.5 for correct positioning. 84 3.31 23.3* 0.92 40 1.57 10.3 0.41 4 0.16 32.7 1.29 68 2.68 46 1.81 40 1.57 10.3 0.41 14 0.55 14.7 0.
INSTALLATION 3.2.
DS2400N REFERENCE MANUAL 3 3.2.2 Mounting a GFC-2010 Accessory Direct Output Window The GFC-2010 accessory direct output window can be used as a replacement of the original output window in case of damage over time when used in harsh environments. CAUTION Subzero model scanners must not be opened in an uncontrolled environment. The installation of the output window is very easy. 1. Make sure the device is not powered. Cover Screws 2.
INSTALLATION 3.2.3 3 Mounting a GFC-2020 Accessory Lateral Output Deflection Mirror The GFC-2020 accessory is a Lateral Output deflection mirror which helps to position the scanner body in a different orientation with respect to the code, for limited space applications. CAUTION Subzero model scanners must not be opened in an uncontrolled environment. The installation of the deflection mirror is very easy. 1. Make sure the device is not powered. Cover Screws 2.
DS2400N REFERENCE MANUAL 3 3.2.4 Mounting a GFC-200 Accessory Contact Reading Mirror The GFC-200 is an 85° contact reading mirror that is mounted directly to the DS2400N Scanner. The GFC-200 allows contact reading, eliminating the external optical path. Figure 21 - GFC-200 General View The overall dimensions are provided in the figure below and can be used for proper installation. 146.5 [5.77] 5 [0.20] 26 [1.02] 92 [3.62] 120 [4.72] 10 [0.39] 17 [0.67] Ø4.5 [Ø0.18] N°4 5 [0.20] 82 [3.
INSTALLATION 3 To fix a DS2400N Scanner to the GFC-200, use the two M 4 x 6 mm screws supplied with the GFC Kit. Refer to the following figure. Figure 23 – Fixing DS2X00N Scanner to GFC-200 The GFC-200 85° contact reading mirror assures that the minimum skew angle is maintained to avoid direct light reflection which can degrade reading performance. When reading very reflective barcodes, it may be necessary to increase the skew angle (up to 10° - 15°).
DS2400N REFERENCE MANUAL 3 The internal optical path from the scanner reading window to the GFC-200 window is 51 mm. The reading distance of the DS2400N scanner with the GFC-200 is shifted by 51 mm towards the scanner because of the internal optical path between the scanner and the GFC200 output window. The reading performance also decreases in typical conditions by about 10% due to the optical signal passing through the output window of the GFC-200 and the reflection on the mirror surface.
INSTALLATION 3.2.5 3 Mounting an OM2000N Accessory Oscillating Mirror The OM2000N oscillating mirror is designed to generate homogeneous and adjustable raster reading through deflection of the scanning laser beam. The system consists of the oscillating mirror attached to the scanner and allows a surface instead of a line to be observed; versatility and reading accuracy are therefore increased in "Picket Fence" reading mode.
DS2400N REFERENCE MANUAL 3 The installation of the deflection mirror is very easy. 1) Clean the OM2000N mirror surface and output window (internally and externally) with a clean soft cloth and alcohol before assembling it to the scanner. CAUTION All abrasive substances must be absolutely avoided as they cause irreparable damage to the transparency of the glass. 2) Remove the scanning window from the scanner (see Figure 27).
INSTALLATION 3 The reading distance of the scanner with the OM2000N is shifted by 10 mm towards the scanner because of the internal optical path between the scanner and the OM2000N output window. The reading performance also decreases in typical conditions by about 10% due to the optical signal passing through the output window of the OM2000N and the reflection on the mirror surface.
3 DS2400N REFERENCE MANUAL 3.3 POSITIONING The DS2400N scanner is able to decode moving barcode labels at a variety of angles, however significant angular distortion may degrade reading performance. When mounting the DS2400N take into consideration these three ideal label position angles: Skew 10° to 30°, Tilt 0° and Pitch 0°. Follow the suggestions for the best orientation: The Skew angle is represented by the value S in Figure 33. Position the reader to assure at least 10° for the Skew angle.
CBX ELECTRICAL CONNECTIONS 4 4 CBX ELECTRICAL CONNECTIONS All DS2400N models are equipped with a cable terminated by a 25-pin male D-sub connector for connection to the power supply and input/output signals. We recommend making system connections through one of the CBX connection boxes since they offer the advantages of easy connection, easy device replacement and filtered reference signals.
DS2400N REFERENCE MANUAL 4 NOTE To avoid electromagnetic interference when the scanner is connected to a CBX connection box, verify the jumper positions in the CBX as indicated in its Installation Manual. 4.1 POWER SUPPLY Power can be supplied to the scanner through the CBX100/500 spring clamp terminal pins as shown in Figure 36: Power Supply VGND V+ in Earth Ground Figure 36 - Power Supply Connections The power must be between 10 and 30 Vdc only.
CBX ELECTRICAL CONNECTIONS 4.2.1 4 RS232 Interface The serial interface is used in this case for point-to-point connections; it handles communication with the host computer and allows both transmission of code data and the programming of the scanner. This is the default setting. The following pins are used for RS232 interface connection: CBX100/500 TX RX RTS CTS SGND Function Transmit Data Receive Data Request To Send Clear To Send Signal Ground It is always advisable to use shielded cables.
DS2400N REFERENCE MANUAL 4 4.2.2 RS485 Full-Duplex Interface The RS485 full-duplex (5 wires + shield) interface is used for non-polled communication protocols in point-to-point connections over longer distances (max 1200 m / 3940 ft) than those acceptable for RS232 communications or in electrically noisy environments.
CBX ELECTRICAL CONNECTIONS 4.2.3 4 RS485 Half-Duplex Interface This interface is provided for backward compatibility. We recommend using the more efficient ID-NET™ network for Master/Slave or Multiplexer layouts. NOTE The RS485 half-duplex (3 wires + shield) interface is used for polled communication protocols. It can be used for Multidrop connections with a Datalogic Multiplexer, (see par. 6.
DS2400N REFERENCE MANUAL 4 Main Interface MULTIPLEXER HOST RS232/RS485 120 Ohm Shield to Earth Multidrop Multidrop + Multidrop GND Shield PG-6000 VV+ CBX100/500 Scanner Slave #0 RTX+ Shield floating SGND Shield PG-6000 Earth GND Vdc CBX100/500 Scanner Slave #1 * Shield floating RS485 HD Termination Resistor. Multidrop Cable OFF 1200 m Max Length RS485 HD Termination Resistor.
CBX ELECTRICAL CONNECTIONS 4 4.3 ID-NET™ INTERFACE CBX100/500 Shield ID+ IDREF 4.3.1 Function Network Cable Shield ID-NET™ network + ID-NET™ network Network Reference ID-NET™ Cables The following instructions are referred to Figure 44, Figure 45 and Figure 46. The general cable type specifications are: CAT5 twisted pair + additional CAT5 twisted pair, shielded cable AWG 24 (or AWG 22) stranded flexible.
DS2400N REFERENCE MANUAL 4 4.3.2 ID-NET™ Response Time The following figure shows the response time of the ID-NET™ network. This time is defined as the period between the Trigger activation and the beginning of data transmission to the Host.
CBX ELECTRICAL CONNECTIONS 4 Figure 44 – ID-NET™ Network Connections with isolated power blocks 45
4 DS2400N REFERENCE MANUAL Figure 45 - ID-NET™ Network Connections with Common Power Branch Network 46
CBX ELECTRICAL CONNECTIONS 4 Figure 46 – ID-NET™ Network Connections with Common Power Star Network 47
DS2400N REFERENCE MANUAL 4 4.3.3 ID-NET™ Network Termination The network must be properly terminated in the first and last scanner of the network. This is done by setting the ID-NET™ Termination Resistance Switch in the CBX100/500 to ON. 4.4 AUXILIARY RS232 INTERFACE The auxiliary serial interface is used exclusively for RS232 point-to-point connections. The parameters relative to the aux interface (baud rate, data bits, etc.
CBX ELECTRICAL CONNECTIONS 4 4.5 INPUTS There are two optocoupled polarity insensitive inputs available on the scanner: Input 1 (External Trigger) and Input 2, a generic input: The electrical features of both inputs are: Maximum voltage: 30 Vdc Maximum current: 12 mA (scanner) + 12 mA (CBX) An anti-disturbance filter is implemented in software on both inputs so that the minimum pulse duration is 5 milliseconds.
DS2400N REFERENCE MANUAL 4 NPN Photocell Power to Photocell Input Signal Photocell Reference Figure 50 - NPN External Trigger Using DS2400N Power EXTERNAL TRIGGER INPUT CONNECTIONS USING EXTERNAL POWER PNP Photocell Input Signal Pulled down to External Input Device Reference Figure 51 - PNP External Trigger Using External Power NPN Photocell Pulled up to External Input Device Power Input Signal Figure 52 - NPN External Trigger Using External Power 50
CBX ELECTRICAL CONNECTIONS CBX100/500 +V I2A I2B -V 4 Function Power Source - Inputs Input 2 A (polarity insensitive) Input 2 B (polarity insensitive) Power Reference - Inputs INPUT 2 CONNECTIONS USING DS2400N POWER Input Device Power to Input Device Input Signal Input Device Reference PNP Input 2 Using DS2400N Power Input Device Power to Input Input Device Signal Input Device Reference NPN Input 2 Using DS2400N Power INPUT 2 CONNECTIONS USING EXTERNAL POWER Input Device Input Signal Pulled down to
DS2400N REFERENCE MANUAL 4 Input Device Pulled up to External Input Device Power Input Signal Figure 54 - NPN Input 2 Using External Power 4.5.1 Code Verifier If the DS2400N is used as a Code Verifier, the verifier code can be configured in software through the Genius™ configuration program. However it is also possible to use one of the inputs to trigger when the scanner should store a code read as the verifier code.
CBX ELECTRICAL CONNECTIONS 4 OUTPUT CONNECTIONS USING DS2400N POWER Output Device Power to Output device Output Signal Output device Reference Figure 55 - Open Emitter Output Using DS2400N Power Output Device Power to Output device Output device Reference Output Signal Figure 56 - Open Collector Output Using DS2400N Power OUTPUT CONNECTIONS USING EXTERNAL POWER Output Device Pulled up to External Output Device Power Output Signal Figure 57 - Open Emitter Output Using External Power Output Device O
DS2400N REFERENCE MANUAL 4 4.7 USER INTERFACE - HOST The following table contains the pinout for standard RS232 PC Host interface. For other user interface types please refer to their own manual.
25-PIN CABLE ELECTRICAL CONNECTIONS 5 5 25-PIN CABLE ELECTRICAL CONNECTIONS All DS2400N models are equipped with a cable terminated by a 25-pin male D-sub connector for connection to the power supply and input/output signals. The details of the connector pins are indicated in the following table.
DS2400N REFERENCE MANUAL 5 5.1 POWER SUPPLY Power can be supplied to the scanner through the pins provided on the 25-pin connector used for communication with the host (Figure 60): POWER SUPPLY DS2400N 13 Vdc V+ (10 - 30 Vdc) 25 GND 1 CHASSIS VGND CHASSIS Earth Ground Figure 60 - Power Supply Connections The power must be between 10 and 30 Vdc only. For DS2400N Subzero models the power must be 24 Vdc. It is recommended to connect pin 1 (CHASSIS) to a common earth ground. 5.
25-PIN CABLE ELECTRICAL CONNECTIONS 5.2.1 5 RS232 Interface The serial interface is used in this case for point-to-point connections; it handles communication with the host computer and allows both transmission of code data and the programming of the scanner. This is the default setting.
DS2400N REFERENCE MANUAL 5 5.2.2 RS485 Full-Duplex Interface The RS485 full-duplex (5 wires + shield) interface is used for non-polled communication protocols in point-to-point connections over longer distances (max 1200 m / 3940 ft) than those acceptable for RS232 communications or in electrically noisy environments.
25-PIN CABLE ELECTRICAL CONNECTIONS 5.2.3 5 RS485 Half-Duplex Interface This interface is provided for backward compatibility. We recommend using the more efficient ID-NET™ network for Master/Slave or Multiplexer layouts. NOTE The RS485 half-duplex (3 wires + shield) interface is used for polled communication protocols. It can be used for Multidrop connections with a Datalogic Multiplexer, (see par. 6.
5 DS2400N REFERENCE MANUAL Figure 66 - DS2400N Multidrop Connection to a Multiplexer 60
25-PIN CABLE ELECTRICAL CONNECTIONS 5 5.3 ID-NET™ INTERFACE 25-pin 23 24 7 5.3.1 Name ID+ IDGND Function ID-NET™ network + ID-NET™ network Ground ID-NET™ Cables The following instructions are referred to Figure 68, Figure 69 and Figure 70. The general cable type specifications are: CAT5 twisted pair + additional CAT5 twisted pair, shielded cable AWG 24 (or AWG 22) stranded flexible.
DS2400N REFERENCE MANUAL 5 5.3.2 ID-NET™ Response Time The following figure shows the response time of the ID-NET™ network. This time is defined as the period between the Trigger activation and the beginning of data transmission to the Host.
25-PIN CABLE ELECTRICAL CONNECTIONS 5 Figure 68 – ID-NET™ Network Connections with isolated power blocks 63
5 DS2400N REFERENCE MANUAL Figure 69 - ID-NET™ Network Connections with Common Power Branch Network 64
25-PIN CABLE ELECTRICAL CONNECTIONS 5 Figure 70 – ID-NET™ Network Connections with Common Power Star Network 65
DS2400N REFERENCE MANUAL 5 5.3.3 ID-NET™ Network Termination The network must be properly terminated by a 120 Ohm resistor at the first and last scanner of the network. 5.4 AUXILIARY RS232 INTERFACE The auxiliary serial interface is used exclusively for RS232 point-to-point connections. The parameters relative to the aux interface (baud rate, data bits, etc.
25-PIN CABLE ELECTRICAL CONNECTIONS 5 5.5 INPUTS There are two optocoupled polarity insensitive inputs available on the scanner: Input 1 (External Trigger) and Input 2, a generic input: The electrical features of both inputs are: Maximum voltage: 30 Vdc Maximum current: 12 mA An anti-disturbance filter is implemented in software on both inputs so that the minimum pulse duration is 5 milliseconds.
DS2400N REFERENCE MANUAL 5 EXTERNAL TRIGGER INPUT CONNECTIONS USING DS2400N POWER EXTERNAL TRIGGER DS2400N VCC + ~ ~ 9 Vdc 18 I1A 19 I1B 7 GND V Signal Ground Figure 73 - PNP External Trigger Using DS2400N Power DS2400N VCC + EXTERNAL TRIGGER ~ ~ 9 Vdc 18 I1A 19 I1B 7 GND V Signal Ground Figure 74 - NPN External Trigger using DS2400N Power EXTERNAL TRIGGER INPUT CONNECTIONS USING EXTERNAL POWER Vext 30 Vdc max.
25-PIN CABLE ELECTRICAL CONNECTIONS 25-pin 9 6 10 7 Name Vdc I2A I2B GND 5 Function Power Source Inputs Input 2 A (polarity insensitive) Input 2 B (polarity insensitive) Power Reference - Inputs INPUT 2 CONNECTIONS USING DS2400N POWER INPUT DEVICE DS2400N VCC + ~ ~ 9 Vdc 6 I2A 10 I2B 7 GND V Signal Ground Figure 77 - PNP Input 2 Using DS2400N Power DS2400N VCC INPUT DEVICE ~ + ~ 9 Vdc 6 I2A 10 I2B 7 GND V Signal Ground Figure 78 - NPN Input 2 Using DS2400N Power INPUT 2 C
DS2400N REFERENCE MANUAL 5 5.5.1 Code Verifier If the DS2400N is used as a Code Verifier, the verifier code can be configured in software through the Genius™ configuration program. However it is also possible to use one of the inputs to trigger when the scanner should store a code read as the verifier code. The Code Verifier parameter must be enabled, and the configuration parameters to allow correct Code Type reading must be saved to the scanner in order to read the verifier code.
25-PIN CABLE ELECTRICAL CONNECTIONS DS2400N 5 USER INTERFACE C 8/11 O+ 22/12 O- Vext 30 Vdc max. E Figure 82 - Open Collector Output Connections VCE max = 30 Vdc 40 mA continuous max.; 130 mA pulsed max. 5.7 USER INTERFACE - HOST The following table contains the pinout for standard RS232 PC Host interface. For other user interface types please refer to their own manual.
DS2400N REFERENCE MANUAL 6 6 TYPICAL LAYOUTS The following typical layouts refer to system hardware configurations. Dotted lines in the figures refer to optional hardware configurations within the particular layout. These layouts also require the correct setup of the software configuration parameters. Complete software configuration procedures can be found in the Guide To Rapid Configuration in the Genius™ Help On Line. 6.
TYPICAL LAYOUTS 6 In this layout a single scanner functions as a Slave node on a Fieldbus network. The data is transmitted to the Host through an accessory Fieldbus interface board installed inside the CBX500 connection box. Scanner configuration can be accomplished through the Auxiliary interface using the Genius™ configuration program or Genius™ based Host Mode programming.
DS2400N REFERENCE MANUAL 6 6.2 PASS-THROUGH Pass-through mode allows two or more devices to be connected to a single external serial interface. Each DS2400N transmits the messages received by the Auxiliary interface onto the Main interface. All messages will be passed through this chain to the host. When On-Line Operating mode is used, the scanner is activated by an External Trigger (photoelectric sensor) when the object enters its reading zone.
TYPICAL LAYOUTS 6 An alternative Pass-Through layout allows the more efficient ID-NET™ network to be used. This layout is really an ID-NET Master/Slave Multidata layout which also allows each scanner (Master and Slaves) to accept input on the Auxiliary interface, for example to connect a device such as a hand-held reader for manual code reading capability. Each DS2400N transmits its own messages plus any messages received by its Auxiliary interface onto the ID-NET™ interface.
DS2400N REFERENCE MANUAL 6 6.3 ID-NET™ The ID-NET™ connection is used to collect data from several scanners to build a multi-point or a multi-sided reading system; there can be one master and up to 31 slaves connected together. The slave scanners are connected together using the ID-NET™ interface. Every slave scanner must have a ID-NET™ address in the range 1-31. The master scanner is also connected to the Host on the RS232/RS485 main serial interface.
TYPICAL LAYOUTS 6 For a Master/Slave Multidata layout each scanner has its own reading phase independent from the others; each single message is sent from the master scanner to the Host computer.
DS2400N REFERENCE MANUAL 6 QL100 QL100 ID-NET™ Slave Nodes CBL-1480-xx CBL-1480-xx CBL-1490 ID-NET Terminator DS2400N Master The ID-NET network must be terminated through the internal switch of the CBX500 and inserting an ID-NET terminator into the last QL in the network. PS Power CAB-PW-EXT 3 1 CBX500 w BM200 Host 4 BA600 ID-NET™ Out BA400 Ext.
TYPICAL LAYOUTS 6 The Master scanner can communicate to the Host as a Slave node on an Ethernet TCP/IP network. This example requires using the accessory BM2x0 Ethernet interface board installed inside the CBX500 connection box. System configuration can be accomplished through the Auxiliary interface of the Master scanner (internal CBX500 9-pin connector) using the Genius™ configuration program or Genius™ based Host Mode programming.
DS2400N REFERENCE MANUAL 6 Alternatively, the Master scanner can communicate to the Host as a Slave node on a Fieldbus network. This requires using an accessory Fieldbus interface board installed inside the CBX500 connection box. System configuration can be accomplished through the Auxiliary interface of the Master scanner (internal CBX500 9-pin connector) using the Genius™ configuration program or Genius™ based Host Mode programming.
TYPICAL LAYOUTS 6 The QLM600 Profibus Gateway active connection module can also be used. System configuration can be accomplished through the Auxiliary interface of the Master scanner (QLM600 Aux connector) using the Genius™ configuration program or Genius™ based Host Mode programming.
DS2400N REFERENCE MANUAL 6 6.4 RS232 MASTER/SLAVE This interface is provided for backward compatibility. We recommend using the more efficient ID-NET™ network for Master/Slave or Multiplexer layouts. NOTE The RS232 master/slave connection is used to collect data from several scanners to build either a multi-point or a multi-sided reading system; there can be one master and up to 9 slaves connected together. The Slave scanners use RS232 only on the main and auxiliary serial interfaces.
TYPICAL LAYOUTS 6 6.5 MULTIPLEXER LAYOUT This interface is provided for backward compatibility. We recommend using the more efficient ID-NET™ network for Master/Slave or Multiplexer layouts. NOTE Each scanner is connected to a Multiplexer (for example MX4000) with the RS485 halfduplex main interface through a CBX connection box.
DS2400N REFERENCE MANUAL 7 7 READING FEATURES 7.1 ADVANCED CODE RECONSTRUCTION (ACR-LITE) The traditional way of barcode reading could be called “Linear Reading”. In this case, the laser beam crosses the barcode symbol from its beginning to its end as shown in the following figure: Laser Beam Figure 98 – Linear Reading In Advanced Code Reconstruction mode it is no longer necessary for the laser beam to cross the label from the start to the end.
READING FEATURES 7 ACR-Lite is disabled by default but can be enabled for the following code types: 7.1.1 Code 25 Interleaved Code 39 Family Codabar GS1 DataBar Code 128/GS1-128 EAN/UPC (without ADD-Ons) Code 93 GS1 DataBar Expanded Important ACR-Lite Reading Conditions Do not use ACR-Lite for omni-directional reading stations. Code concatenation and ACR-Lite are not compatible and therefore cannot be enabled simultaneously. Stacked codes and ACR-Lite are not compatible.
DS2400N REFERENCE MANUAL 7 The decoder will be able to read the label + max and - max as shown in the following figure: with a tilt angle between 0° OK OK No Read No Read No Read Conveyor - + OK OK OK Laser Beam Figure 102 – Reading Zones with Max NOTE 86 While tilt angles of 45° can be obtained, DS2400N scanners are not designed to create omni-directional reading stations using two scanners in an X-pattern.
READING FEATURES 7.1.3 7 Advanced Code Reconstruction Reading Conditions The following tables describe the minimum code height requirements (in mm) for standard ACR-Lite applications depending on the code symbology and the given reading conditions. ANSI Grade B minimum 800 scans/sec three code symbologies enabled simultaneously uniform background 2/5 Interleaved Conveyor Speed (m/s) 0.20 Code Resolution 0.35 (mm) 0.50 Minimum Code Height for ACR-Lite Reading (mm) 45° max 30° max 0.5 .75 1 0.
DS2400N REFERENCE MANUAL 7 7.2 LINEAR CODE READING The number of scans performed on the code by the DS2400N and therefore the decoding capability is influenced by the following parameters: number of scans per second code motion speed label dimensions scan direction with respect to code motion At least 5 scans during the code passage should be allowed to ensure a successful read. 7.2.
READING FEATURES 7.2.
DS2400N REFERENCE MANUAL 7 7.3 PERFORMANCE The DS2400N scanner is available in different versions according to the reading performance. Version Max Code Resolution Speed 02XX 12XX 22XX mm (mils) 0.20 (8) 0.25 (10) 0.35 (14) scans/s 600 to 1000 600 to 1000 600 to 1000 Version Reading Distance 02XX 12XX 22XX 75 mm (3 in) - 340 mm (13.4 in) on 0.35 mm (14 mils) codes 100 mm (3.9 in) - 440 mm (17.3 in) on 0.50 mm (20 mils) codes 190 mm (7.5 in) - 600 mm (23.6 in) on 0.
READING FEATURES 7 7.4 READING DIAGRAMS Reading diagrams for Subzero models and Standard models are the same. DS2400N-020X (Short Reading Range) 4 10 3 7,5 2 5 1 2,5 0 0 1 2,5 2 5 3 7,5 4 in cm 2 4 5 10 6 10 8 15 20 25 14 in 12 30 35 cm 0.35 mm (14 mils) 0.20 mm (8 mils) 0.25 mm (10 mils) 10 Note: (0,0) is the center of the laser beam output window.
DS2400N REFERENCE MANUAL 7 DS2400N-120X (Medium Reading Range) 8 4 10 8 20 6 15 4 10 2 5 0 0 2 5 4 6 8 in 12 20 30 20 16 40 50 cm 0.50 mm (20 mils) 0.25 mm (10 mils) 10 0.35 15 mm (14 mils) 20 cm Note: (0,0) is the center of the laser beam output window. CONDITIONS Optic Version Code PCS "Pitch" angle "Skew" angle "Tilt" angle *Code Resolution = = = = = = = *Reading Conditions *Scan Speed = = Linear Interleaved 2/5 or Code 39 0.90 0 10 0 High for 0.
READING FEATURES 7 DS2400N-220X (Long Reading Range) 8 20 6 15 4 10 2 5 0 0 2 5 4 10 6 15 4 8 12 16 20 24 28 in 10 20 30 40 50 60 70 cm 0.35 mm (14 mils) 0.50 mm (20 mils) 8 20 in cm Note: (0,0) is the center of the laser beam output window. CONDITIONS Optic Version Code PCS "Pitch" angle "Skew" angle "Tilt" angle *Code Resolution *Reading Conditions *Scan Speed = = = = = = = = = = Linear Interleaved 2/5 or Code 39 0.90 0 10 0 High for 0.
DS2400N REFERENCE MANUAL 8 8 MAINTENANCE 8.1 CLEANING Clean the laser beam output window periodically for continued correct operation of the reader. Dust, dirt, etc. on the window may alter the reading performance. Repeat the operation frequently in particularly dirty environments. Use soft material and alcohol to clean the window and avoid any abrasive substances. WARNING 94 Clean the window of the DS2400N when the scanner is turned off or, at least, when the laser beam is deactivated.
TROUBLESHOOTING 9 9 TROUBLESHOOTING 9.1 GENERAL GUIDELINES When wiring the device, pay careful attention to the signal name (acronym) on the CBX100/500 spring clamp connectors (chp. 4). If you are connecting directly to the scanner 25-pin connector pay attention to the pin number of the signals (chp 5). If you need information about a certain reader parameter you can refer to the Genius™ program help files.
9 DS2400N REFERENCE MANUAL TROUBLESHOOTING GUIDE Problem Power On: the "Power On"/ "Ready" LED are not lit Suggestions Is power connected? If using a power adapter (like PG 6000), is it connected to a wall outlet? If using rail power, does rail have power? If using CBX100, does it have power (check switch and LED)? Measure voltage either at pin 13 and pin 25 (for 25-pin connector) or at spring clamp Vdc and GND (for CBX).
TROUBLESHOOTING 9 TROUBLESHOOTING GUIDE Problem Reading: Not possible to read the target barcode (always returns No Read) or the Auto Setup procedure Fails. Suggestions Check synchronization of reading pulse with object to read: Is the scan line correctly positioned? Place barcode in the center of scan line and run Test mode (selectable by Genius™ as an Operating Mode).
DS2400N REFERENCE MANUAL 10 10 TECHNICAL FEATURES ELECTRICAL FEATURES Input Power Supply Voltage Power consumption max. Serial Interfaces Main Serial Interface Baudrate Auxiliary Baudrate ID-NET™ Baudrate Inputs Input 1 (External Trigger), Input 2 Voltage Current Consumption Minimum Pulse Duration Outputs Output 1, Output 2 VCE Collector Current VCE saturation Power Dissipation OPTICAL FEATURES Light Source Wave Length Safety Class READING FEATURES Scan Rate (software program.
TECHNICAL FEATURES ENVIRONMENTAL FEATURES Operating Temperature Storage Temperature 10 DS2400N-xxx0 (Standard) DS2400N-xxx5 (Subzero) 0° to +45 C (+32° to +113 °F) -35° to +45 °C (-31° to +113 °F) -20° to +70 C (-4° to +158 °F) -35° to +70 °C (-31° to +158 °F) Humidity max. 90% non condensing Vibration Resistance 14 mm @ 2 to 10 Hz; 1.
GLOSSARY ACR-Lite (Advanced Code Reconstruction) This is a light version of the powerful Advanced Code Reconstruction technology applied to high performance high precision scanners. ACR-Lite is effective in reading codes positioned close-to-linear, small height codes, damaged codes, or poor print quality codes. See par. 7.1. Aperture Term used on the required CDRH warning labels to describe the laser exit window.
Full Duplex Simultaneous, two-way, independent transmission in both directions. Half Duplex Transmission in either direction, but not simultaneously. Host A computer that serves other terminals in a network, providing services such as network control, database access, special programs, supervisory programs, or programming languages. Interface A shared boundary defined by common physical interconnection characteristics, signal characteristics and meanings of interchanged signals.
RS232 Interface between data terminal equipment and data communication equipment employing serial binary data interchange. RS485 Interface that specifies the electrical characteristics of generators and receivers for use in balanced digital multipoint systems such as on a Multidrop line. Scanner A device that examines a printed pattern (barcode) and either passes the uninterpreted data to a decoder or decodes the data and passes it onto the Host system.
INDEX 2 25-Pin Cable Electrical Connections, 55 A Accessories, 24 Advanced Code Reconstruction (ACRLite), 84 Auxiliary RS232 Interface, 48, 66 C CBX Electrical Connections, 37 CE Compliance, viii Cleaning, 94 Code Verifier, 52, 70 D DS2400N Description, 15 F FCC Compliance, vii G General View, x GFC-200, 30 GFC-2010, 28 GFC-2020, 29 Glossary, 100 H Handling, viii I ID-NET™, 76 ID-NET™ Cables, 43, 61 ID-NET™ Interface, 43, 61 ID-NET™ Network Termination, 48, 66 ID-NET™ Response Time, 44, 62 Inputs, 49, 67 I
DECLARATION OF CONFORMITY EC-031 Rev.: 4 Pag.: 1 di 1 Datalogic Automation S.r.l. Via Lavino 265 40050 Monte San Pietro Bologna - Italy www.automation.datalogic.
DECLARATION OF CONFORMITY EC-127 Rev.: 1 Pag.: 1 di 1 Datalogic Automation S.r.l. Via Lavino 265 40050 Monte San Pietro Bologna - Italy www.automation.datalogic.
DECLARATION OF CONFORMITY EC-128 Rev.: 2 Pag.: 1 di 1 Datalogic Automation S.r.l. Via Lavino 265 40050 Monte San Pietro Bologna - Italy www.automation.datalogic.
