3-Slot Cradle
Quick Start Guide
822002151 (Rev. A) Sept. 2016

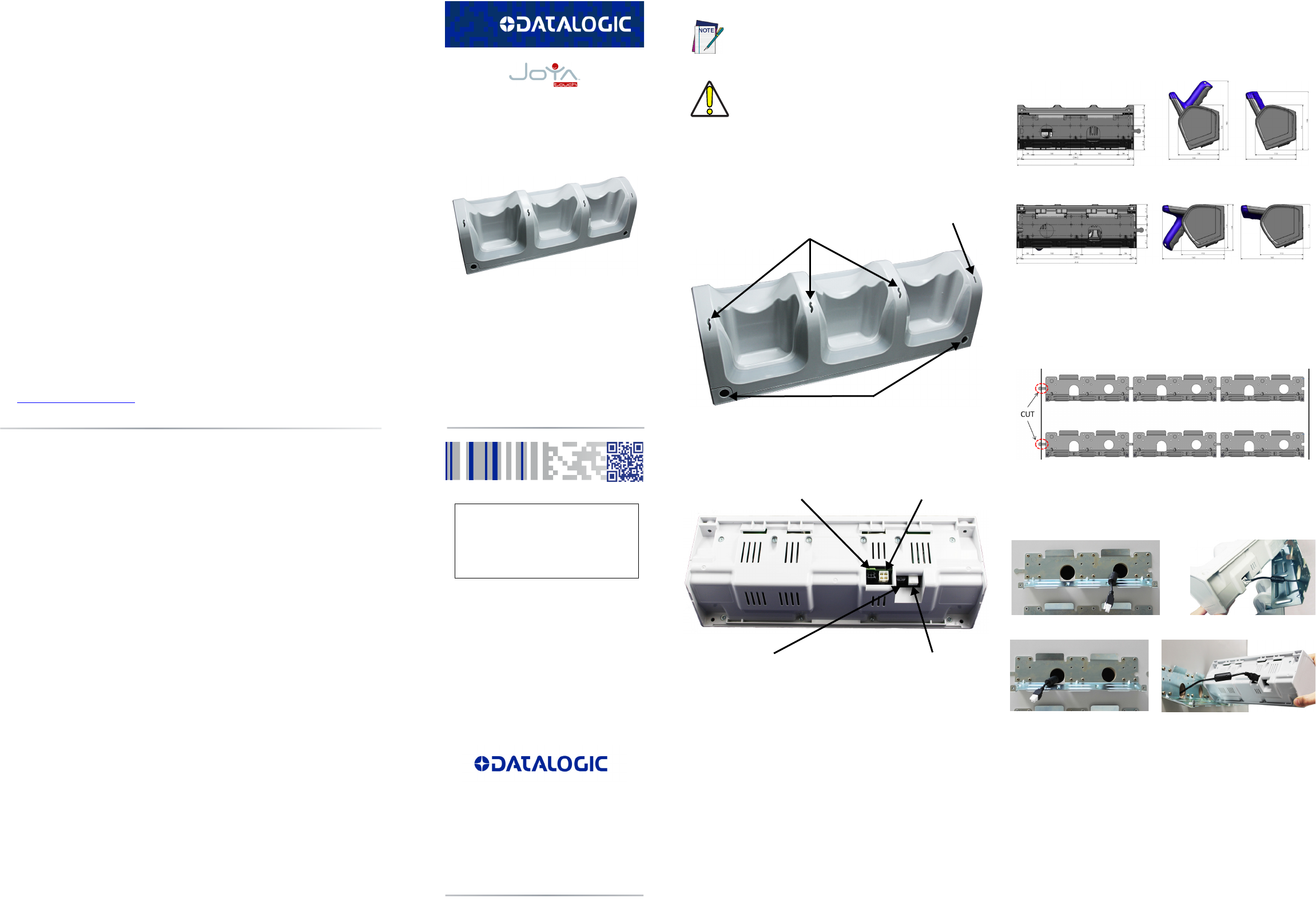

General View
Front View
Bottom View
Accessories
91ACC0045 JOYA TOUCH Cradle Unlock Key (5 PCS)
91ACC0048 JOYA TOUCH 3-Slot Cradle Power Supply. Line Cord
required (max 2 cradles on standard charge, max 1 cradle on
fast charge)
91ACC0049 JOYA TOUCH Cradle Power Jumper (5 PCS)
91ACC0050 JOYA TOUCH 3-Slot Cradle Wall Bracket
91ACC0051 Blue Kit to convert Plus Handheld to a Pistol Grip
91ACC0052 Blue Kit to convert Plus Pistol Grip to a Handheld
91ACC0053 Blue Kit to convert Basic Handheld to a Pistol Grip
91ACC0054 Blue Kit to convert Basic Pistol Grip to a Handheld
NOTE
Read this manual carefully before using the JOYA TOUCH 3-Slot
Cradle. The user is responsible for any damages caused by
incorrect use of the equipment or by inobservance of the
indication supplied in this manual.
CAUTION
Keep the original packaging for use when sending products to
the technical assistance center. Damage caused by improper
packaging is not covered under the warranty.
Unlocking Key Openings
Mounting Holes
Power On LED
Connector for Power
Supply (Visible Display)
Connector for Power Jumper
(Visible Display)
Connector for Power
Supply (High Density)
Connector for Power Jumper
(High Density)
JOYA TOUCH 3-Slot Cradle Installation
There are basically two different solutions organizing the disposition of
the devices:
• Visible Display Configuration
• High Density Configuration
To mount the cradle on the cabinet, follow the steps below:
1. Mount the JOYA TOUCH 3-Slot Cradle Wall Bracket on the cabinet. The
red-circled spacer in the figure below is used to set the horizontal
pitch in case the panel is not pre-drilled. Remove it from the last
bracket of the row by cutting along the engraving line.
2. Insert the power supply cable through the proper hole (the right hole
is for visible display configuration, the left hole is for high density
configuration). Connect the cradle to the power supply (see Powering
the Cradle).
Visible Display Configuration
High Density Configuration
3. Place the cradle on the mounting bracket as shown in the following
pictures. Ensure there is no gap between the bracket and the cradle.
Fix the cradle to the bracket using the two screws included in the
bracket’s box.
