Operating Instructions & Parts Manual

Dayton Propane

Construction Heater

Description

Dayton propane construction heater is variable 223,000 to 375,000 BTU/Hr with a

built-in thermostat. This heater uses propane gas for combustion and electricity

to run the motor. It is primarily intended for temporary heating of buildings

under construction, alteration, or repair. This heater should only be used indoors

but never in occupied dwellings. Products of combustion are vented into

the area being heated.

Form 5S3163

Please read and save these instructions. Read carefully before attempting to assemble, install, operate or maintain the product described.

Protect yourself and others by observing all safety information. Failure to comply with instructions could result in personal injury and/or

property damage! Retain instructions for future reference.

4E236C

Version B - For Reduction G016.J

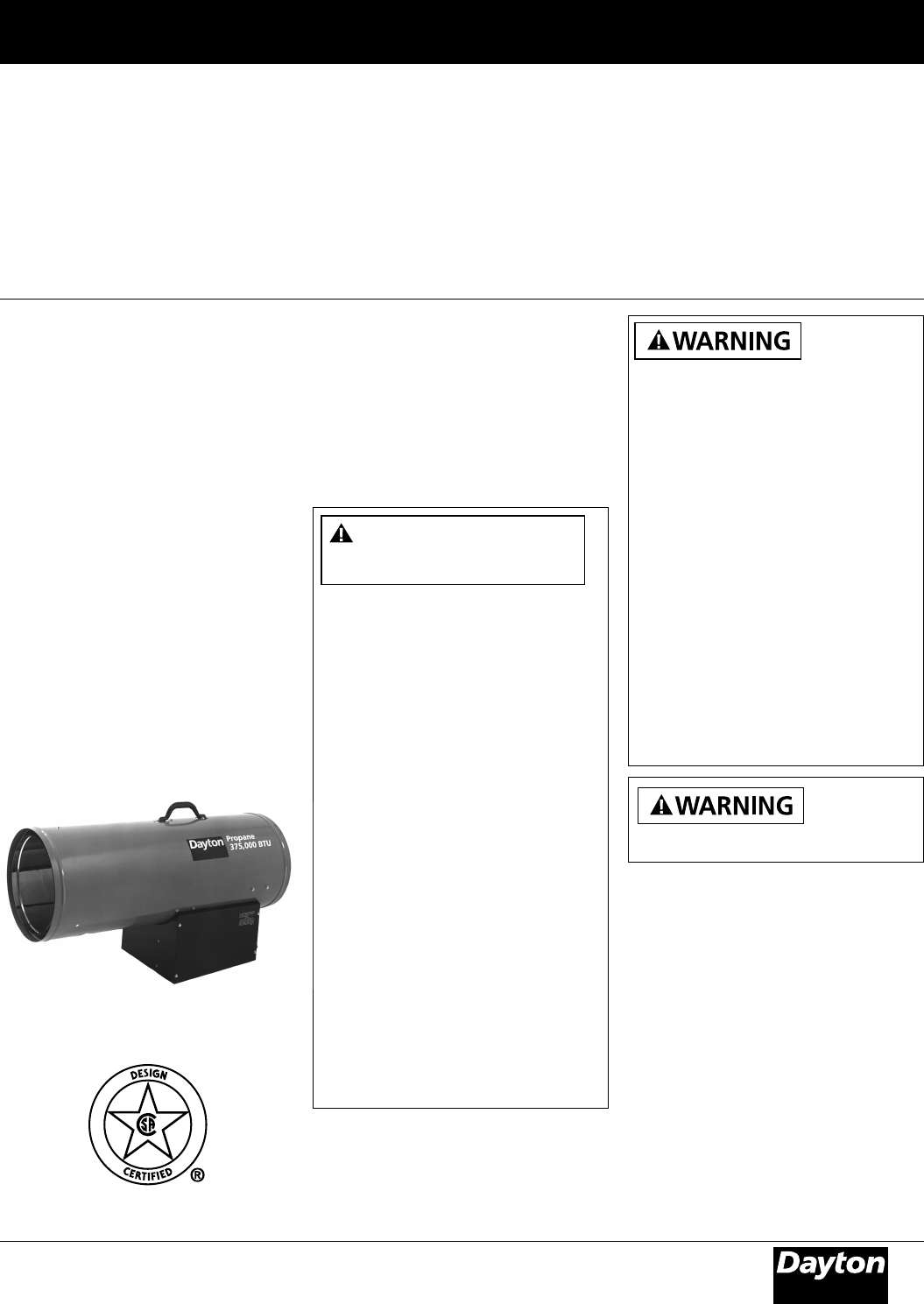

Figure 1 – Model 4E236C

1. Remove all packing items applied to

heater for shipment. Keep plastic

cover caps (attached to inlet connec-

tor and hose/regulator assembly) for

storage.

2. Remove all items from carton.

3. Check all items for shipping damage.

If heater is damaged, promptly

inform dealer where you bought

heater.

Unpacking

Fire, burn,

inhala-

tion, and explosion haz-

ard. Keep solid combus-

tibles such as building

materials, paper or card-

board, a safe distance

away from the heater as

recommended by the

instructions. Never use

the heater in spaces

which do or may contain

volatile or airborne com-

bustibles, or products

such as gasoline, sol-

vents, paint thinner, dust

particles, or unknown

chemicals.

Heater is designed and approved for use

as a construction heater under ANSI

Z83.7•CGA 2.14. The primary purpose of

construction heaters is to provide tempo-

rary heating of buildings under construc-

tion, alteration or repair, and to provide

temporary emergency heat. Properly used,

the heater provides safe economical

heating. Products of combustion are

vented into the area being heated.

We cannot foresee every use which may

be made of our heaters. Check with your

local fire safety authority if you have

questions about heater use.

Other standards govern the use of fuel

gases and heat producing products for

specific uses. Local authorities can advise

you about these.

Failure to comply with

the precautions and in-

structions provided with

this heater can result in

death, serious bodily

injury, and property loss

or damage from hazards

of fire, explosion, burn,

asphyxiation, carbon

monoxide poisoning,

and/or electrical shock.

Only persons who can

understand and follow

instructions should use or

service this heater.

If you need assistance or

heater information such

as an instructions

manual, labels, etc. con-

tact the manufacturer.

Not for

home or

recreational vehicle use.

GENERAL HAZARD

WARNING

Printed in U.S.A.

03430

0502/080/VCPVP

104799-01

Rev. D

05/02

Summary of content (12 pages)

PAGE 1
4E236C Operating Instructions & Parts Manual Please read and save these instructions. Read carefully before attempting to assemble, install, operate or maintain the product described. Protect yourself and others by observing all safety information. Failure to comply with instructions could result in personal injury and/or property damage! Retain instructions for future reference.
PAGE 2
4E236C Dayton Operating Instructions and Parts Manual Dayton Propane Construction Heater ® Specifications General Safety Information ELECTRICAL SPECIFICATIONS Electrical Input ............................................... 120V/60Hz Amperage ........................................................ 4.2 Motor ............................................................... 1/5 HP @ 1725 RPM IMPORTANT: Make certain you read and understand all warnings. Keep these instructions for reference.
PAGE 3
Dayton Operating Instructions and Parts Manual Model 4E236C General Safety Information (Continued) Carbon monoxide poisoning: Some people are more affected by carbon monoxide than others. Early signs of carbon monoxide poisoning resemble the flu, with headaches, dizziness, and/or nausea. If you have these signs, the heater may not be operating properly. Get fresh air at once! Have heater serviced. Propane Gas: Propane gas is odorless. An odor-making agent is added to propane gas.
PAGE 4
E236C Dayton Operating Instructions and Parts Manual Dayton Propane Construction Heater ® Theory of Operation THE FUEL SYSTEM The hose/regulator assembly attaches to the propane gas supply. The propane gas moves through the solenoid valve and out the nozzle. THE IGNITION SYSTEM Propane Supply The direct spark ignitor (DSI) sends voltage to the ignitor, which ignites the fuel and air mixture. Propane gas and propane tank(s) are to be furnished by the user.
PAGE 5
Dayton Operating Instructions and Parts Manual Model 4E236C Installation Review and understand the warnings in the Safety Information Section, pages 3 and 4. They are needed to safely operate this heater. Follow all codes when using this heater. Hose Operation Inlet Connector Test all gas piping and connections for leaks after installation or servicing. Never use an open flame to check for a leak. Apply a mixture of liquid soap and water to all joints. Bubbles forming show a leak.
PAGE 6
4E236C Dayton Operating Instructions and Parts Manual Dayton Propane Construction Heater ® Operation (Continued) Do not adjust regulator below 7 psiG or above 20 psiG. Heater may not run properly. 7. Turn on/off switch to the ON position. Adjust thermostat to desired setting. If heater does not start, thermostat setting may be too low. Turn thermostat knob to higher position to start heater. NOTE: If heater does not start, turn on/ off switch to the OFF position.
PAGE 7
Dayton Operating Instructions and Parts Manual Model 4E236C Maintenance (Continued) Rear Mounting Hole SERVICE PROCEDURES NOTE: Pull wires through hole one at a time. First Hole 6. Remove nuts and mounting bolts holding motor mount to shell (See Figure 7). Use 3/8" nut-driver and 7/16" wrench. Fan Blade Hub Motor Shaft Setscrew 7. Carefully pull motor and fan out of shell. IMPORTANT: Be careful not to damage blade. Do not set motor and blade down with the weight resting on blade.
PAGE 8
4E236C Dayton Operating Instructions and Parts Manual Dayton Propane Construction Heater For Repair Parts, call 1-800-323-0620 ® 24 hours a day — 365 days a year Please provide following information: -Model number -Serial number (if any) -Part description and number as shown in parts list Address parts correspondence to: Grainger Parts P.O. Box 3074 1657 Shermer Road Northbrook, IL 60065-3074 U.S.A.
PAGE 9
4E236C Dayton Operating Instructions and Parts Manual Model 4E236C Repair Parts List Use only original repair parts. This heater must use design-specific parts. Do not substitute or use generic parts. Improper repair parts could cause serious or fatal injuries. This will also protect your warranty coverage for parts replaced under warranty. Reference Number 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 Description Part No.
PAGE 10
4E236C Dayton Operating Instructions and Parts Manual Dayton Propane Construction Heater ® Repair Parts List (Continued) Reference Number ∆ ∆ ∆ ∆ ∆ ∆ ∆ ∆ ∆ ∆ ∆ Description Part No. For Model 4E236C Wire Assembly (2003-45 only) Wire Assembly (2003-45 only) Wiring Decal (DSI Control 2003-45 only) Wiring Decal (DSI Control 2003-19 only) Hose/Regulator Assembly (U.L.
PAGE 11
Dayton Operating Instructions and Parts Manual Model 4E236C Wiring Diagrams Solenoid Valve Ignitor Green Motor Terminal Board Orange Orange Blue White White White Green Power Cord Black DSI Control Black Black Blue Blue Connector Blue T Blue Black T On/Off Switch Connector Connector Thermal Figure 12 - Wiring Diagram Ignitor Black Solenoid Valve Orange Green Black Connector Green Orange Blue Direct Spark Ignitor White Blue Thermal Switch Blue White Centrifugal Switch Bla
PAGE 12
4E236C Dayton Operating Instructions and Parts Manual Dayton Propane Construction Heater ® LIMITED WARRANTY DAYTON ONE-YEAR LIMITED WARRANTY. Dayton natural gas construction heater, Models covered in this manual are warranted by Dayton Electric Mfg. Co. (Dayton) to the original user against defects in workmanship or materials under normal use for one year after date of purchase.
