Installation Guide

CAD-BND to a Refrigerator with Wrapper (WR24RTD or WR15I):

Position the refrigerator in the intended position and attach the 1.

wrapper per the instructions provided with the wrapper.

Place the three cardboard lifters from the packaging on the 2.

ground next to the refrigerator in the approximate position of the

Bend Unit (Fig. 13).

Place the Bend Unit on top of the lifters, adjacent to the refrig-3.

erator (Fig. 14).

Remove the door from the Bend Unit by removing the screw 4.

holding the rear riser bracket near the door hinge (Fig. 15). This

must be done to provide access to the mounting holes.

Secure the two together using (2) hex bolts (1/4-20 x 1/2”) 5.

through the bottom/rear set of holes in the Bend Unit into the

bottom holes in the refrigerator (Fig. 16).

Position the second refrigerator or cart on the other side of the 6.

Bend Unit and secure to the Bend Unit as in Step 5.

When the Bend Unit is secured to the two supporting structures 7.

(refrigerator or cart), re-install the door, remove the cardboard

lifters and place the solid surface on top.

Once complete the units should look like Fig. 17.8.

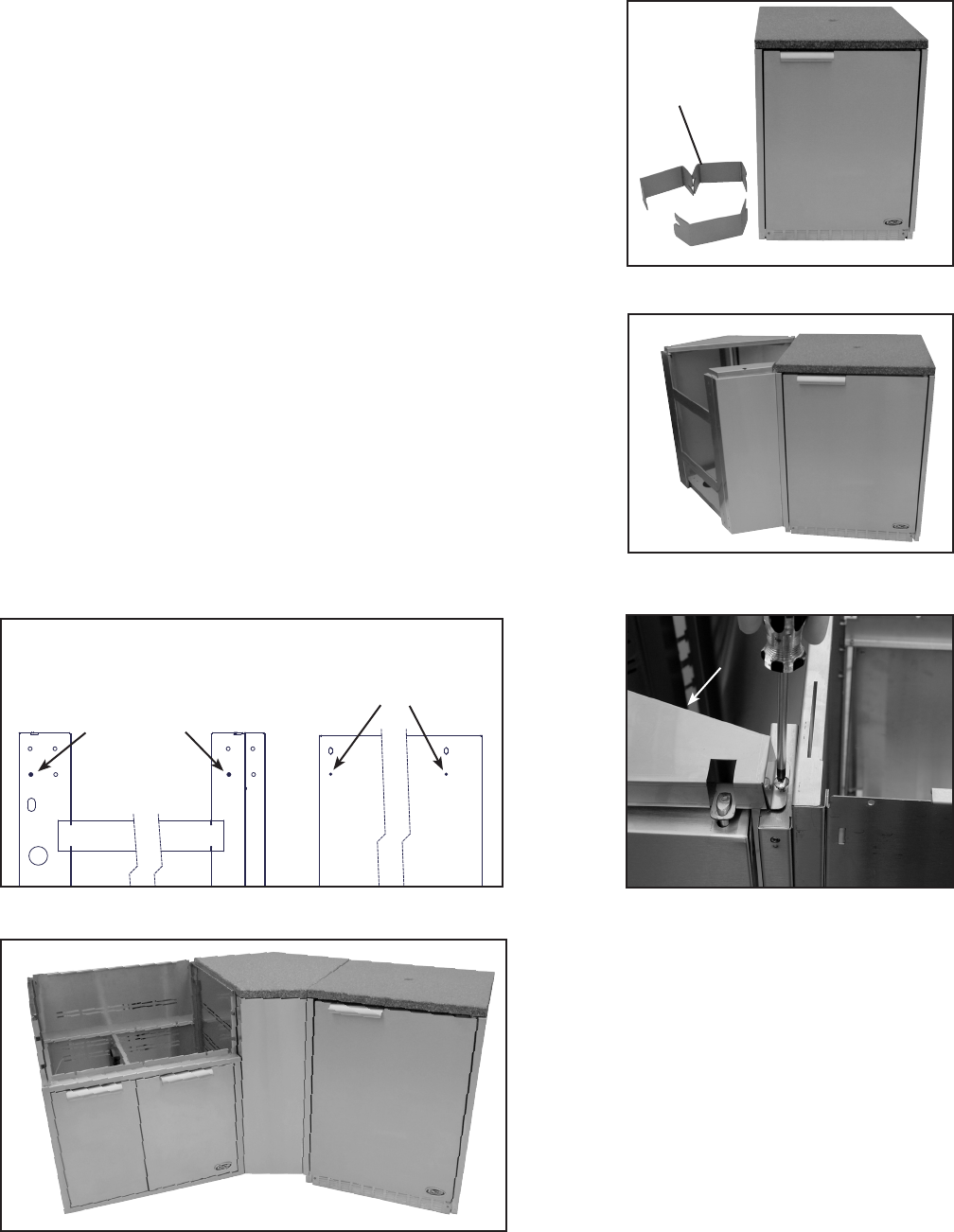

Fig. 13

Fig. 14

Fig. 15

Fig. 17

Cardboard

lifters in

intended

location of

Bend Unit

Rear riser bracket

FRONT

REAR

SIDE VIEW

FRONT

REAR

Fig. 16

BEND UNIT

REFRIGERATOR

Use shaded holes

Front

Rear
