Datasheet

112
MC
DIMENSIONS/POSITIONS
MC101-500 MC101-508
間距
Pitch 5.00mm 5.08mm
位數
Poles 2 ~ 22Poles 2 ~ 22Poles
塑膠本體
Housing Material PA 66 PA 66
壓線圈
Cage Clamp Brass, Ni Plated Brass, Ni Plated
導電夾片
Contact Phosphor Bronze, Tin Plated Phosphor Bronze, Tin Plated
螺紋
Screw Thread M3.0, Steel, Zinc Plated M3.0, Steel, Zinc Plated
電線線徑
Wire Size 12 ~ 24AWG 12 ~ 24AWG
最大緊固扭矩
Tightening Torque, Max. 7.0 Lb-in 7.0 Lb-in
環境作業溫度
Operating Temperature -40˚C to +105˚C -40˚C to +105˚C
TECHNICAL DATA
連接符合標準
Connection in acc. with standard EN-VDE
額定電流
l
N
Nominal Current l
N
16A 16A
額定橫截面
Nominal Cross Section 2.5mm
2
2.5mm
2
最大負載電流
Maximum load current 16A 16A
絕緣材料
Insulating Material PA PA
阻燃等級
,
符合
UL94
Inammability class acc. to UL94
V0 V0
額定電壓
,UL/CUL
Nominal voltage, UL/CUL
300V 300V
額定電流
,UL/CUL
Nominal current, UL/CUL
16A 16A

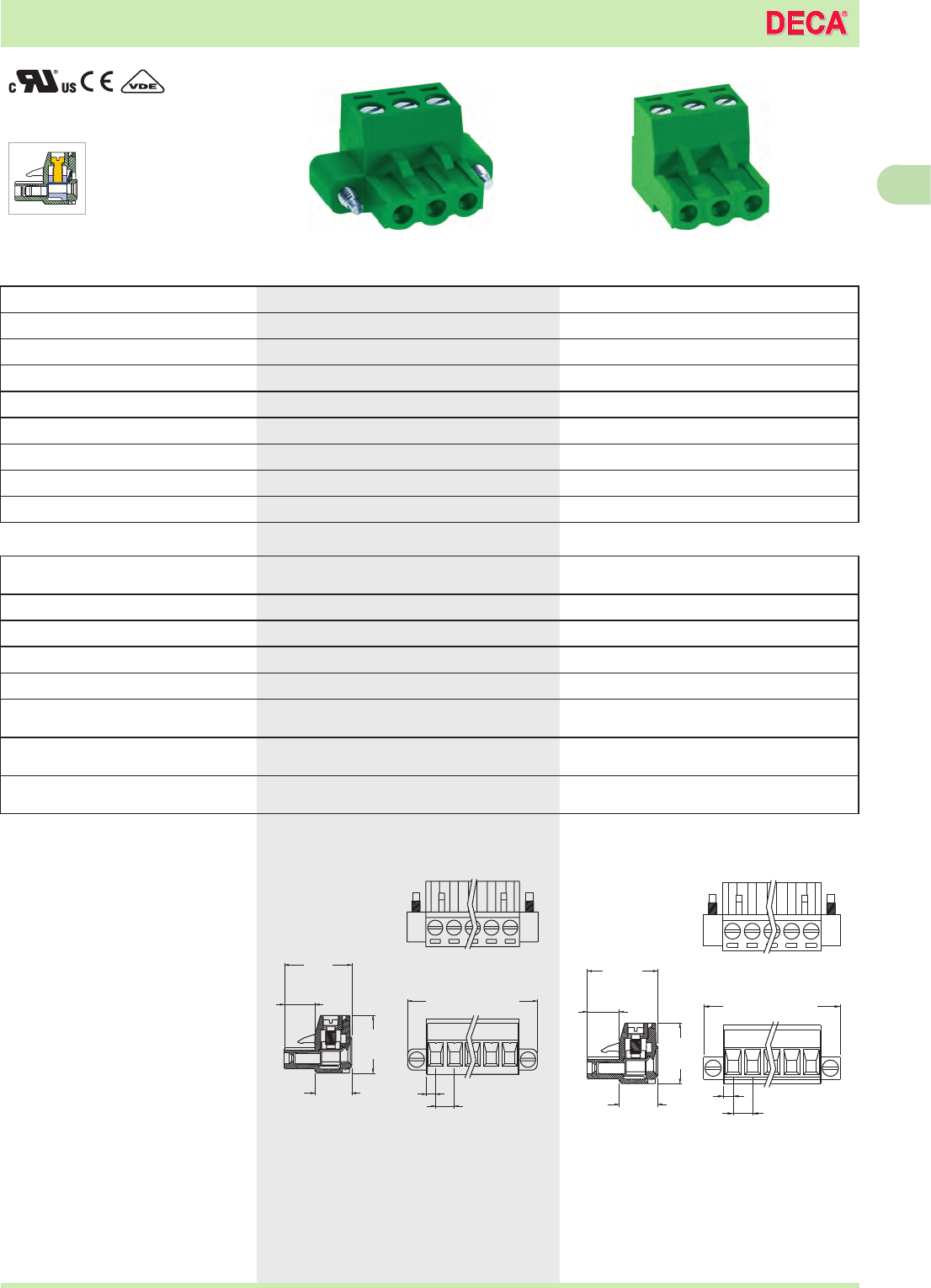

MC101 Pluggable PCB Connectors, 5.00mm, 5.08mm and 7.62mm pitches
MC101-500, 508, 762
MC101 Pluggable PCB Connector, Plug with Flanges
Note:
Screw Plating: Changes are available upon request
Cage Clamp: MC 101# : Steel
5.00xP+10.00mm
18.0
(0.709”)
8.20
(0.323”)
15.0 (0.591”)
9.80
(0.386”)
2.50
(0.098”)
5.00
(0.197”)
18.0
(0.709”)
8.20
(0.323”)
15.0 (0.591”)
9.80
(0.386”)
Note:
Screw Plating: Changes are available upon request
Cage Clamp: MC 101# : Steel
5.08xP+10.16mm
5.08
(0.200”)
2.54
(0.100”)
