Device Status: Dellâ„¢ Wireless 4350 Small Network Access Point
User's Guide
The Device Status screen displays the basic network settings for your Dell Wireless 4350 Small Network Access Point. When changes
are made to the network settings, those changes are updated on this screen. In addition, it graphically displays the current connection
status for the access point and other devices in your network. Connections between network devices are shown with a yellow arrow.
Inoperative connections are represented by one red X through the yellow connection line.
NOTE:The Dell Wireless 4350 Small Network Access Point offers two ways to check the status of your network. One is the Device
Status feature in the web configuration tool mentioned here. The other is through the Windows-based
Control Utility.

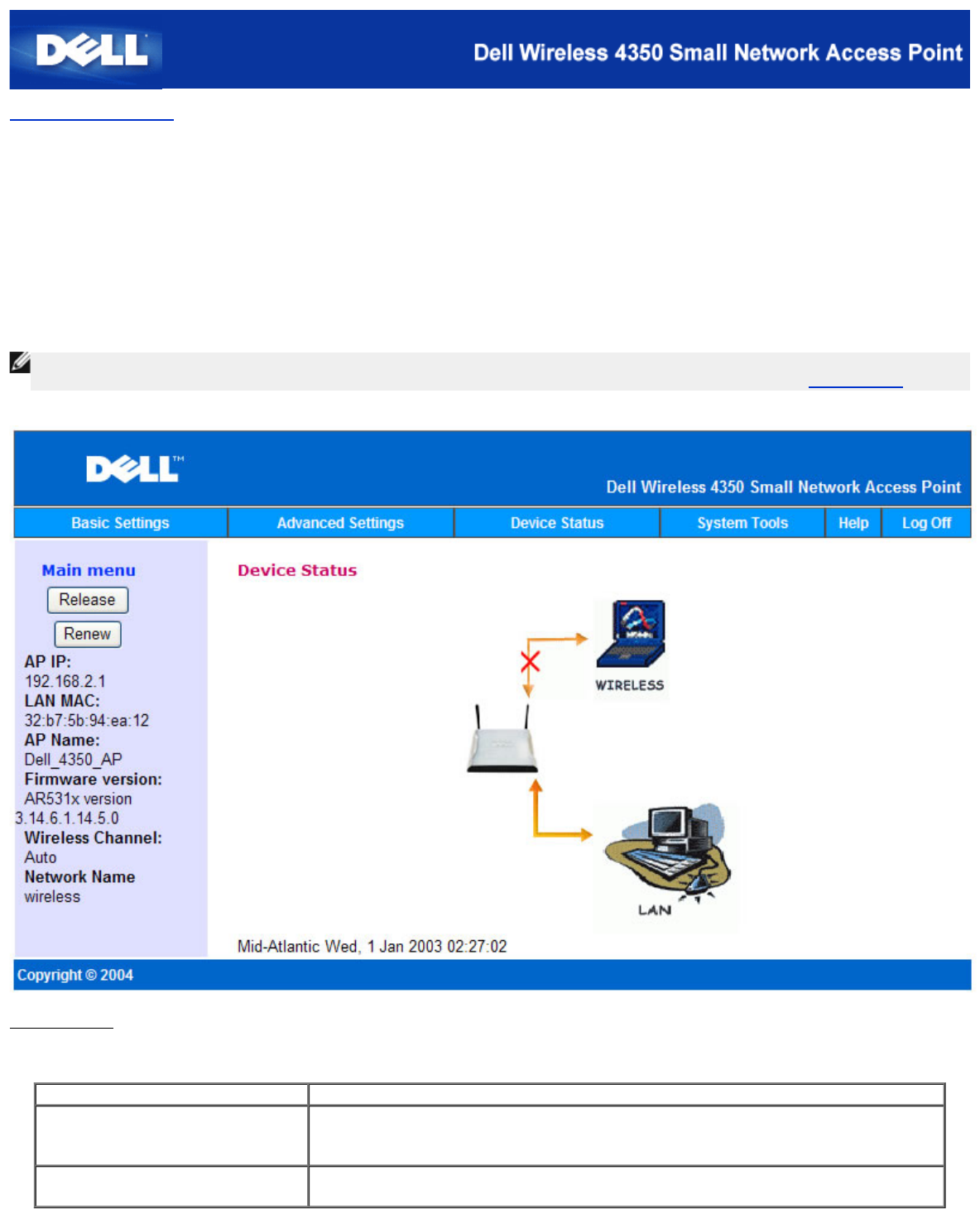

Device Status
Device Status
The following connections are displayed on the Device Status page:
Device Indication
Dell Wireless 4350 Small Network
Access Point
Shown as an active connection when the Dell Wireless 4350 Small Network Access Point
is configured and physically connected to your network, and inactive when the Ethernet
cable is disconnected from the network.
Wireless Client
Shown as an active connection when a wireless client is connected to your access point,
and inactive when there is no wireless client connected to your access point.
