28
• In general for all the devices, when defining names and provisioning parameters,
you should avoid using the following special characters: @ # $ % ^ () + = " | } { [ ] . ,
| : ; " ' ? / >
• The volume names of the Compellent Storage Array can contain only alphanumeric
characters, and the following special characters: colon (:), period (.), and dash (-).
• When discovering a POD, the value for the AssetTag cannot contain any of the
strings in the following names: Dell, Force10Switch, EqualLogicStorageArray,
VMware, or Host. For example, AssetTag cannot have a value of “Storage” as this
value matches exactly with a string in “EqualLogicStorageArray”.

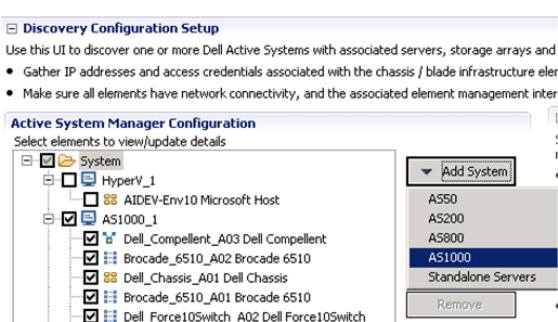

To add details for the Active System 1000 unit, click Add System. This feature displays
names for Active System 1000 components that will be discovered; for example:
• Dell Chassis
• Dell Compellent Storage Array
• Dell Force10
• Brocade Switches
Adding System Details Figure 2.
