55
Associated Orchestrations with Cluster and Standalone
Host Templates

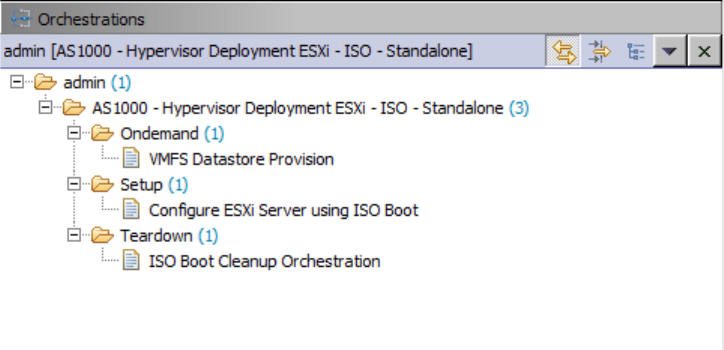

Each physical template has three orchestrations (Figure 11 13) associated with it:
On-demand Orchestrations Figure 11.
1. On-demand—VMFS Datastore Provision
This orchestration can be executed on-demand when the session is in a Running
state.
2. Setup—Configures the ESXi Servers using ISO Boot
This orchestration executes when template provisioning starts and the session is in
the Setting Up state.
3. Teardown—Cleanup-Orchestration
This orchestration executes when template provisioning start and session is in
Cleaning Up state.
Additional Storage for Cluster or Host
For additional VMFS storage or datastore need on a cluster or standalone ESXi host reserved
through the Active System Manager, you can execute on-demand orchestration from a
running session:
• On-demand orchestration is designed to create additional storage on Compellent
and add it to the Cluster as CSV.
• The additional storage will be created with the size specified in the Global
Parameter "ClusterVolumeSize".
In case different size of volume needs to be created:
a. Update the value of the global parameter
b. Save the running session
