124 Jumpers and Connectors
Riser Card Connectors
The system is available with either a PCIe riser card or a PCI-X/PCIe riser
card. See Figure 6-3 and Figure 6-4 for the location and description of the
expansion-card slots on the two riser cards.

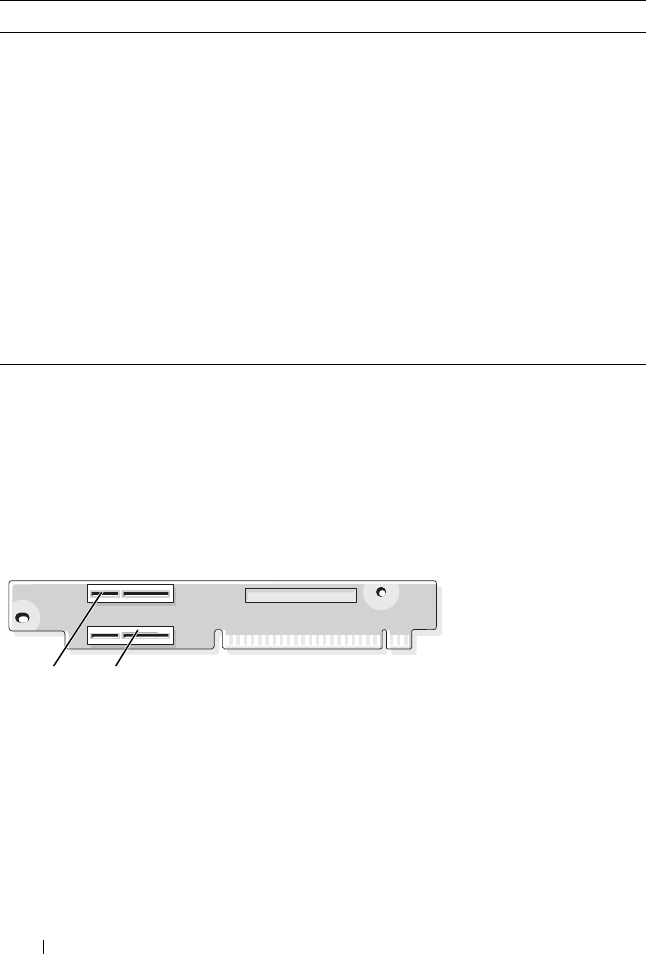

Figure 6-3. PCIe Riser Card Connectors
9 BATTERY Connector for the 3.0 V coin battery
10 SATA_1 Connector for the SATA 1 hard drive
11 SATA_0 Connector for the SATA 0 hard drive
12 PCI FAN Connector for the PCI fan
13 SATA_2 Connector for the interposer card connected to
the optical device
14 FP_CONN1 Control panel interface connector
15 HD_ACT_CARD Hard drive activity connector (expansion
controller)
16 INTRUSION_SWITCH Connector for the chassis intrusion switch
17 RISER_CONN1 Riser card interface connector
1 slot 1, PCIe x4-lane (x8-lane connector) 2 slot 2, PCIe x8-lane
Table 6-2. System Board Connectors (continued)
Item Connector Description
1 2
