Hard Drive
Removing the Hard Drive
1. Follow the procedures in Before Working On Your Computer.
2. Remove the battery.
3. Remove the back panel.

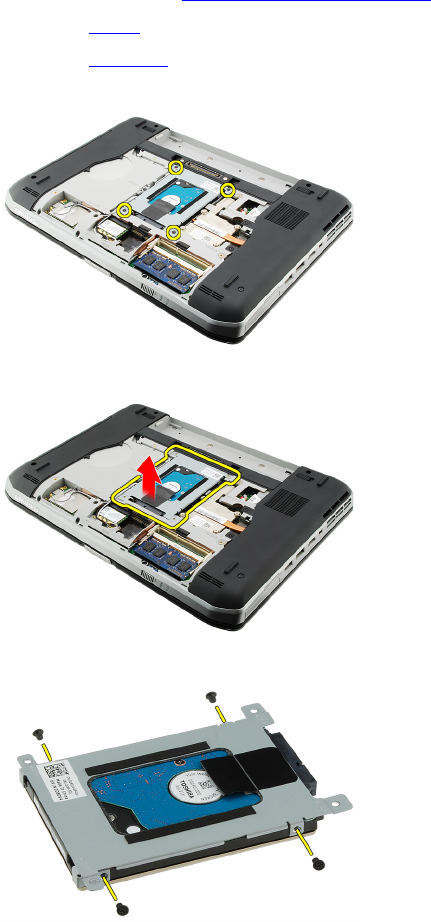

4. Remove the screws that secure the hard-drive bracket to the computer.
5. Use the tab to pull the hard-drive bracket upward and remove it from the computer.
6. Remove the hard-drive bracket screws.
