Memory

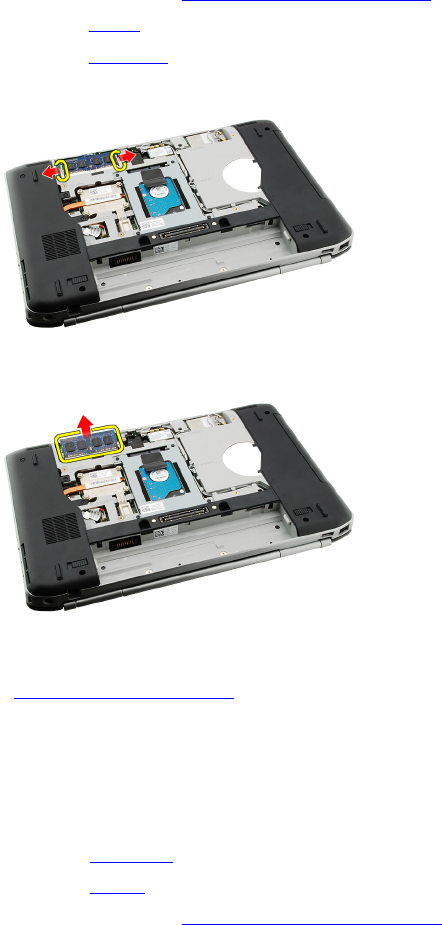

Removing the Memory Module
1. Follow the procedures in Before Working On Your Computer.
2. Remove the battery.
3. Remove the back panel.
4. Pry the retention clips away from the memory module.
5. Remove the memory module from the computer.
Related Links
Installing The Memory Module
Installing the Memory Module
1. Insert the memory module into the slot in the computer.
2. Press down the memory module until the retention clips secure the memory module.
3. Replace the back panel.
4. Replace the battery.
5. Follow the procedures in After Working Inside Your Computer.
