ExpressCard/Smart Card/PCMCIA Module

Removing the ExpressCard/Smart Card/PCMCIA Module

1. Follow the procedures in Before Working On Your Computer.

2. Remove the battery.

3. Remove the back panel.

4. Remove the keyboard trim.

5. Remove the keyboard.

6. Remove the optical drive.

7. Remove the CPU door.

8. Remove the palm rest.

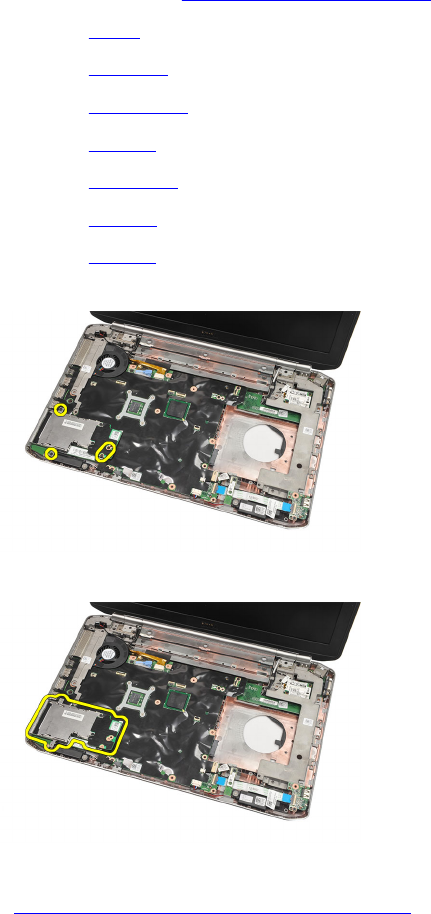

9. Remove the screws that secure the ExpressCard/Smart Card/PCMCIA module to the computer.

10. Remove the ExpressCard/Smart Card/PCMCIA module.
