Dell Networking W-
Series ClearPass Configuration Guide
23
Navigate to Switching > Network Security > Dot1x Authentication > Authentication
Under Global Parameters, choose Enable from the dropdown list in the Administrative Mode field
NOTE: The enable authentication step above was completed in the previous MAC Authentication
example.
Identify the port to be used for wired authentication with OnGuard
Under Interface Parameters, choose the port number from the dropdown list in the Interface field
The default setting when enabling 802.1x on the switch in the Admin Interface Control field is
Automode. Confirm that Automode is set
All other fields can remain default.
Repeat the above for any other ports requiring this setting.

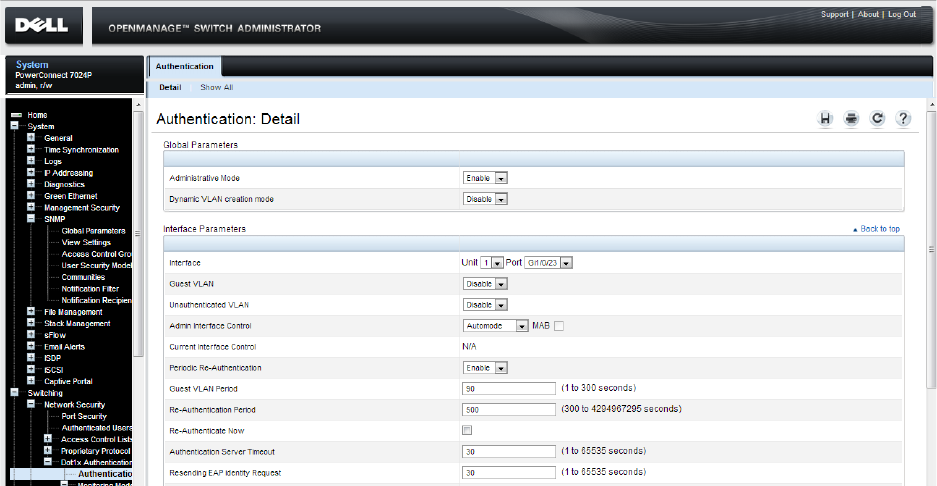

Figure 12. OnGuard 7024P Switch – Authentication Configuration
SNMP Configuration
By default, SNMPv2 is enabled on the switch and the ClearPass appliance. No changes to the default
settings are required to enable the SNMP bounce of the switch port upon an OnGuard failure action. If
the administrator requires SNMP traps for monitoring of the networks, enable SNMP and configure the
community strings per the Dell Networking 7000 Series Switch User’s Configuration Guide.
