Dell Networking W-
Series ClearPass Configuration Guide
39
Dell Networking W-ClearPass MAC Authentication Configuration
The configuration for W-ClearPass does not change from the example shown in the main body of this
document. The same service and its setup can be used for the MAC Authentication with MAB.
OnGuard posture enforcement with Dell Networking 55xx Switch
The Dell Networking 55xx Series Switch behaves in a very similar manner for 802.1x PEAP-EAP-
MSCHAPv2 authentication. The standard settings are shown in the following figure.

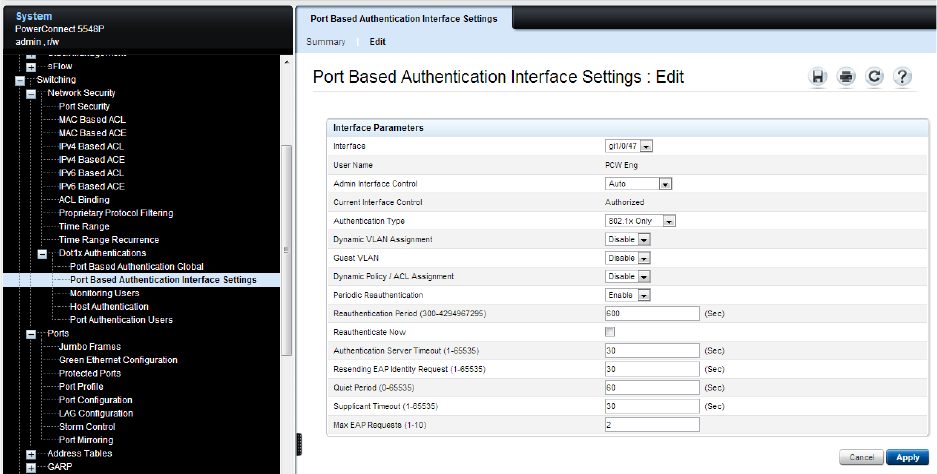

Figure 26. Appendix A, 5524P Dot1x Interface Settings, 802.1x only
Dell Networking W-ClearPass MAC Authentication Configuration
The configuration for W-ClearPass does not change from the example shown in the main body of this
document. The same service and its setup can be used for both the 802.1x Wired and Web-Auth
services.
