Closing The Blade
1. Ensure that no tools or parts are left inside the blade.
2. Align the notches in the edges of the chassis with the cover alignment pins on the inner sides of the cover.
3. Lower the cover onto the chassis.
4. Slide the cover until it clicks into position.
A properly seated cover is flush with the surface of the chassis.
Inside The Blade

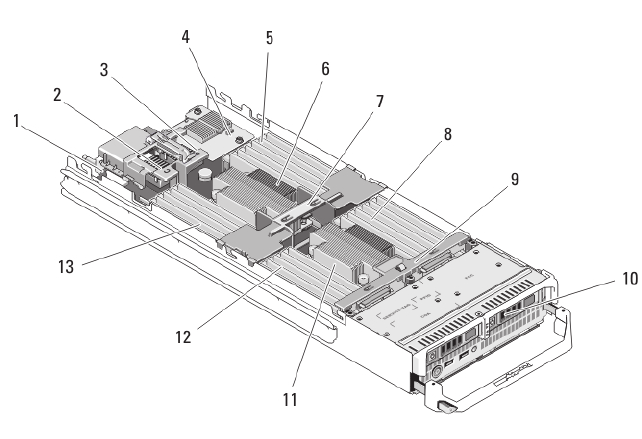

Figure 5. Inside the Blade
1. management riser card
2. optional mezzanine card 1 - Fabric C
3. optional mezzanine card 2 - Fabric B
4. network daughter card
5. memory modules (for processor 1)
6. processor 1 and heat sink
7. cooling shroud
8. memory modules (for processor 2)
9. hard-drive/SSD backplane
10. hard drives/SSDs (2)
11. processor 2 and heat sink
12. memory modules (for processor 2)
13. memory modules (for processor 1)
