6. Close the blade.
7. Install the blade in the enclosure.
8. Enter the System Setup and verify that the USB key is detected by the system.

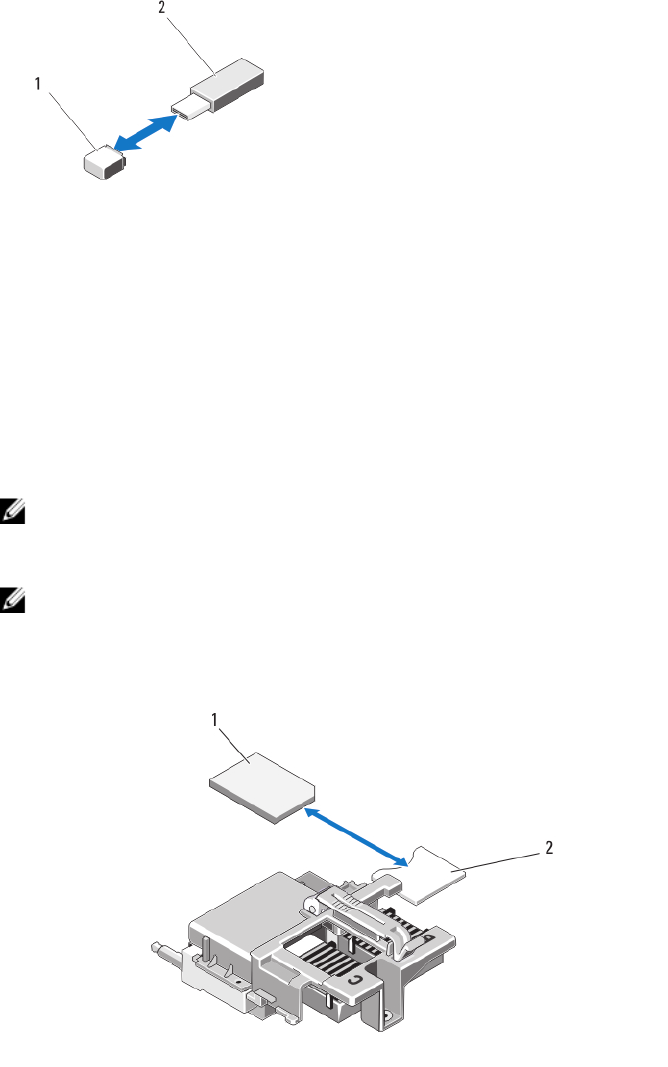

Figure 11. Replacing the USB Memory Key
1. USB memory key connector
2. USB memory key
SD vFlash Card
Replacing The SD vFlash Card
1. Remove the blade from the enclosure.
2. If installed, remove the SD vFlash card from the card slot.
NOTE: The SD vFlash card slot is near the Fabric B mezzanine card slot at the back corner of the blade.
3. To install the SD vFlash card, insert the contact-pin end of the SD card into the card slot on the VFlash media unit
with the card label side facing up.
NOTE: The slot is keyed to ensure correct insertion of the card.
4. Press inward on the card to lock it into the slot.
5. Install the blade in the enclosure.
Figure 12. Replacing the SD vFlash Card
1. SD vFlash card
