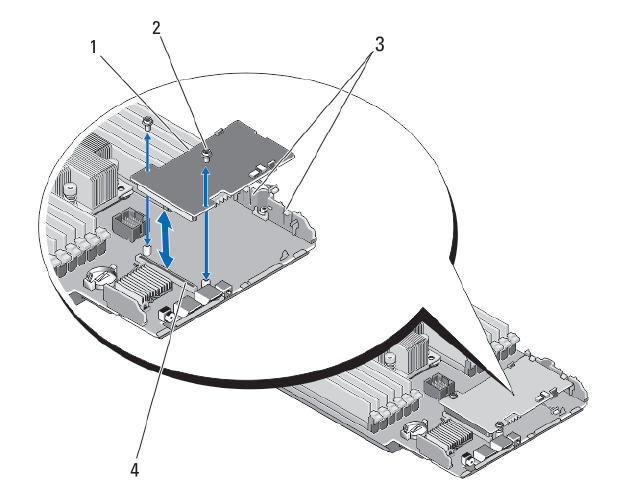

Figure 22. Removing and Installing the PCIe Extender/Storage Controller Card
1. PCIe extender/storage controller card
2. screws (2)
3. tab
4. connector
Installing The PCIe Extender Card/Storage Controller Card
1. Holding by its edges, position the PCIe extender/storage controller card so that the card-connector aligns with the
system board connector.
2. Adjust the other end of the card so that the card edge is secured under the two tabs on the plastic bracket.
3. Insert the controller card-connector firmly into the system board connector until the card is fully seated.
4. Install the two screws to secure the PCIe extender/storage controller card to the system board.
5. Reinstall the system board.
6. Install the blade in the enclosure.
