Replacing the Lower Side Panels
1 Lower the panel into the rack, inserting the back panel hook into
the back hole in the bottom of the rack frame and the front hook into
the corresponding hole in the front of the rack frame (see Figure 1-5).
2 Swing the top end of the panel towards the rack.
3 Press the panel into the rack until both latches lock into place.

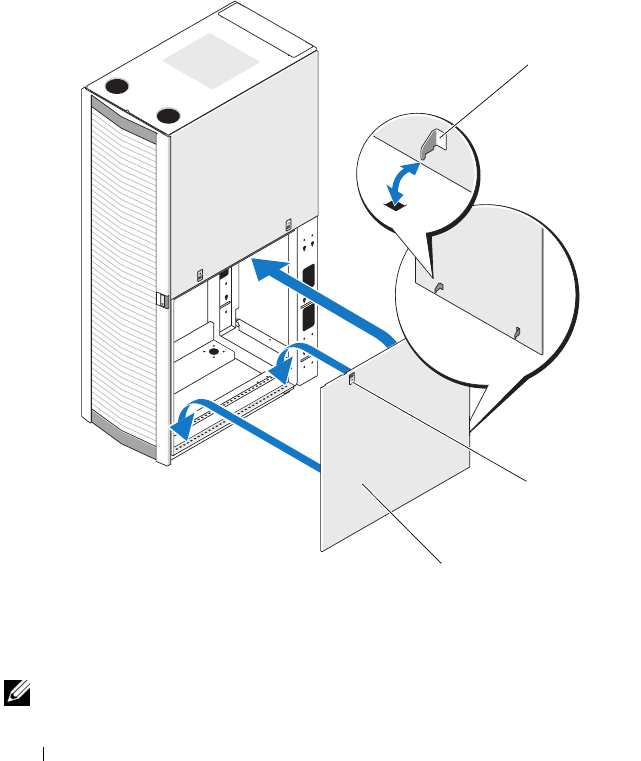

Figure 1-5. Replacing the Lower Side Panels
NOTE: The following procedures apply to extra-deep racks only.
1 panel hook (2) 2 latch (2)
3 lower side panel (2)
