i Insert the hinge pin into the hinge body.
j Insert the retention clip through the hinge so that the retention clip
is below the spring.
4 Reverse the bottom hinge body.
a Remove the Allen bolts that secure the hinge body to the rack,
and place the bolts in a safe location.
b Rotate the hinge body 180 degrees so that the hinge posts are now
on the other side of the hinge body (see Figure 1-8).
c Locate the bottom bolt holes in the right side of the rack, and use the
Allen bolts to fasten the hinge body to the right side of the rack.

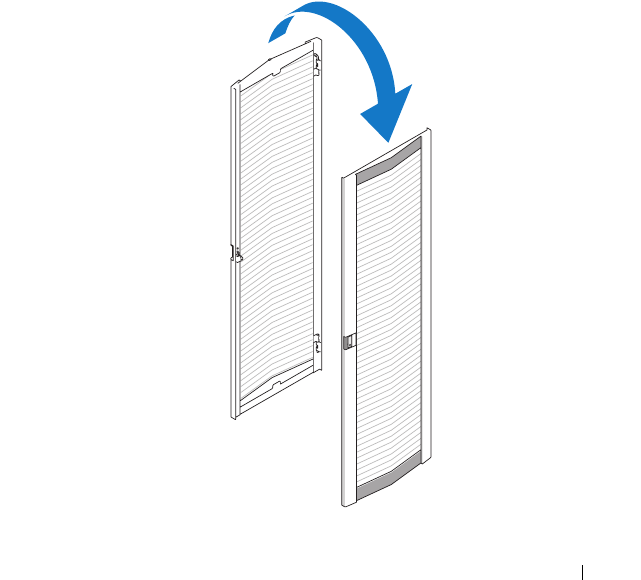

5 Rotate the front door 180 degrees so that its hinge-pin housings are on the
right side (see Figure 1-9).
Figure 1-9. Rotate the Front Door
