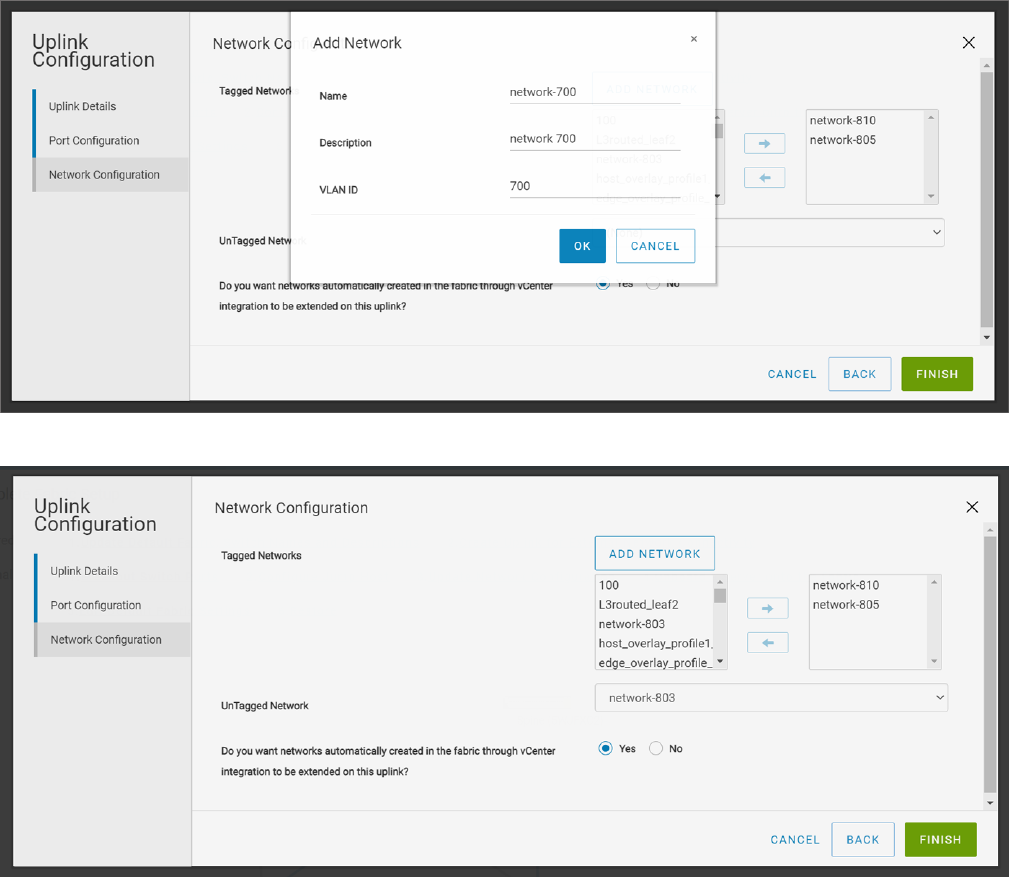

6. Select Yes or No appropriately to integrate the networks that are created automatically in the fabric through vCenter on this
uplink.
When you select Yes, the uplink is created with the type Default and the networks from the vCenter are automatically
appended to the L2 uplink during vCenter integration. For more information, see OpenManage Network Integration for
SmartFabric Services User Guide, Release 2.0.
7. Click Finish.
Configure L3 VLAN uplink
Use the following procedure to create a L3 VLAN uplink:
1. Click Home > Create Uplink for External Network Connectivity.
2. Select the Uplink Connectivity as Layer 3 and Network type as L3 VLAN.
Deploying and managing a fabric
21
