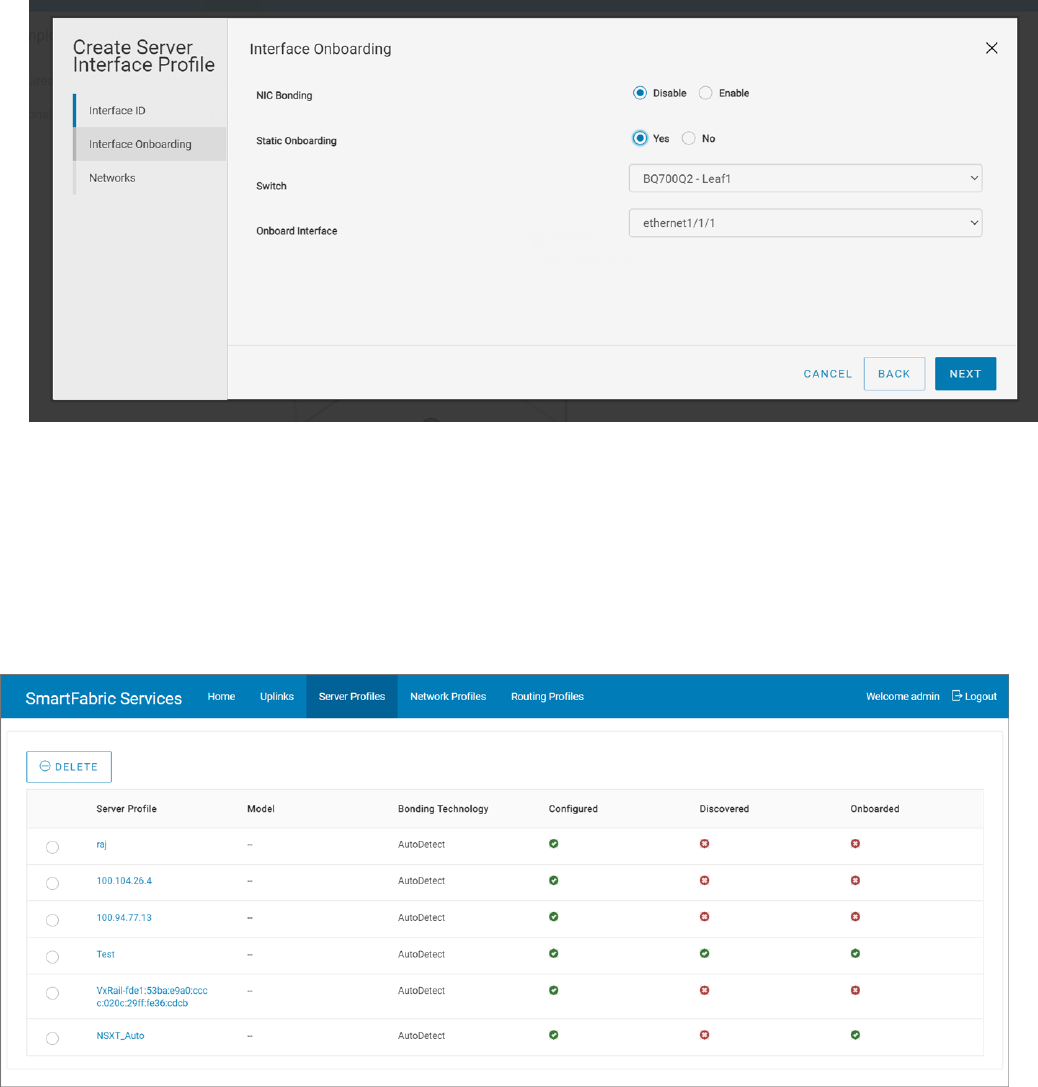

5. Assign an interface of the leaf switch and click Next.
6. Associate the networks with the server interface profile from the list or create a network or virtual network according to the
network connectivity. For more information, see Networks. This step has options to create network and virtual networks.
Manage server profiles
Manage all the server profiles configured in the fabric:
View server profile details
Click Server Profiles tab to view the list of all server profiles that are configured in the SFS. The page
displays the details of server profiles such as bonding technology, discovery of the server, and onboarding status.
Click the server profile for which you want to see the server interface profile details. The page lists all server interface IDs and
the server interface status.
To delete a server profile:
1. Select a server profile from the list and click Delete.
2. Click Ok to confirm.
