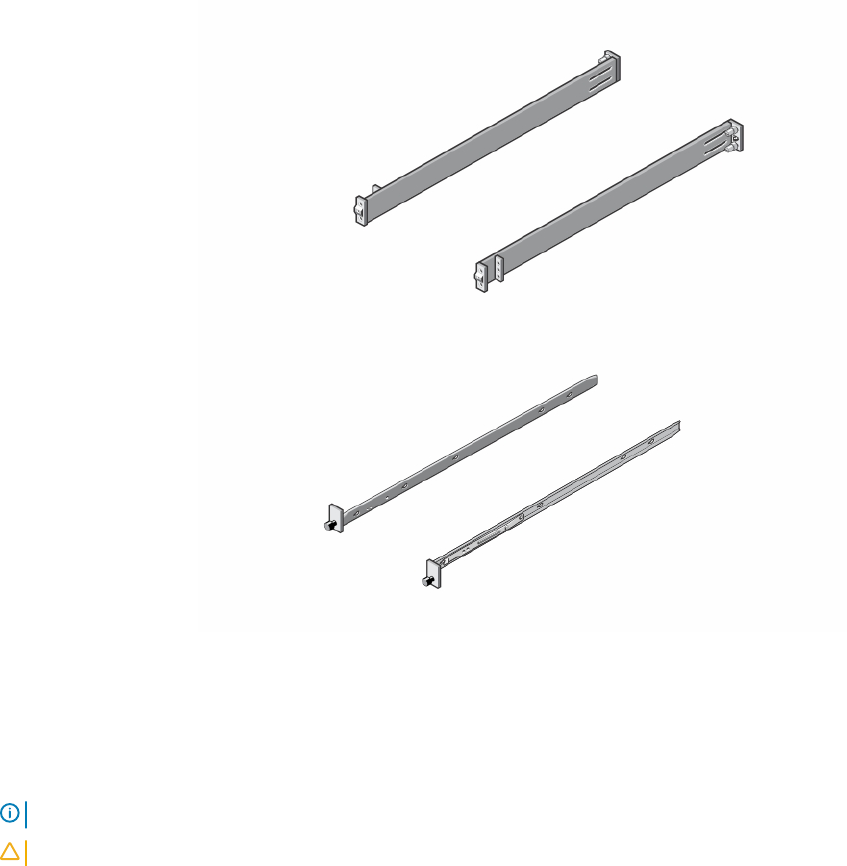

Figure 8. Separate rails
Tool-less square-hole installation
NOTE
: For more installation instructions, see the installation labels attached to the rail assembly.
CAUTION: Your switch is not NEBS Earthquake Z4-compliant if you this installation method.
1 With the ReadyRails ange ears facing outward, place one rail between the left and right vertical posts. Align and seat the back ange
rail pegs in the back vertical post ange. The following shows how the pegs appear in both the square and nonthreaded round holes:
22
S5148F-ON switch installation
