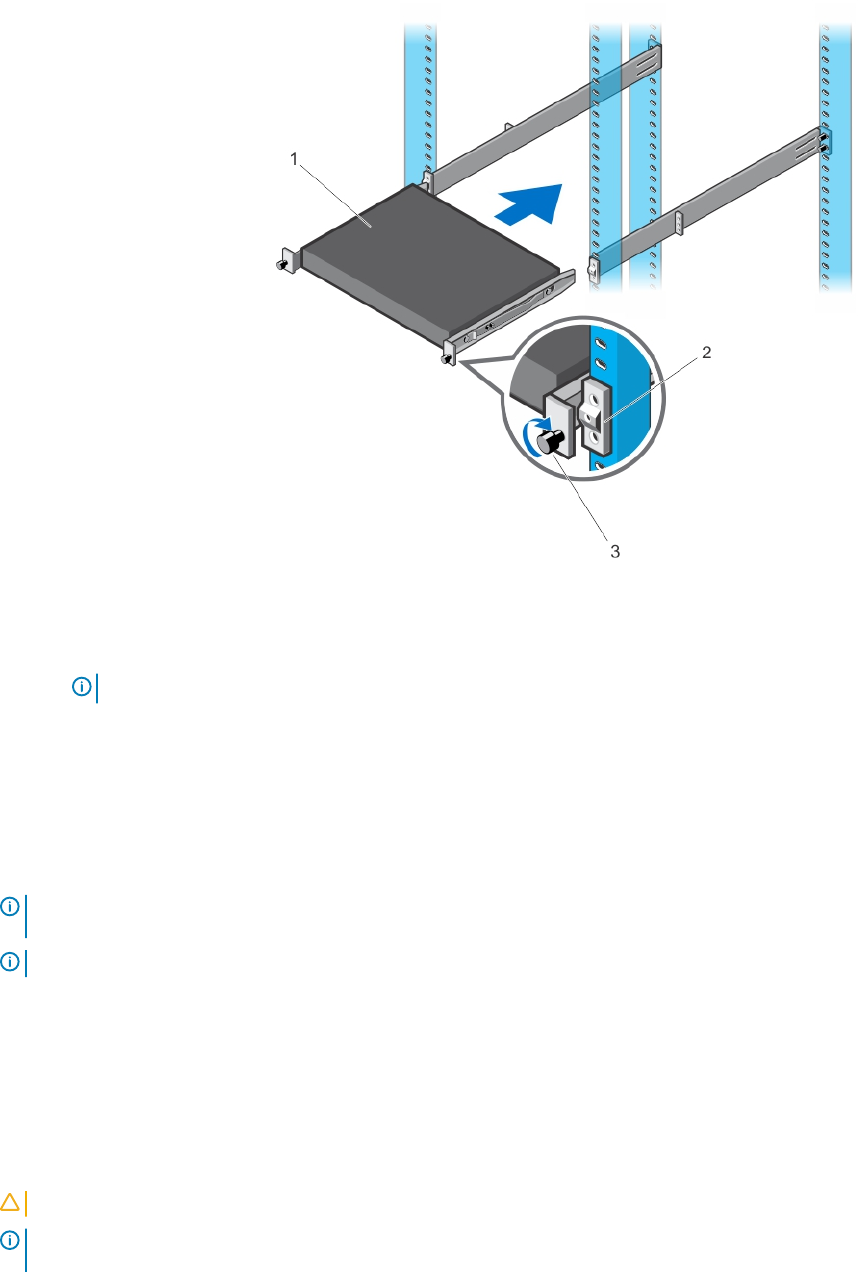

Figure 14. Front rack installation
NOTE
: Do not the use the mounted ReadyRails as a shelf or a workplace.
3 Tighten the two thumb screws and rack screws.
To remove the switch from the rack or cabinet, press in the two side-release bars on the switch at the same time and slide the switch
forward.
Ground cable
NOTE
: For AC-powered switches, although the third conductor of the AC power cord provides a ground path, Dell EMC
recommends grounding your switch with a dedicated ground wire.
NOTE: For DC-powered switches, the only way to safely ground your switch is to attach a dedicated ground wire.
Depending on the type of switch, to attach a ground cable to the switch, you need M3 or M4 screws. The switch ships with one of the
following two congurations:
• One threaded hole using an M3 screw.
• Two threaded holes using one of the two M4 screws.
In both congurations, the ground cable is not included. To properly ground the switch, Dell EMC recommends a one- or two-hole lug, M3
or M4 hole size. The grounding lugs must be a UL-recognized, crimp-type lug.
CAUTION
: Grounding conductors must be made of copper. Do not use aluminum conductors.
NOTE: Coat the one-hole lug with an anti-oxidant compound before crimping. Also, bring any unplated mating surfaces to a shiny
nish and coat with an anti-oxidant before mating. Plated mating surfaces must be clean and free from contamination.
28 S5148F-ON switch installation
