S5148F-ON switch
The following sections describe the Dell EMC S5148F-ON switch:
Topics:
• Introduction
• Features
• Physical dimensions
• LED display
• Prerequisites
• S5148F-ON switch congurations
• Luggage tag
Introduction
The S5148F-ON switch is a one rack unit, full-featured, xed form-factor top-of-rack (ToR) compact 10/25/40/50/100GbE switch. In
addition, the S5148F-ON switch has 10/25GbE links for server connections and 40/50/100GbE links for clustering—virtual link trunking
(VLT) and stacking—and uplinks to aggregation and core switches. The switch includes two hot-swappable AC or DC power supply units
(PSUs) and four hot-swappable fan units.
The S5148F-ON switch includes 54 SFP28 and QSFP28 ports for Ethernet-only congurations. The SFP28 ports support forty-eight
1/10/25GbE. The QSFP28 ports support six 40/100GbE.

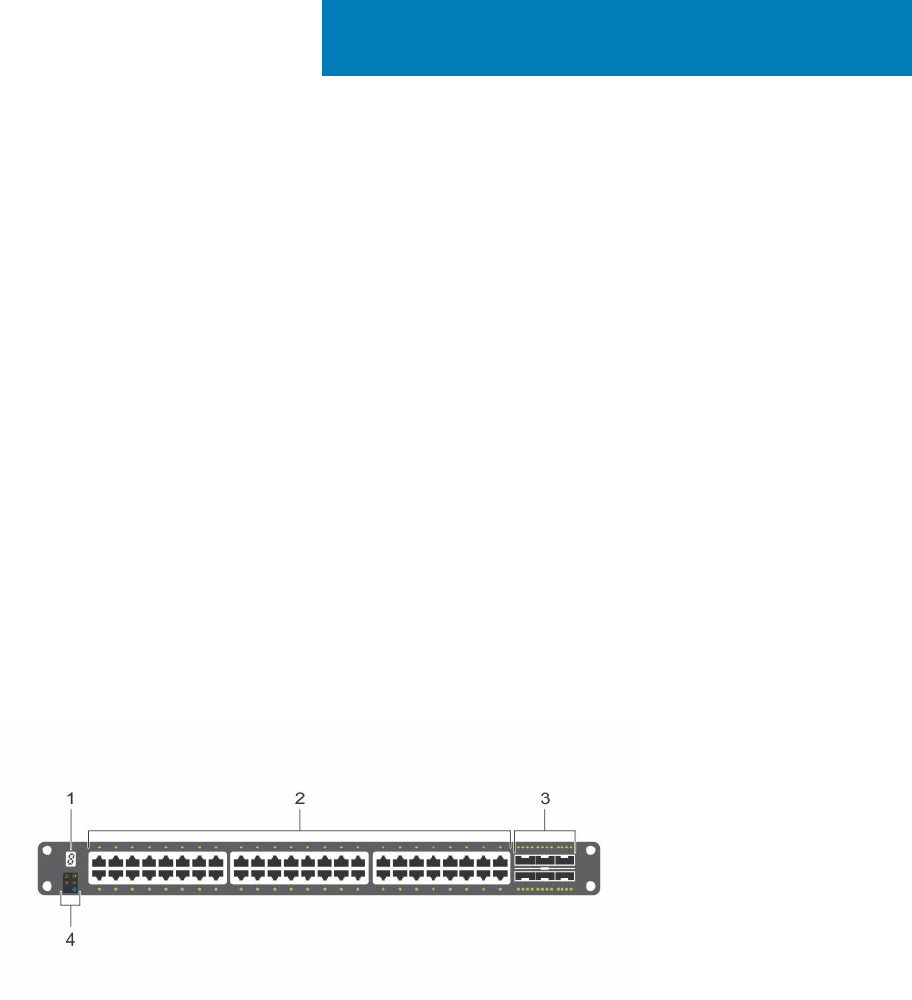

Figure 2. S5148F-ON switch I/O-side view
1
Stack ID 2 Forty eight SFP28GbE ports
3 Six QSFP28 100GbE ports 4 LED Status Icons
The S5148F-ON switch has one RJ-45 serial console port, one Micro-USB type-B console port, one 10/100/1000 Base-T Ethernet
management port, and one USB type-A port for the external storage. Management ports are located on the PSU-side of the switch.
2
