- Dell™ PowerVault™ 56F 16-Port Fibre Channel Switch Rack Installation Guide
- Rack Components
- Before You Begin
- Installing the Rack Kit
- 1. Remove the rack’s front and back doors.
- 2. Install the slide assemblies in the rack.
- Removing the Doors From a 24-U or 42-U Rack
- 1. Open the latch on the front door.
- Figure 2. Opening the 24-U Rack Cabinet Front Door Latch
- Figure 3. Opening the 42-U Rack Cabinet Front Door Latch
- Figure 4. Removing the 24-U Rack Cabinet Doors
- a. One person should grasp the top of the door to stabilize it. The other person should grasp the...
- b. The person holding the bottom of the door should press the release lever on the bottom hinge a...
- c. The person holding the top of the door should press the release lever on the top hinge and the...
- Figure 5. Removing the 42-U Rack Cabinet Doors
- Installing the Slide Assemblies in the Rack
- Installing the Switch in the Rack
- 1. Lift the switch and align its slide rails to fit inside the slide assemblies on the rack (see ...
- 2. Slide the switch into the rack until both latch assemblies snap into place.
- 3. Lift the manifold (the component that attaches to the front of the switch and align its rails ...
- Figure 9. Installing the Manifold
- Replacing the Doors
- 1. Lift the front door into position and align the hinges with the hinge insert in the rack as sh...
- 2. Slide the hinge pins into the hinge insert in the rack until the hinges lock into position.
- 3. Verify that the hinges are latched.
- 4. Close the door latch by rotating the handle counterclockwise until it stops (see Figure 2).
- 5. Repeat steps 1 through 4 to replace the back door.
- 1. Lift the front door into position and align the hinges with the holes in the rack as shown in ...
- 2. Slide the hinges into the holes in the rack until the hinge release levers lock the hinges int...
- 3. Verify that the hinges are latched.
- 4. Close the door latch by rotating the handle counterclockwise until it stops, push in the handl...
- 5. Repeat steps 1 through 4 to replace the back door.
- Index
8 Dell PowerVault 56F Systems Rack Installation Guide
2. Mark the rack’s front vertical rails with a felt-tipped marker or place self-adhesive
masking tape where the switch’s upper and lower edges will be located (see Fig-
ure 7). Make a mark or place tape on the vertical rails next to the template’s
V-shaped notches.
#$%&'%%
3. At the front of the rack cabinet, position one of the slide assemblies so that its
fixed mounting bracket flange fits between the marks or tape you placed on the
rack, marking the upper and lower edges of the template. The hooks on the
mounting bracket should align with the marks you made from the V-shaped
notches in the template.
4. Align the slide-assembly mounting-bracket flange (on the front of the slide
assembly) with the square holes in the front vertical rail (see Figure 8).

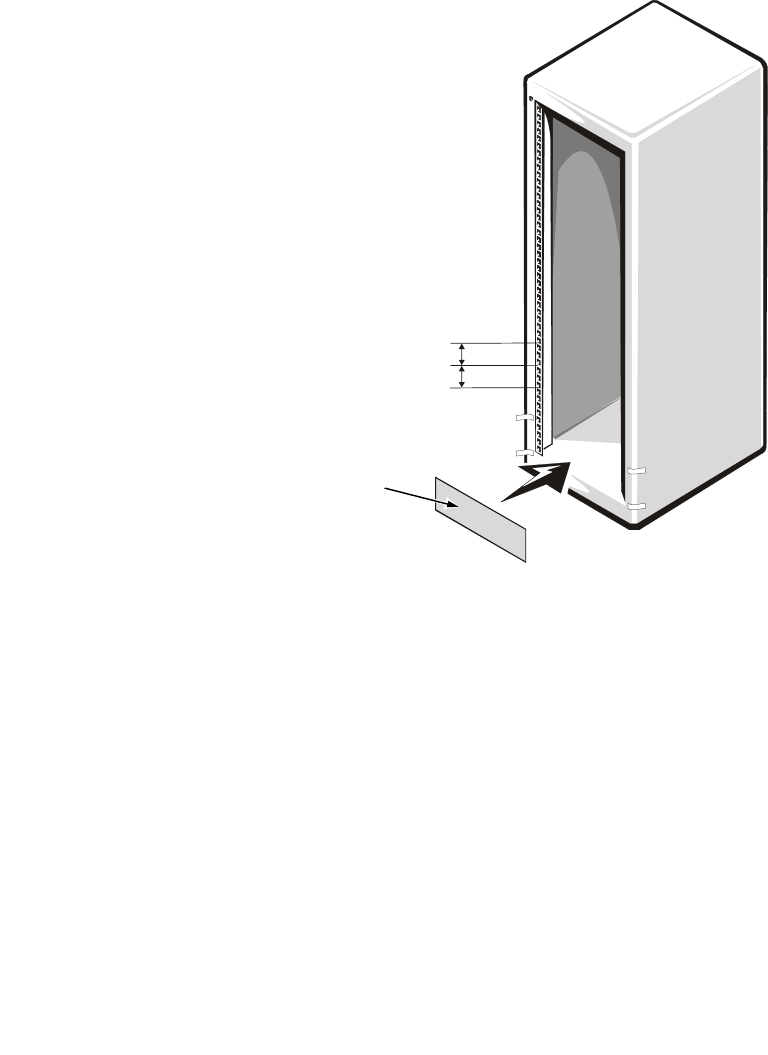

template
2 U (3.5 inches) between
slide assemblies
(drawing is not to scale)
