Storage System Hardware Owner's Manual

Installing System Components 103

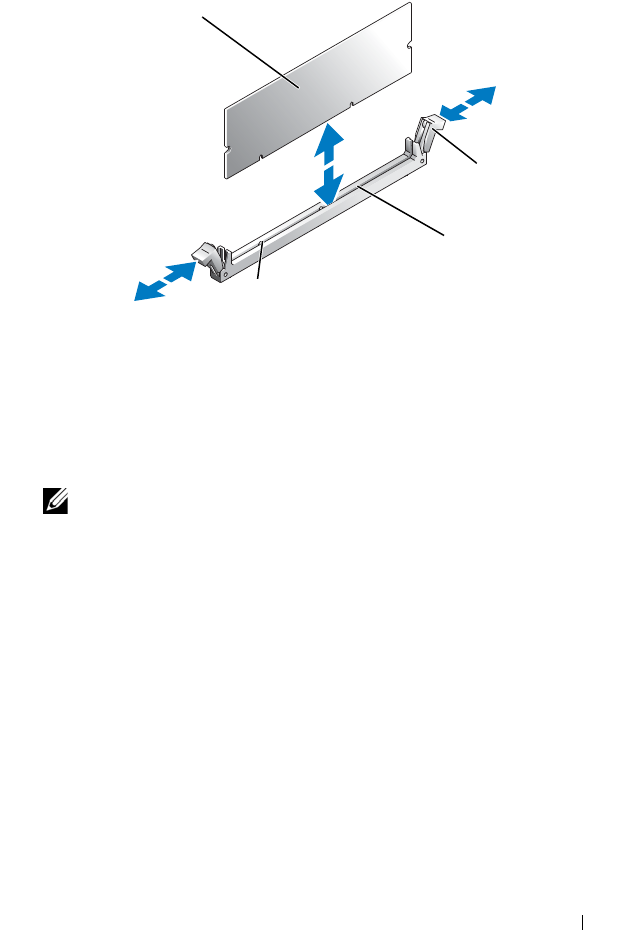

Figure 3-19. Installing and Removing a Memory Module
6 Align the memory module's edge connector with the alignment key on the
memory module socket, and insert the memory module in the socket.
NOTE: The memory module socket has an alignment key that allows you to
install the memory module in the socket in only one way.
7 Press down on the memory module with your thumbs while pulling up on
the ejectors with your index fingers to lock the memory module into the
socket.
When the memory module is properly seated in the socket, the ejectors on
the memory module socket align with the ejectors on the other sockets
that have memory modules installed.
8 Repeat step 3 through step 7 of this procedure to install the remaining
memory modules.
1 memory module 2 memory module socket ejectors (2)
3 socket 4 alignment key
2
1
3
4
