Installing System Components 73

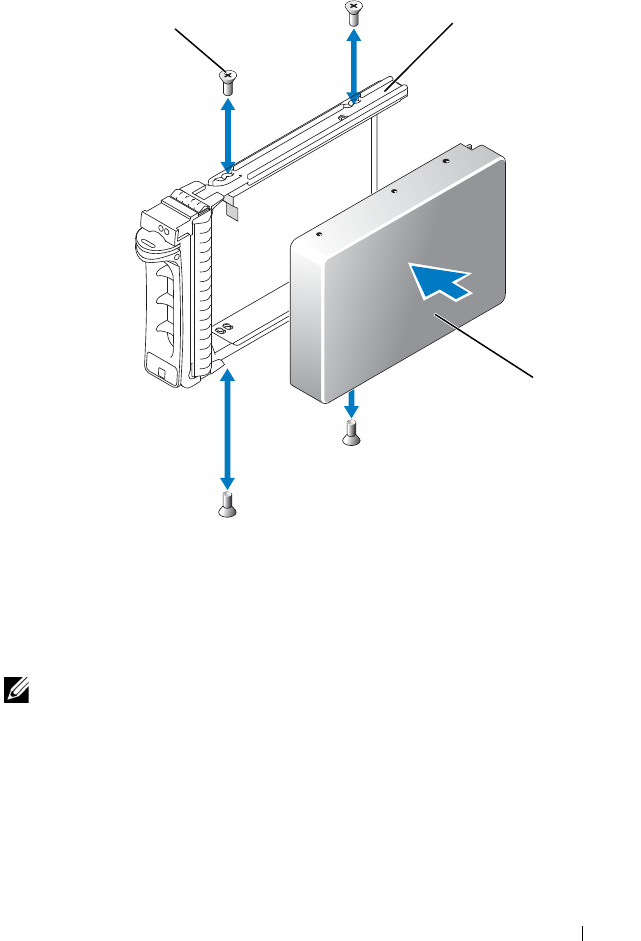

Figure 3-5. Installing a SATA Hard Drive Into a SATA Drive Carrier
Installing a SATA Hard Drive and Interposer Card Into a SATAu
Hard-Drive Carrier
NOTE: When you install a SATA hard drive into a SATAu drive carrier, you must
install an interposer card onto the back of the hard drive. The SATAu drive carrier is
labeled "SATAu" and also has marks indicating the SAS and SATA mounting screws.
1 Insert the SATA hard drive into the SATAu hard-drive carrier with the
connector end of the drive at the rear. See
Figure 3-6
.
1 screws (4) 2 SATA drive carrier
3 SATA hard drive
1
3
2
