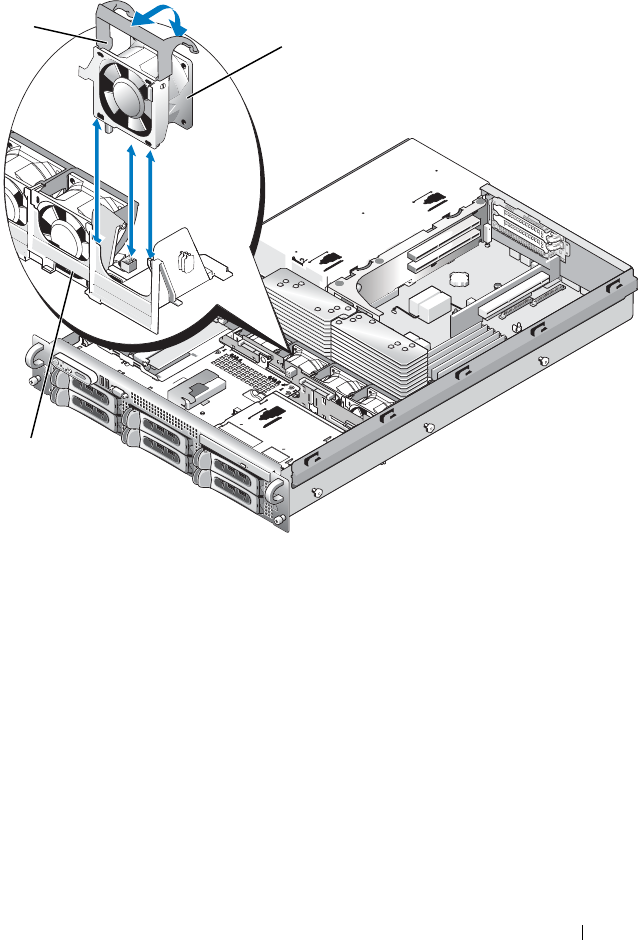

Figure 3-8. Removing and Installing a Cooling Fan
Replacing a Cooling Fan
1
Ensure that the fan handle is upright and lower the fan into its fan cage
until the fan is fully seated. Then lower the fan handle until it snaps into
place. See Figure 3-8.
2
Close the system. See "Closing the System" on page 67.
1 fan bracket 2 fan handle
3fan
2
3
1
