82 Installing System Components

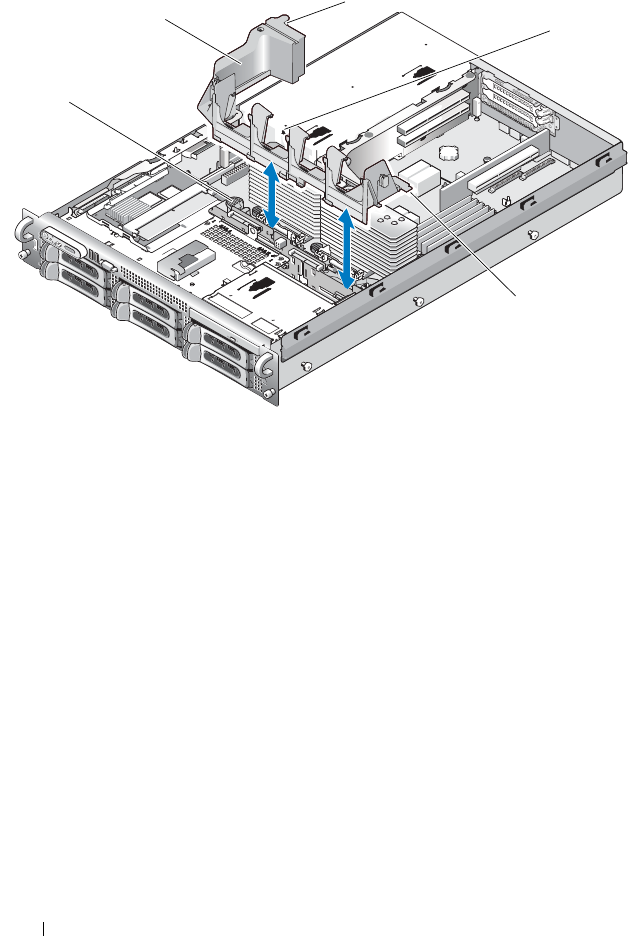

Figure 3-10. Removing and Installing the Fan Bracket
Replacing the Fan Bracket
1
Insert the two tabs on the right side of the fan bracket into the two slots on
the system board tray.
2
Gently rotate the left end of the fan bracket downward into the system
until the release latch and plastic clip fully engage.
3
Reinstall the SAS controller daughter card. See "Installing a SAS
Controller Daughter Card" on page 85.
4
Replace the fans in the fan bracket. See "Replacing a Cooling Fan" on
page 79.
5
Close the system. See "Closing the System" on page 67.
6
Reconnect the system to the electrical outlet and turn on the system and
attached peripherals.
1 release latch 2 fan bracket
3 plastic clip 4 fan bracket slot in power supply cage
5 tabs (2)
1
5
3
2
4
