84 Installing System Components

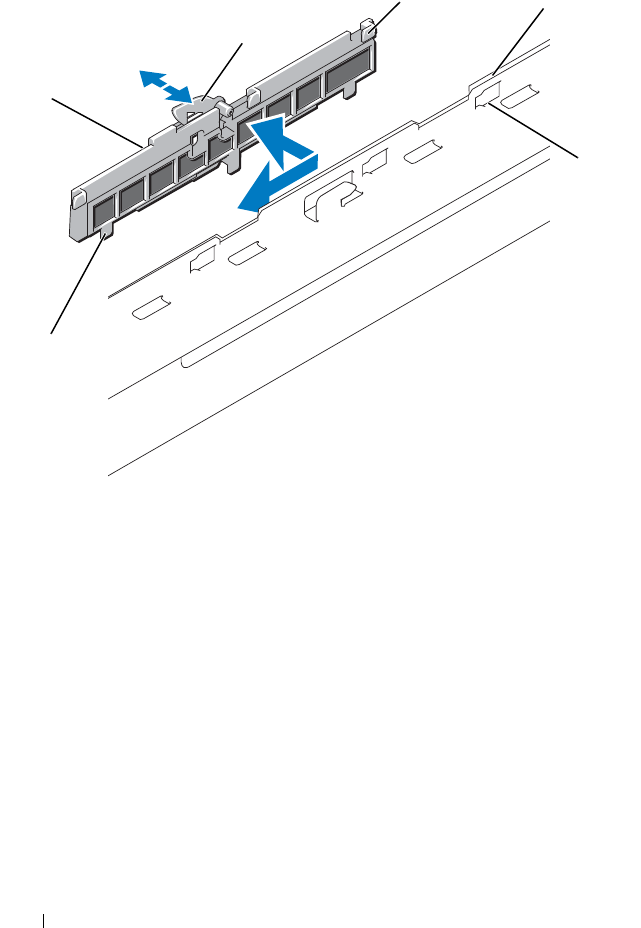

Figure 3-11. Removing and Installing the Cable Retention Bracket
Installing the Cable Retention Bracket
1
Insert the hooks and tabs of the cable retention bracket into the slots in
the chassis wall and slide the bracket back until the latch engages.
2
Install the cooling fan bracket. See "Replacing the Fan Bracket."
3
Install the cooling shroud. See "Installing the Cooling Shroud."
1 cable retention bracket 2 release latch
3 hooks (3) 4 right chassis wall
5 chassis slots (6) 6 tab (3)
2
4
1
6
5
3
