98 Installing System Components
5
Remove the cable retention bracket from the right interior wall of the
chassis. Push the blue release latch and push the bracket toward the front
of the system until the bracket detaches from the chassis slots.
6
Route the SATA cable in the cable channel in the right wall of the chassis
and replace the cable bracket over the cable. See Figure 3-18.

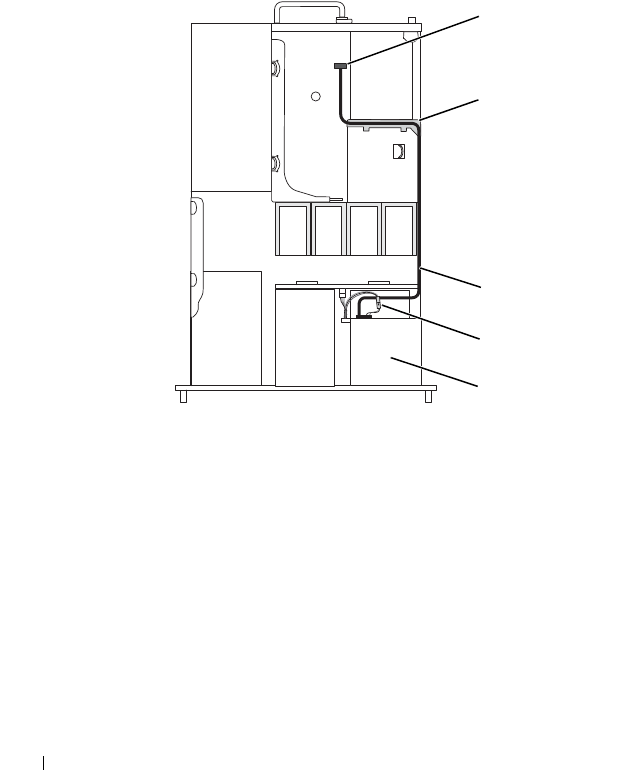

Figure 3-18. SATA Cable Routing in the PowerVault DL2000
7
Route the SATA cable along the top of the cable retention bracket to the
central riser.
8
Bend the cable behind the central riser and connect the cable to the
SATA_A connector on the system board.
1 SATA_B connector on system board 2 SATA data cable
3 system fans 4 SATA power cable
5 optical drive
2
4
1
5
3
