8. Click Finish to complete the connections wizard.
Once these steps are complete, a two-way connection between the protected and recovery sites is established.
Set Up Inventory Mappings
After making the connection between the protected and recovery sites, configure the resource, folder and network
mappings necessary between the protected and recovery sites. These mappings provide default locations and networks
used when placeholder virtual machines are initially created on the recovery site.
1. Select the Resource Mappings tab.
2. Select the Configure Mapping.
3. Select the Protected site and click Configure Mapping.

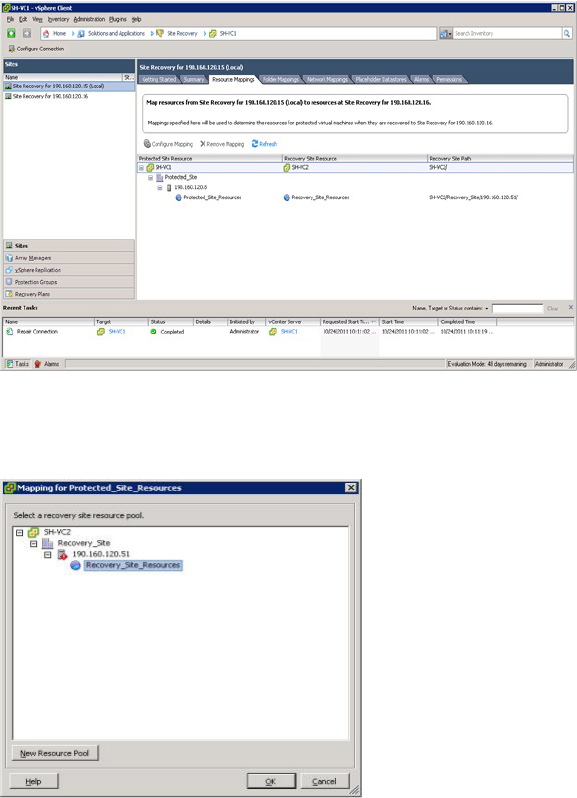

Figure 9. Resource Mapping View
The mapping selection window is displayed. Expand the inventory items and navigate to the recovery site resource
you want to map to the protected site resource.
Figure 10. Mapping Selection Window
4. Click OK to complete the mapping.
