Dell Precision Workstation R7610

Setup and Features Information

About Warnings

WARNING: A WARNING indicates a potential for property damage, personal injury, or death.

Front And Back View

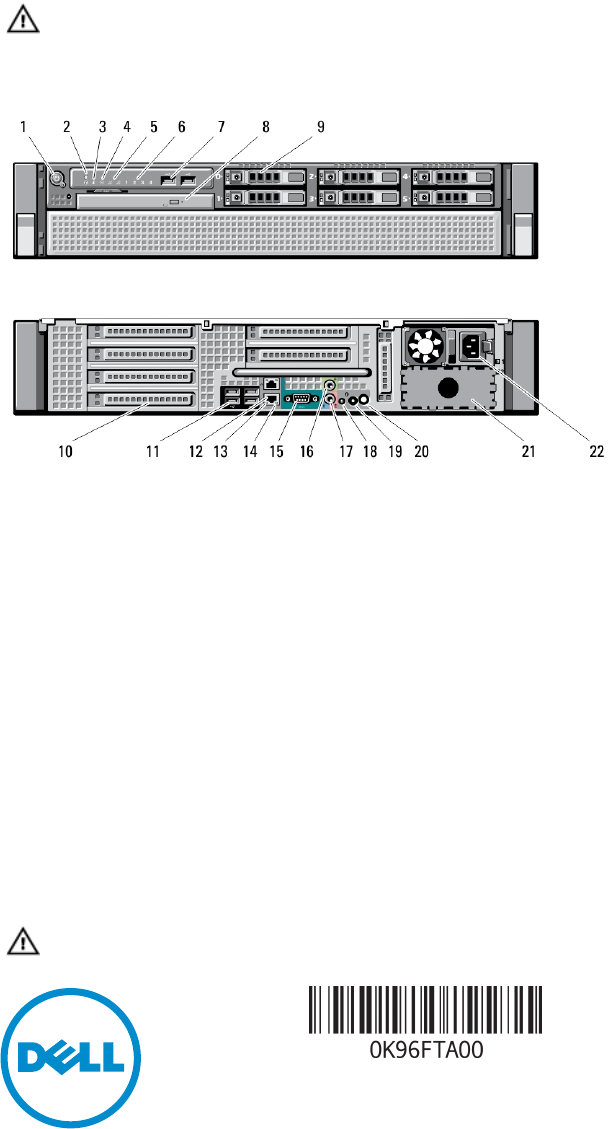

Figure 1. Front View and Back View

1. power button, power light

2. system identification button

3. system identification light

4. drive activity light

5. network link integrity lights (2)

6. diagnostic lights (4)

7. USB 2.0 connectors (2)

8. optical drive

9. hard drive bays (6)

10. expansion card slots

11. USB 2.0 connectors (4)

12. network adapter connectors (2)

13. network link integrity light

14. network activity light

15. serial port

16. line-out connector

17. line-in/microphone connector

18. system identification light

19. system identification button

20. remote system identification light connector

21. second power supply bay (optional)

22. power connector

Quick Setup

WARNING: Before you begin any of the procedures in this section, read the safety information that shipped with

your computer. For additional best practices information, see www.dell.com/regulatory_compliance

Regulatory Model: E15S

Regulatory Type: E15S002

2013 - 03
