72 Managing Your Remote Console Switch
www.dell.com | support.dell.com

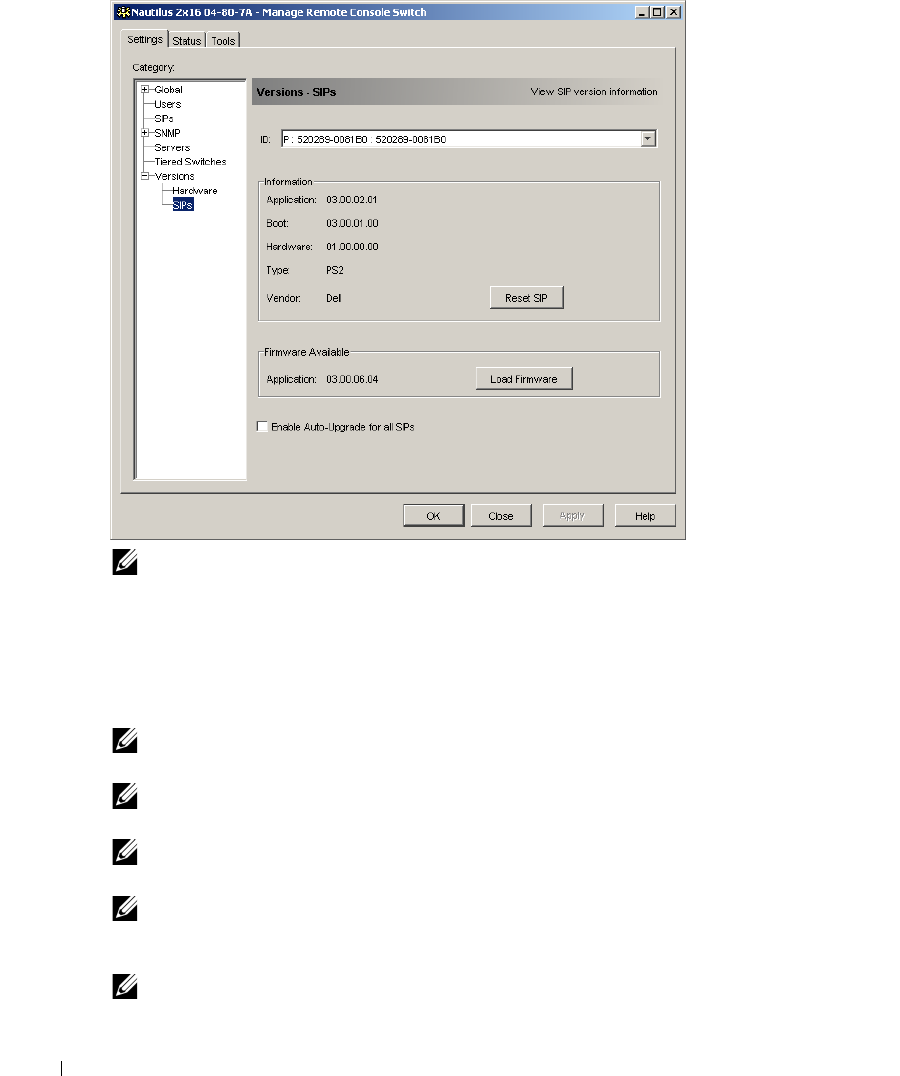

Figure 4-12. SIPs Dialog Box 2161DS-2 Console Switch
NOTE: The Vendor field, and Reset SIP button are not displayed when managing Avocent A1000R and
A2000R Remote Console Switches.
Resetting a SIP
On occasions when a tiered switch is not recognized by the Remote Console Switch, it may be
necessary to reset the SIP which connects the tiered switch to the Remote Console Switch. This
can be done using the Reset SIP button in the SIPs subcategory.
NOTE: PS/2 and USB SIPs are available. In addition the Remote Console Switch is compatible with all
Avocent AVRIQs including Sun and serial AVRIQs.
NOTE: The Reset SIPs button is only enabled when the SIP type is PS/2 and when a firmware upgrade is
not in progress.
NOTE: The Reset SIP button is not displayed when managing Avocent A1000R and A2000R Remote
Console Switches.
NOTE: This procedure is only relevant where your Remote Console Switch system involves a PS/2 SIP
attached to a tiered switch. On these occasions, it may be necessary to reset the SIP when the tiered
switch is not recognized.
NOTE: If a reset is performed, when a Remote Console Switch is connected directly to a server and not
a Cascade Switch, the mouse/keyboard may fail to respond. When this occurs, the target server requires
a reboot.
