Installation
|
Installing the UPS
To install the UPS:
1 If you plan to use Dell UPS Management Software, connect your computer to the USB port using
the supplied cable. For more information about communication options, see page 46.
2
Connect equipment to UPS
1
Connect communication cable from
computer to UPS (optional)

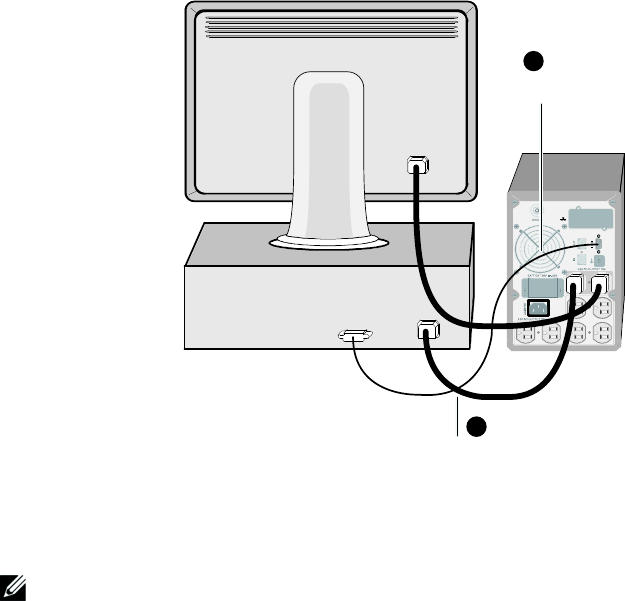

Figure 16. Typical UPS Installation (120V Model Shown)
2 Plug the equipment to be protected into the UPS output receptacles, but do not turn on the
protected equipment.
NOTE:
Verify that the total equipment ratings do not exceed the UPS capacity to prevent an overload alarm.
