AP-270-MNT-V1 Vertical Mounting Kit
Installation Guide
0511509-03 | February 2014 1
Package Content
 Vertical Mounting Bracket x 1
 M6x20 Screws x 2
 30cm Cable Tie x 1
 6 inches Hose Clamps x 2
 Installation Guide (this document)
Mounting the AP to a Wall
1. Begin by marking the mounting points on the wall in the location you have selected.
a. Put the vertical mounting bracket on the installation position against the wall.
b. Using the mounting bracket as the template, mark four mounting points on the wall.
2. Use a drill to create four holes on the four markings you created in the previous step.
3. Insert a anchor bolt into each drilled hole. Anchor bolts are not included in the mount kit.
4. Place the mounting bracket over the anchor bolts and press the bracket against the wall.
5. Place the washers and nut onto the bolt’s threaded end and tighten the nut until the mounting bracket is
firmly attached to the wall as shown in Figure 1.

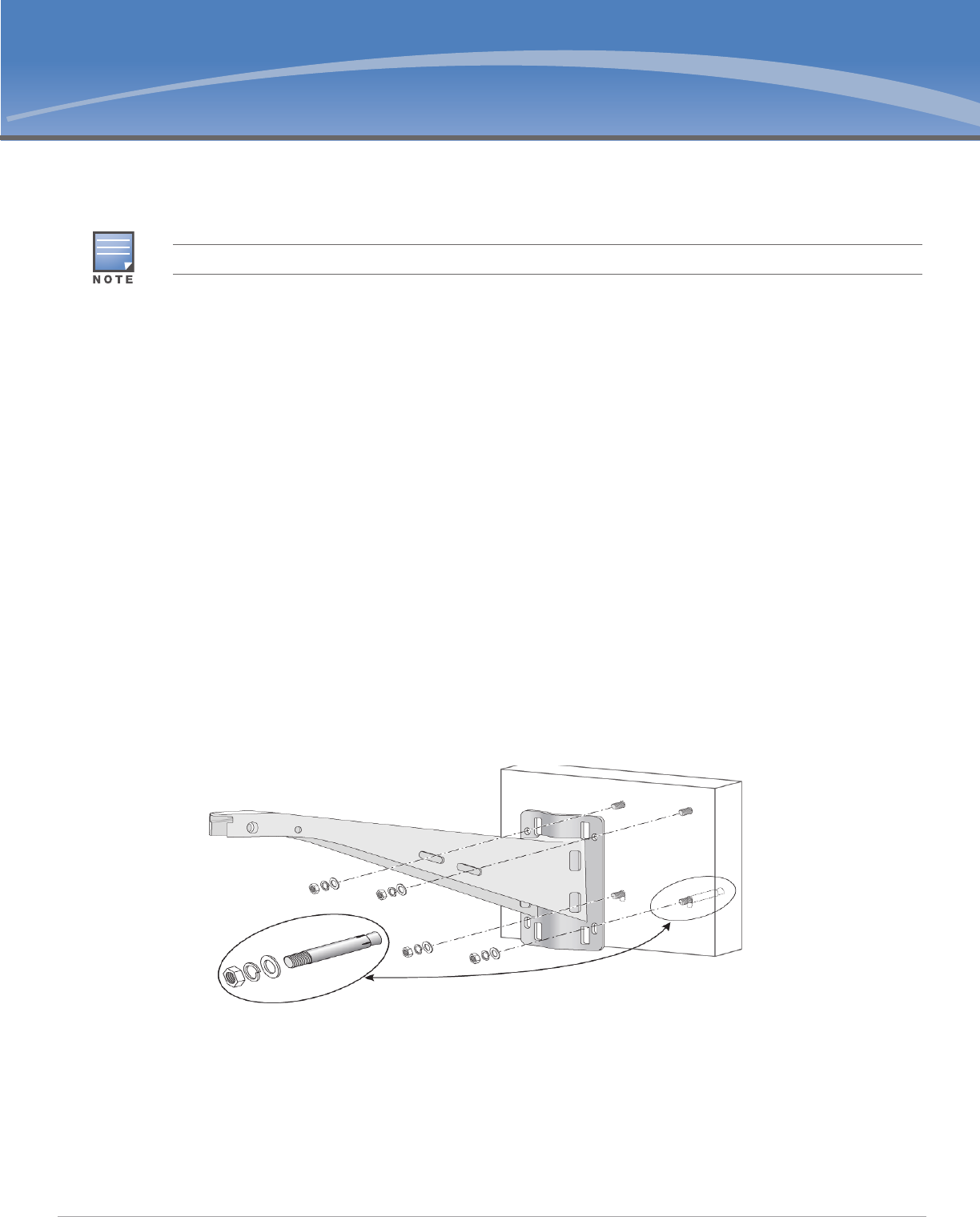

Figure 1 Attaching the Mounting Bracket to a Wall
6. Slide the holder of the AP into the opening of the bracket and use the two screws to fix the holder as
shown in Figure 2.
This mounting kit supports multiple access point (AP) models. All installation images show the 275 AP.
