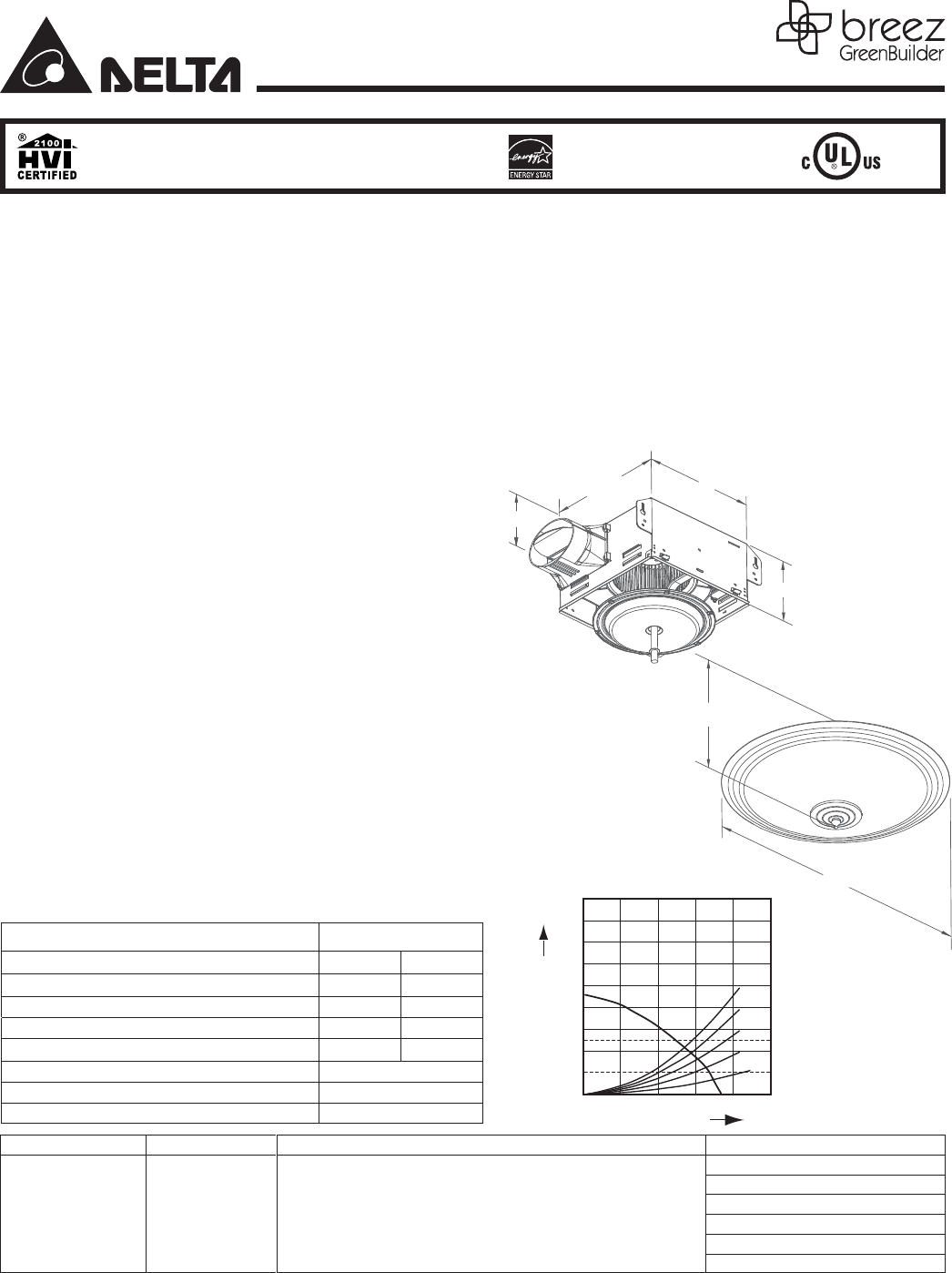

MODEL GBR100LED-DECOR
(Fan/LED Light - 100 CFM)
4” Duct (Standard):
100 CFM/1.5 Sones @ 0.1 SP, 13.0 Watts
72 CFM/2.0 Sones @ 0.25 SP, 12.5 Watts
50ft
40ft
30ft
20ft
10ft
0.90
0.80
0.70
0.60
0.50
0.40
0.30
0.20
0.25
0.10
Air Pressure (IN H
2
O)
0
0 30.0 60.0 90.0 120.0 150.0
Air Flow (CFM)
Fan Curve
Description
Beautifully designed ventilation fan with frosted glass globe and LED
light allows for quiet ventilation, low power consumption and
market-leading energy eciency. This stylish fan comes with attractive
nials in four nishes to match any décor: chrome, brushed nickel,
brushed bronze, and polished white. ENERGY STAR ® qualied, HVI, UL,
cUL certied. Can be used to comply with ASHRAE 62.2 Intermittent
Local Exhaust, and CA Title 24 requirements.
DC Motor/Blower
• Power rating of 120 volts/60Hz
• DC Brushless motor engineered to run continuously
• Motor equipped with thermal cuto fuse
• Removable with permanently lubricated plug-in motor
• Built-in soft start function to increase bearings’ life
• Automatically powers OFF when impeller is locked abnormally
• Permanently lubricated motor
• Self-compensating motor speed for intended airow when
static pressure is encountered
Housing
• Galvanized steel body
• Detachable 4” diameter duct adapter
• Built-in backdraft damper
• Easy installation
Grille
• Alabaster glass shade
• Attached to housing including grille bracket, rod, caps and
nial nuts (chrome, brushed nickel, brushed bronze, and
polished white)
Light
• 13-Watt LED lamp included
• Main light output 950 Lumens, 3000K
• Dimmable LED lighting (dimmer switch not included)
Warranty
• 3-year limited warranty
TYPICAL SPECIFICATION
Ventilation fan shall be Delta Breez model GBR100LED-DECOR;
ENERGY STAR qualied with DC brushless motor engineered to
run continuously for a minimum 70,000 hours; airow rating of
100 CFM and loudness rating of 1.5 Sones at 0.1 static pressure as
certied by the Home Ventilating Institute (HVI); power consumption
of 13.0 Watts with eciency rating of 7.6 CFM/Watt at 0.1” static
pressure; fan features motor lock protection and self-compensating
motor speed for intended airow when static pressure is encountered.
UL and cUL listed for tub/shower enclosure when used with
GFCI-protected branch circuit wiring.
LED Main Light (Watt) 13
GBR100LED-DECOR 4” Duct (Standard)
Static Pressure (inches w.g.) 0.1 0.25
Air Flow (CFM) 100 72
Sones 1.5 2.0
Power Consumption (Watts) 13.0 12.5
Energy Eciency (CFM/Watt) 7.6 5.7
Current (Amps) 0.32 Max
Power Rating (V/Hz) 120 / 60
4 ⁄"
14"
8 ¼"
4"
5 ¾"
8"
